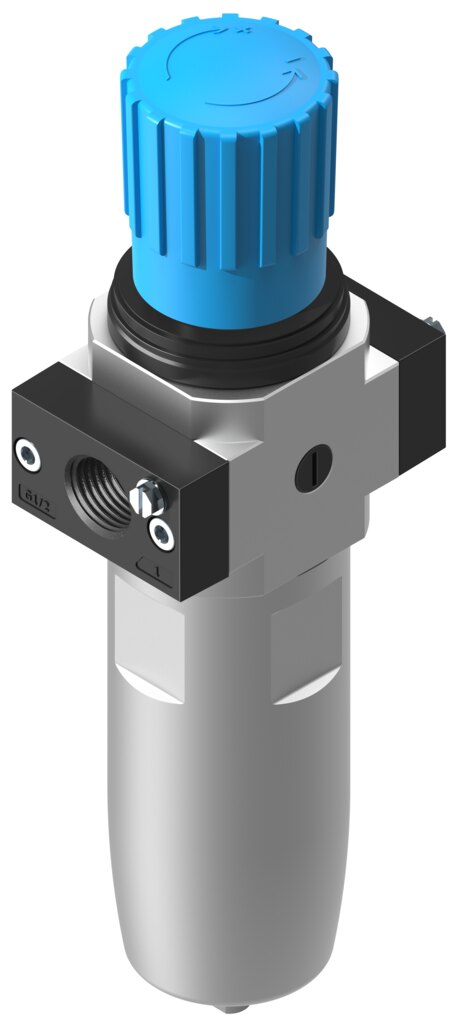

Filter regulator ATEX 0.5 to 12 bar G1/2 5 µm without pressure gauge LFR-1/2-D-5M-O-MIDI-T3-EX4 - Festo 5271796
Filtering and pressure regulation in one unit, approved for hazardous areas: the LFR-1/2-D-5M-O-MIDI-T3-EX4 regulates from 0.5 to 12 bar, filters at 5 µm and is marked II 2G and II 2D. A wrought aluminium metal bowl, CRC 3, G1/2 connection and an ambient range of -40 to 80 °C make the LFR-1/2-D-5M-O-MIDI-T3-EX4 fit for harsh environments.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Festo filter regulator LFR-1/2-D-5M-O-MIDI-T3-EX4: pressure regulation range 0.5 to 12 bar, grade of filtration 5 µm, standard nominal flow 2,600 l/min.
Benefits
- 5 µm grade of filtration, air purity class at output [6:8:4] to ISO 8573-1:2010
- Pressure regulation range 0.5 to 12 bar, max. pressure hysteresis 0.2 bar, input pressure up to 20 bar
- Standard nominal flow rate 2,600 l/min to DIN 1343
- Manual rotary condensate drain, bowl for max. 42 ml of condensate
- Gauge port G1/4 prepared, display selectable as required
- Rotary knob with detent, set pressure stays fixed
Applications
The LFR-1/2-D-5M-O-MIDI-T3-EX4 is approved for Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX). In the hazardous area the LFR-1/2-D-5M-O-MIDI-T3-EX4 is rated for an ambient temperature of -40 to 80 °C, and Festo specifies inert gases as operating medium. The LFR-1/2-D-5M-O-MIDI-T3-EX4 is mounted with accessories, mounting position vertical ± 5°. Once the LFR-1/2-D-5M-O-MIDI-T3-EX4 has run on lubricated air, lubrication is required for all further operation.
Technical data
| Feature | Value |
|---|---|
| Type | LFR-1/2-D-5M-O-MIDI-T3-EX4 |
| Festo part number | 5271796 |
| Size | Midi |
| Series | D |
| Actuator lock | rotary knob with detent |
| Mounting position | vertical ± 5° |
| Grade of filtration | 5 µm |
| Condensate drain | manual, rotating |
| Design | filter regulator without pressure gauge |
| Max. condensate volume | 42 ml |
| Bowl guard | integrated as metal bowl |
| Pressure gauge | prepared for G1/4 |
| Operating pressure | 1 to 20 bar |
| Pressure regulation range | 0.5 to 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 2600 l/min (to DIN 1343) |
| CE marking (see declaration of conformity) | to EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | to UK Ex regulations |
| Explosion protection certification outside the EU | EPL Gb (GB) |
| Explosion protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Type of ignition protection, gas | Ex h IIC T6 Gb X |
| Type of ignition protection, dust | Ex h IIIC T85°C Db X |
| Ex ambient temperature | -40 to 80 °C |
| Operating medium | inert gases |
| Note on operating and pilot medium | lubricated operation possible (then required for all further operation) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -40 to 80 °C |
| Air purity class at output | compressed air to ISO 8573-1:2010 [6:8:4], inert gases |
| Medium temperature | -40 to 80 °C |
| Ambient temperature | -40 to 80 °C |
| Product weight | 1400 g |
| Type of mounting | with accessories |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Note on materials | RoHS-compliant |
| Housing material | die-cast zinc |
| Bowl material | wrought aluminium alloy |
| Weight | 1.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | LFR-1/2-D-5M-O-MIDI-T3-EX4 |
| EAN | 4052568422486 |
| Zolltarifnummer | 84811005 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Die-cast zinc |
| Behälterausführung | Metall |
| Thread | G 1/2 |
| Size BG | Midi |
| Control range max. [bar] | 12 |
| Flow rate [l/min] | 2600 |
| Filter grade [µm] | 5 |
| Druckregelbereich [bar] | 0,5-12 |
| Medientemperatur [°C] | -40 bis 80 |
| Betriebsdruck max [bar] | 20 |
| Pneumatic connection | G1/2 |
| Temperaturbereich | -40-80 °C |
| Temperature (max.) | 80 |
