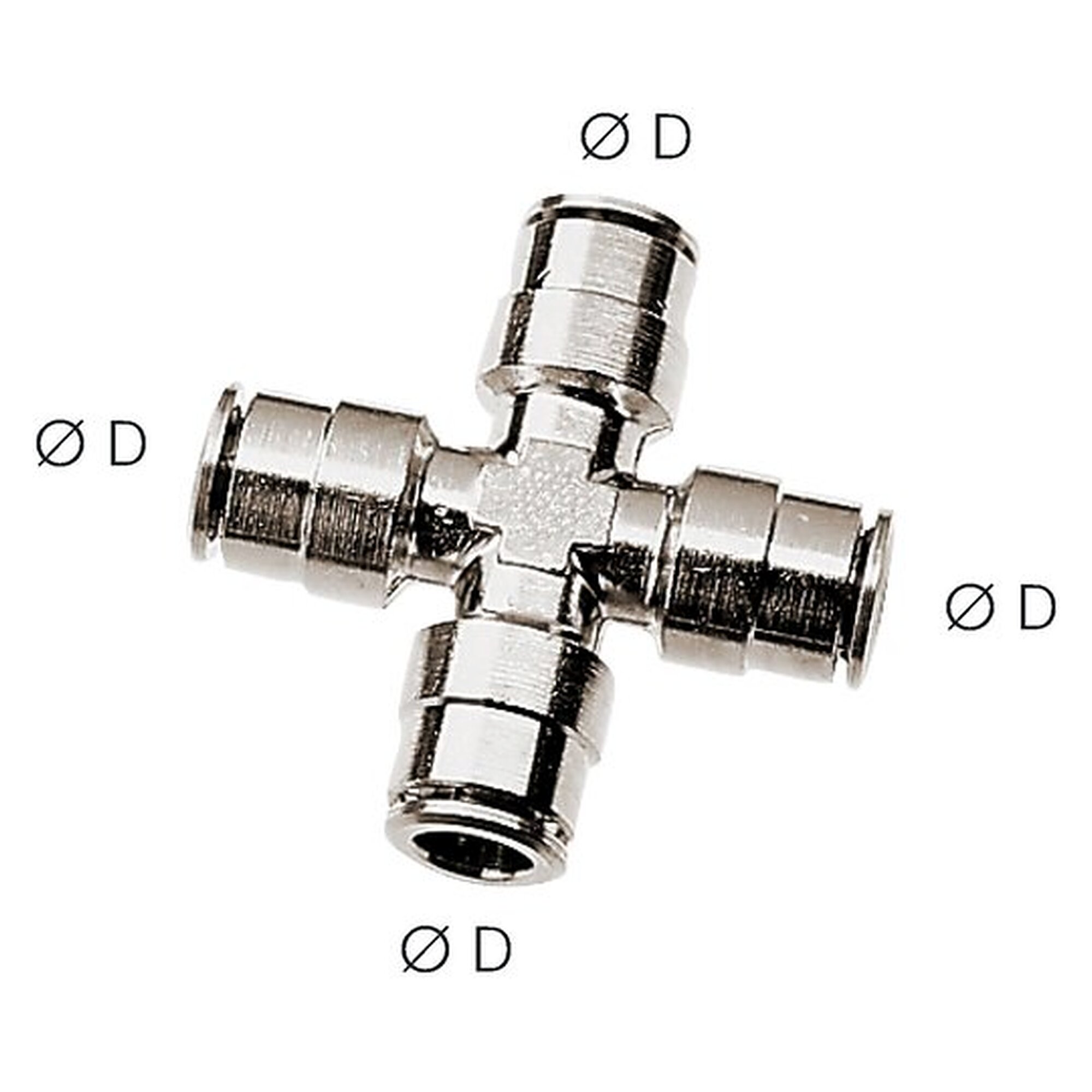

Push-in fitting, cross design, tube 10 mm, nickel plated brass, -20 bis +70 °C

The push-in fitting connects a tube of 10 mm outside diameter and the continuing line. The operating pressure reaches from -0.95 bar to 15 bar. The cross design distributes the medium to three outlets.

Benefits

• With tube diameter 10 mm the size is fixed, so no reworking of the line is required
• The operating pressure from -0.95 bar to 15 bar is released for this size
• The temperature range from -20 °C to +70 °C covers cold installation and warm machine surroundings
• Nickel plated brass as material covers the released range from -20 °C to +70 °C

Technical data

Applications

Pneumatic cylinders and valve terminals, control air lines inside the control cabinet, workshop distribution and service units, compressed air installation on machines and plants.

Standards and conformity

Only silicone free seals and lubricants are used during assembly.
