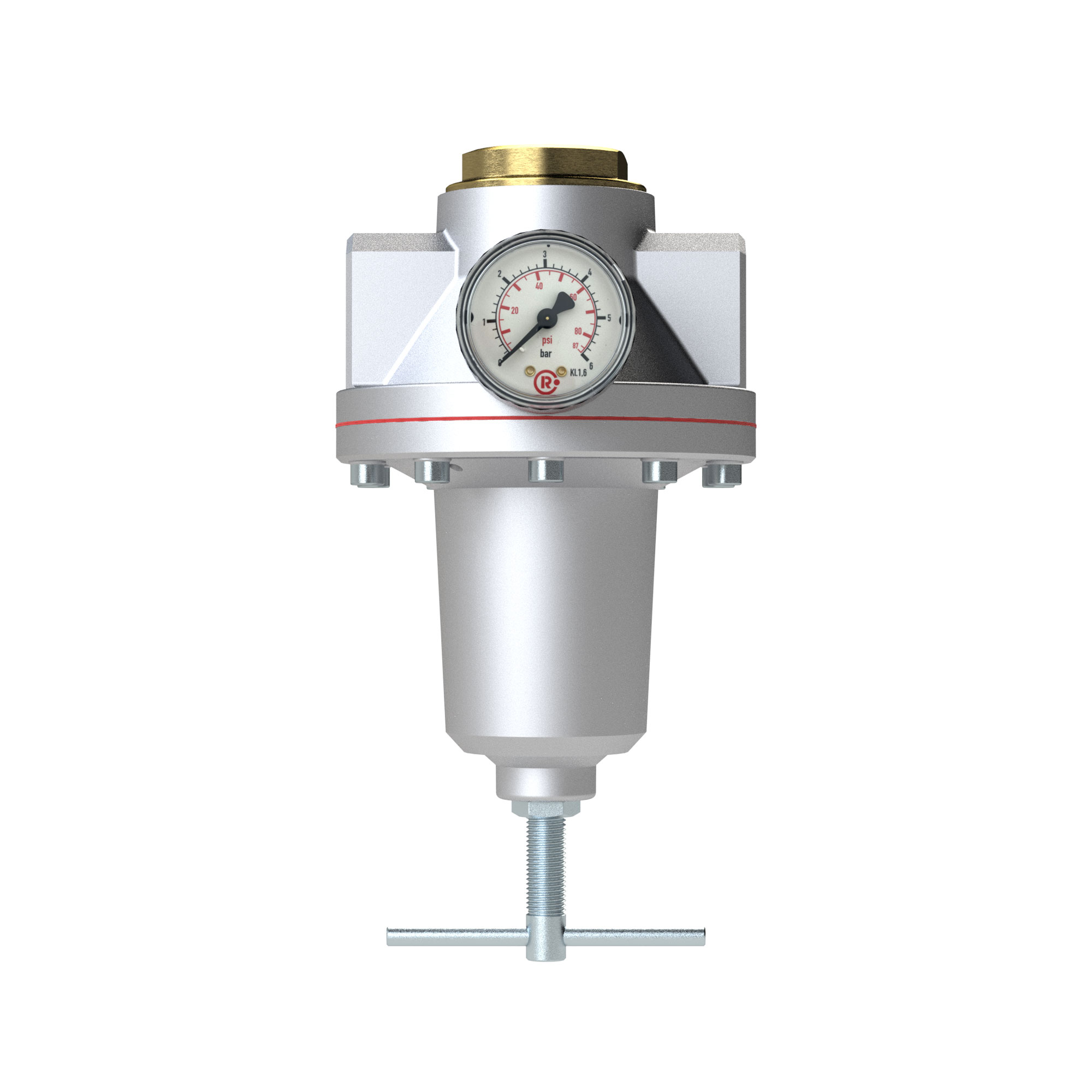

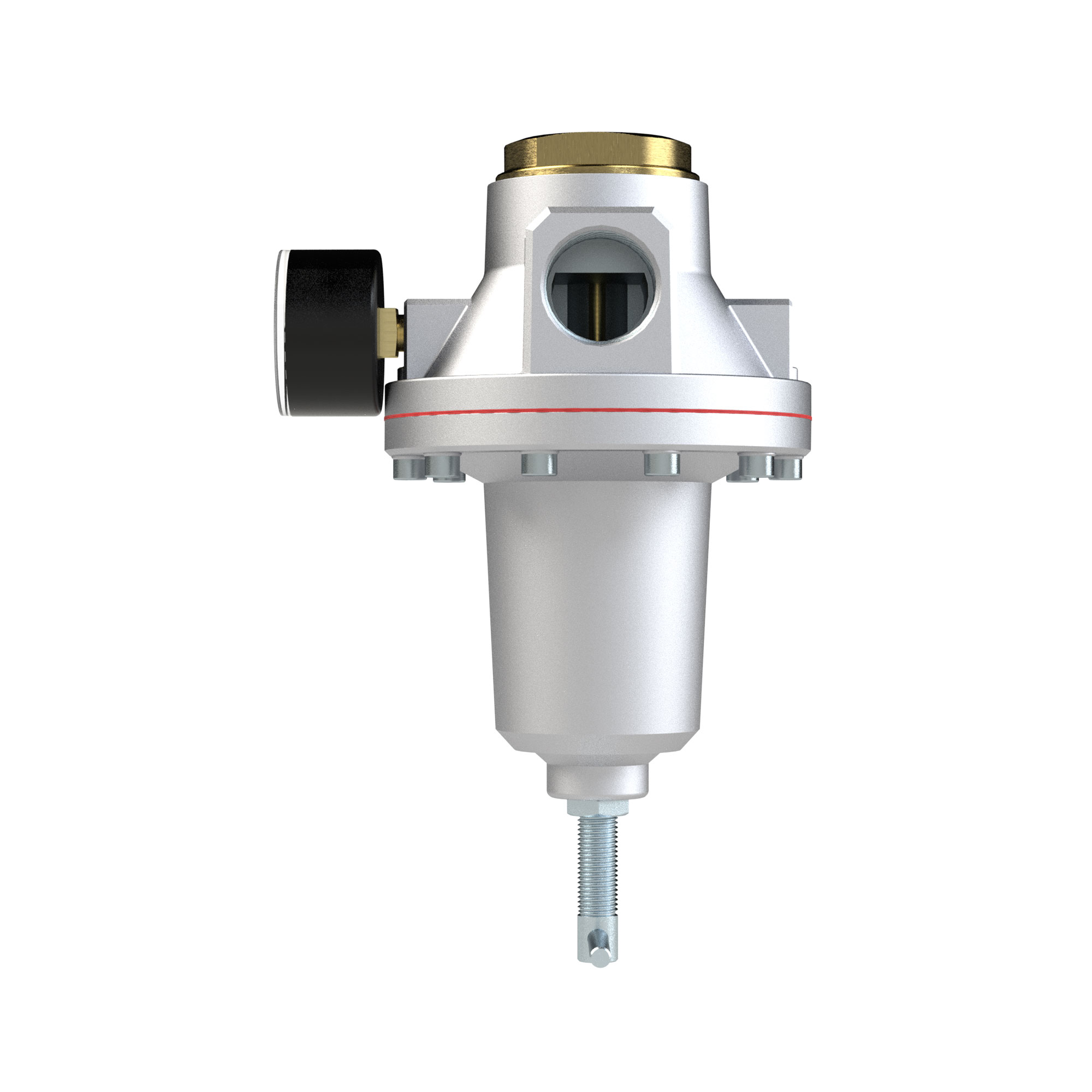

Constant pressure regulator with pressure gauge, size 4, G 1, 0.2 to 6 bar, type DRK.G1.BG4.0,2-6B - Riegler 147519
The constant pressure regulator with pressure gauge keeps the working pressure constant within 0.2 to 6 bar, even when the inlet pressure fluctuates. Inlet pressure up to 40 bar, flow rate 10000 l/min, temperature -10 to 60 °C, port G 1.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Constant working pressure despite fluctuating inlet pressure: constant pressure regulator with pressure gauge, control range 0.2 to 6 bar. Inlet pressure up to 40 bar, flow rate 10000 l/min, temperature -10 to 60 °C, size 4. Secondary venting: when the set point is lowered, the regulator relieves excess outlet pressure itself.
Key benefits
- Flow rate 10000 l/min
- Temperature range -10 to 60 °C
- Housing made of die-cast aluminium, seals made of NBR
Applications
- Constant working pressure at machines despite fluctuating line pressure
- Compressed air and neutral gases
Technical data
| Thread | G 1 |
|---|---|
| Size | 4 |
| Seal material | NBR |
| Grease | Berulub OX 100 EP |
| Spring bonnet | die-cast aluminium |
| Medium temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Flow rate | 10000 l/min at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
| Nominal size DN | 25 mm |
| Control range | 0.2 to 6 bar |
| Housing | die-cast aluminium |
| Inlet pressure max. | 40 bar |

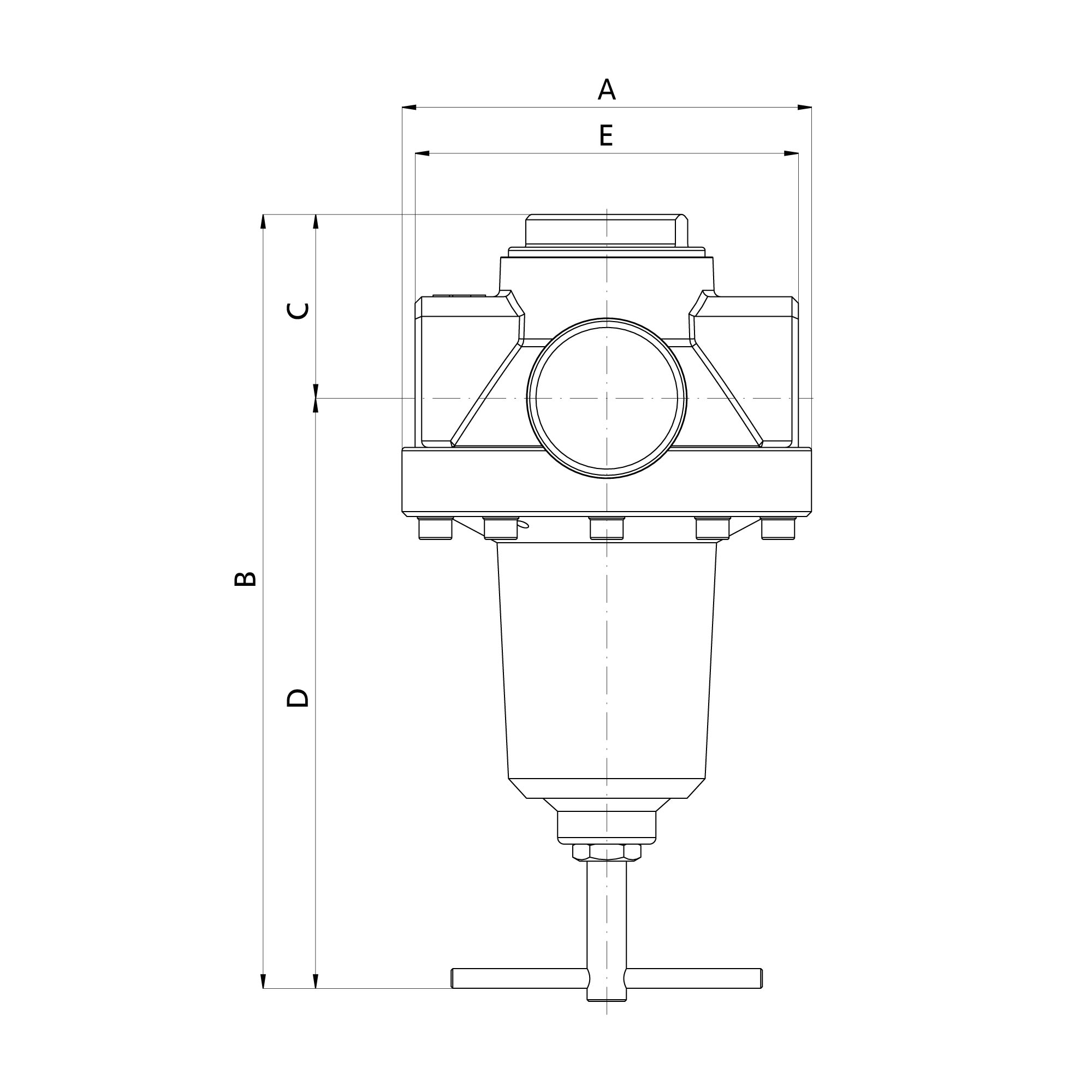

| Dimension A | 125.0 mm |
| Dimension B | 238.0 mm |
| Dimension C | 48.0 mm |
| Dimension D | 190.0 mm |
| Dimension E | 117.0 mm |
| Medium | compressed air, neutral gases |
| Type (Riegler) | DRK.G1.BG4.0,2-6B |
| Article number (Riegler) | 147519 |
| Weight | 2.3 kg |
| Manufacturer | Riegler |
| Hersteller-Nr | DRK.G1.BG4.0,2-6B |
| EAN | 4047322792332 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Material | Die-cast aluminium |
| Nominal size DN [mm] | 25 |
| Size BG | 4 |
| Control range max. [bar] | 6 |
| Housing material | Die-cast aluminium |
| Inlet pressure max. [bar] | 40 |
| Flow rate [l/min] | 10000 |
| Pneumatic connection | G1 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
