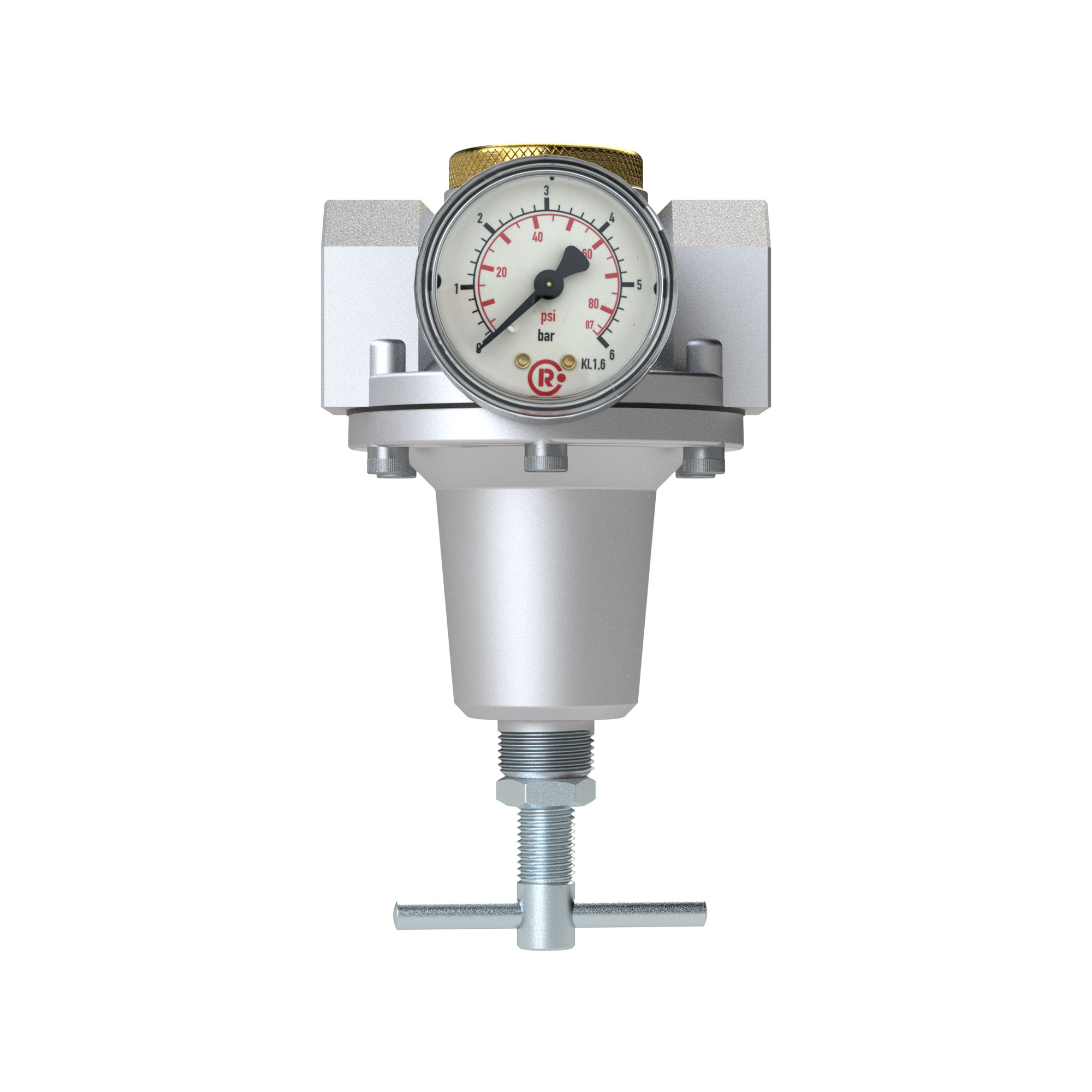

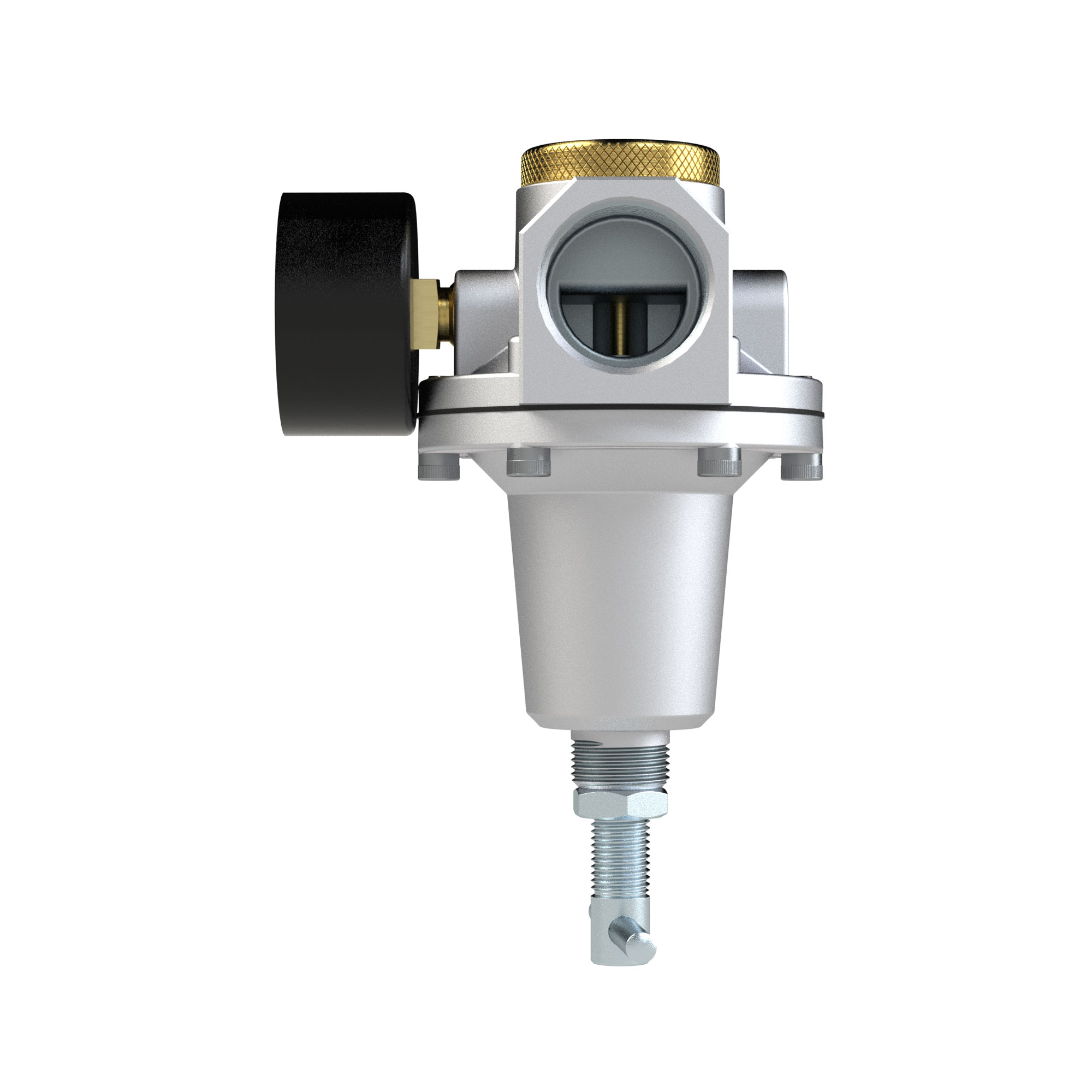

Constant pressure regulator with pressure gauge, size 3, G 1, 0.5 to 10 bar, type DRK.G1.BG3.0,5-10B - Riegler 147510

Riegler ✓ Original product Brand new Made in Germany

The constant pressure regulator with pressure gauge keeps the working pressure constant within 0.5 to 10 bar, even when the inlet pressure fluctuates. Inlet pressure up to 40 bar, flow rate 5000 l/min, temperature -10 to 60 °C, port G 1.

Net
€113.08
excl. VAT
Item RGL-147510
Manufacturer no. DRK.G1.BG3.0,5-10B
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Constant working pressure despite fluctuating inlet pressure: constant pressure regulator with pressure gauge, control range 0.5 to 10 bar. Port G 1, inlet pressure up to 40 bar, flow rate 5000 l/min, temperature -10 to 60 °C. Secondary venting: when the set point is lowered, the regulator relieves excess outlet pressure itself.

Benefits

  • Flow rate 5000 l/min
  • Temperature range -10 to 60 °C
  • Housing made of die-cast zinc, seals made of NBR

Applications

  • Constant working pressure at machines despite fluctuating line pressure
  • Compressed air and neutral gases

Technical data

ThreadG 1
Size3
Seal materialNBR
GreaseBerulub OX 100 EP
Spring bonnetdie-cast zinc
Medium temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Flow rate5000 l/min at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Nominal size DN25 mm
Control range0.5 to 10 bar
Housingdie-cast zinc
Inlet pressure max.40 bar
Dimension A90.0 mm
Dimension B164.0 mm
Dimension C31.0 mm
Dimension D133.0 mm
Mediumcompressed air, neutral gases
Type (Riegler)DRK.G1.BG3.0,5-10B
Article number (Riegler)147510
Weight1.18 kg
ManufacturerRiegler
Hersteller-NrDRK.G1.BG3.0,5-10B
EAN4047322792240
Zolltarifnummer84811099
GPSR HerstellerdatenRiegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureGermany
MaterialDie-cast zinc
Nominal size DN [mm]25
Size BG3
Control range max. [bar]10
Housing materialDie-cast zinc
Inlet pressure max. [bar]40
Flow rate [l/min]5000
Pneumatic connectionG1
Temperaturbereich-10-60 °C
Temperature (max.)60
