Compact stopper cyl., roller, magnet, Ø 80, stroke 30, UNITOP - Riegler 163756
-
This Item:
€348.72
-
Comp. stopper cyl., trunnion, magnet, Ø 20, stroke 15, UNITOP - Riegler 163736
€87.97
-
Compact stopper cyl., roller, w/o mag., Ø 20, stroke 15, UNITOP - Riegler 163747
€124.26

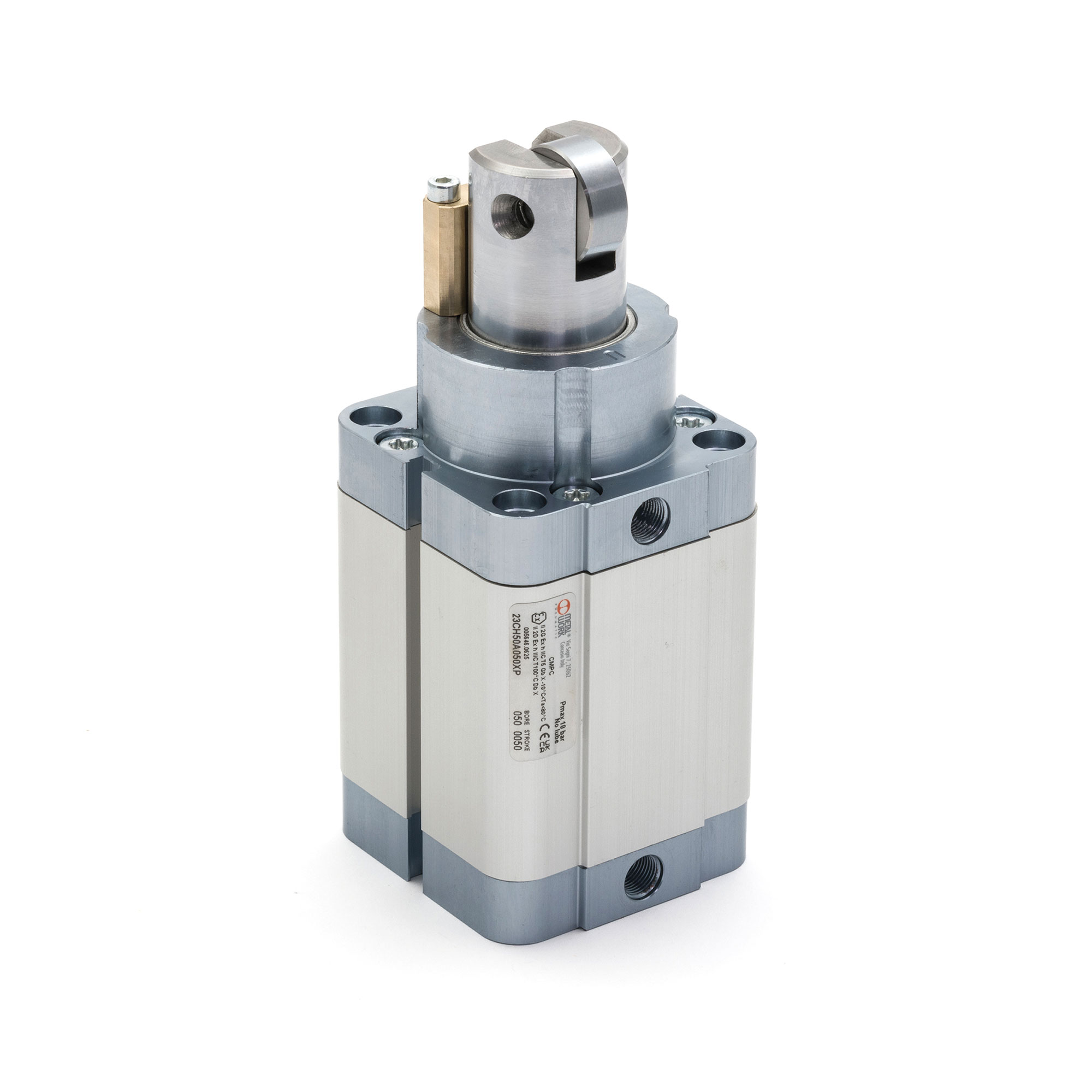

Compact stopper cylinder, roller version, magnet, piston Ø 80, stroke 30, UNITOP, G 1/8, p = max. 10 bar, T = -10 to 80 °C Compact stopper cylinders designed for stopping moving parts or chucks. Advantages: - With or without magnet execution. - Single-acting, oversize extended piston rod. - Can be also used as double-acting whith spring return. - Fixing centre distances to ISO 15552 for Ø 32, Ø 50, Ø 80 and French standard NFE 49-004-1 and 2 (UNITOP). - In the relevant cylinder slots, it is possible to mount retracting magnetic sensor.
Technical data
| Max. working pressure | 10 bar |
|---|---|
| Min. set pressure | 0.5 bar |
| Min. temperature range | -10 °C |
| Max. temperature range | 80 °C |
| Medium | filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Magnet | with magnet |

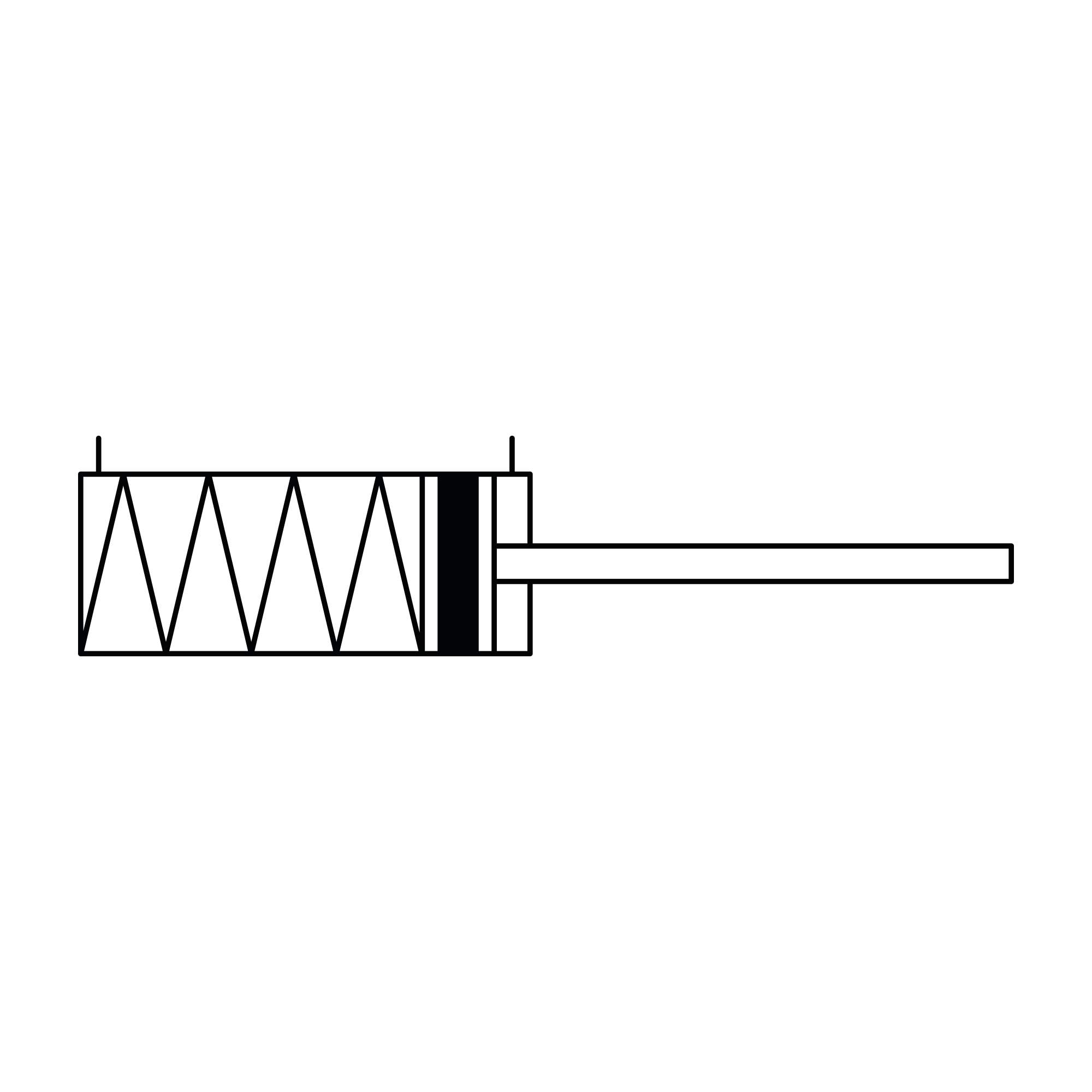

| Function | single-acting / double-acting whith spring return |
| Tube | anodised aluminium jacket with T-slots |
| Piston gasket | PU |
| Piston rod gasket | PU |
| Design | with profile tube and screwed caps |
| Bushing | steel strip with bronze and PTFE insert |
| Piston Ø | 80 mm |
| Stroke | 30 mm |
| Connection | G 1/8 |
| Piston rod | stainless steel, hard chrome-plated |
| Piston rod thread | without |
| Version | roller |
| Screws | steel, zinc plated |
Standards and origin
- Standard: acc. to UNITOP
- Customs tariff number: 84123100
- Country of origin: IT
About Compact stopper cylinders
Stopper cylinders hold workpieces or pallets on a conveyor until the next cycle releases them. The group covers piston Ø 20 to 80 mm with strokes of 15 to 40 mm at up to 10 bar, ported M5 or G 1/8. The compact body is made for the limited space below the conveying line.
What matters when choosing
- Piston Ø 20 to 80 mm sets the stopping force. Heavy pallets and higher approach speeds call for the larger bore.
- Stroke of 15 to 40 mm defines how far the stop rises above the conveying line and how far it retracts to release.
- Roller or trunnion version: the roller lets the incoming part roll off and protects the contact face, the trunnion gives a hard, defined stop.
- Built to UNITOP or to ISO 15552. That choice governs mounting pattern and accessories and should match the cylinders already installed.
- Single-acting or double-acting with spring assistance, together with a min. set pressure of 0.5 to 1.2 bar. Where control pressure is low, that figure decides.
Typical applications
- Stopping pallets on roller and chain conveyors
- Separating accumulated pallets ahead of a machining station
- Positioning parts in front of joining and inspection points
- Holding containers before filling and labelling stations
- Securing the transfer point between two conveyor sections
The cylinders are built either to UNITOP or to ISO 15552, which governs mounting and accessories. The intended medium is filtered compressed air with or without lubrication, and if lubricated then continuously, with production in Italy.
| Manufacturer | Riegler |
|---|---|
| Hersteller-Nr | 23C0800030XP |
| EAN | 4047322879873 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Italy |
| Ausführung | Rolle |
| Piston Ø [mm] | 80 |
| Stroke [mm] | 30 |
| Set pressure [bar] | 0,5 |
| Working pressure max. [bar] | 10 |
| Medium | filtered compressed air with or without lubrication. If lubricated, then continuously. |
| Function | single-acting / double-acting with spring assistance |
| Norm | ISO 15552, UNITOP |
| Bore (mm) | 80.000000 |
| Betriebsdruck max [bar] | 10.000000 |
| Pneumatic connection | G1/8 |
