2/2-way coaxial valve, pneumatically actuated, single-acting, spring-closing, NC, Rp 1 1/4, DN 32, NBR, type 351.945 - Riegler 133394

Riegler ✓ Original product Brand new Made in Italy

Coaxial valve 351.945, 2/2-way, pneumatically actuated, single-acting, spring-closing, NC: full bore at Rp 1 1/4, DN 32 and up to 10 bar operating pressure. NBR seals for -20 to 80 °C, pilot pressure 4.2 to 8 bar.

Net
€209.84
excl. VAT
Item RGL-133394
Manufacturer no. 351.945
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The coaxial valve 351.945 opens and closes lines with Rp 1 1/4 connection and DN 32 pneumatically, with full bore at up to 10 bar operating pressure.

Benefits

  • Full bore at DN 32, only minimal flow losses.
  • Compact alternative to a ball valve with rotary actuator.
  • Pilot pressure 4.2 to 8 bar, filtered compressed air.
  • NBR seals for -20 to 80 °C.
  • Body and internal parts of nickel-plated brass.
  • Spring-closing: closed if pilot air fails.

Application

For automated plant engineering. Pilot air port 2 x G 1/8 with direct NAMUR interface. Any mounting position.

Technical data

Type no.351.945
Number of ways2/2-way
Actuationpneumatic
Rest positionclosed (NC)
Operating temperature-20 to 80 °C
Operating pressureup to 10 bar
Housingnickel-plated brass
Pilot air port2 x G 1/8 (NAMUR interface, direct)
Port threadRp 1 1/4
Internal partsnickel-plated brass
Springstainless steel
Mounting positionany
Versionsingle-acting - spring to close
Seal materialNBR
Pilot pressure4.2 to 8 bar
Nominal size DN32 mm

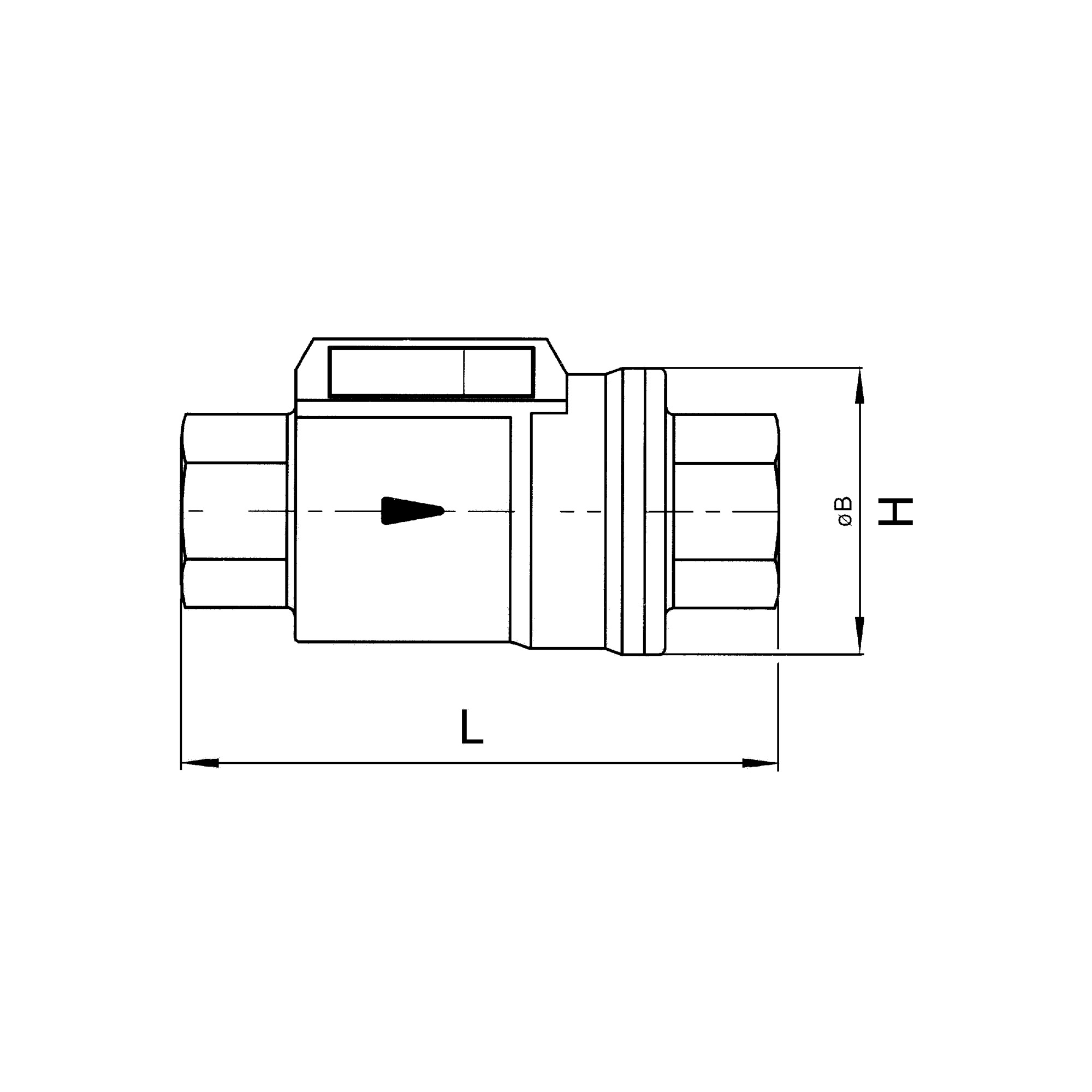

Dimension H86 mm
Dimension L165 mm
Weight3.088 kg
ManufacturerRiegler
Hersteller-Nr351.945
EAN4047322477918
Zolltarifnummer84818069
GPSR HerstellerdatenRiegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureItaly
Ausführungeinfachwirkend - federschließend
MaterialNickel-plated brass
ThreadRp 1 1/4
Nominal size DN [mm]32
Housing materialNickel-plated brass
Actuation typepneumatic
Thread typeInternal thread
Betriebsdruck max [bar]10
Pneumatic connectionRp1 1/4
Temperaturbereich-20-80 °C
Temperature (max.)80
