Calibration test and service equipment, -1 / +40 bar, G 1/4 - Riegler 136731

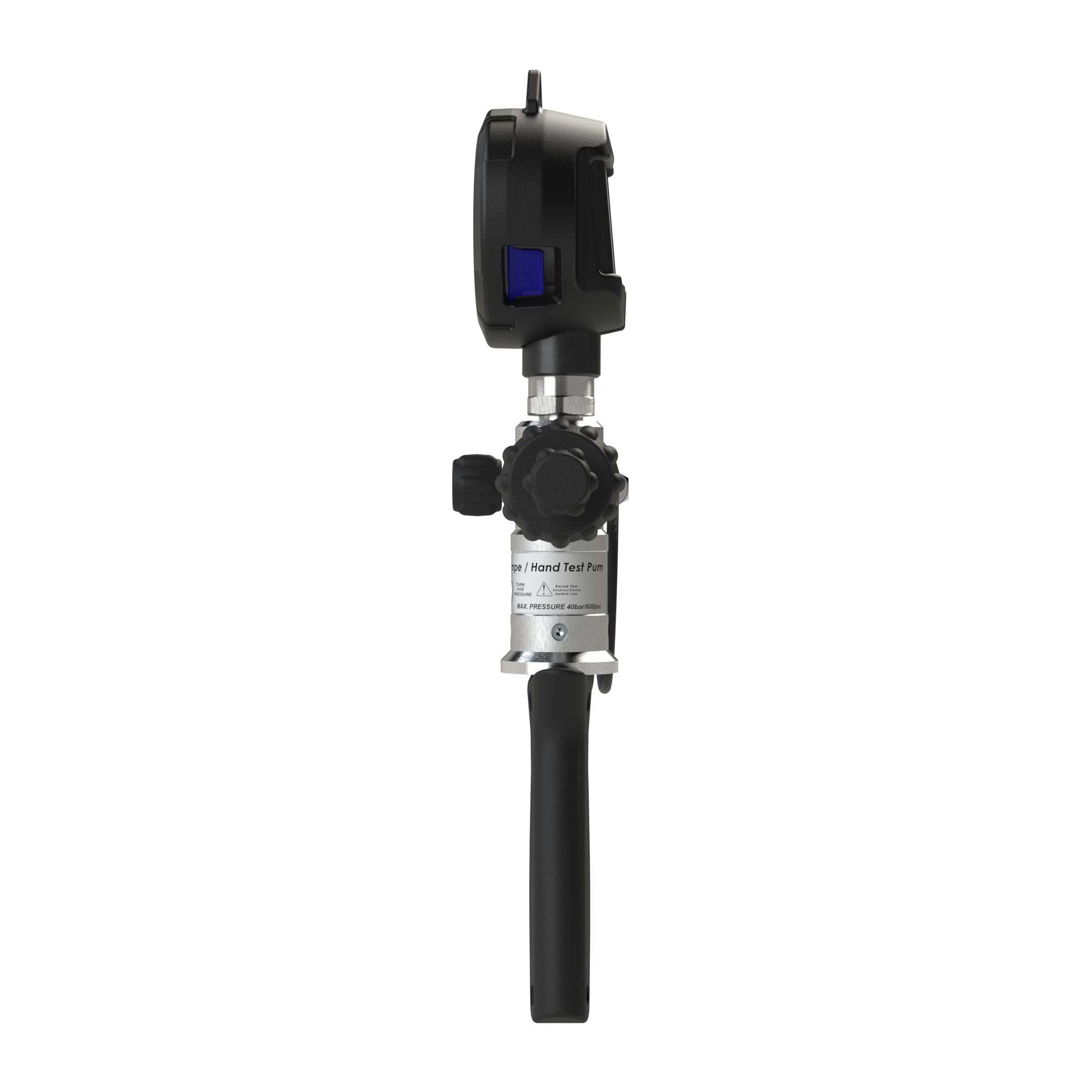

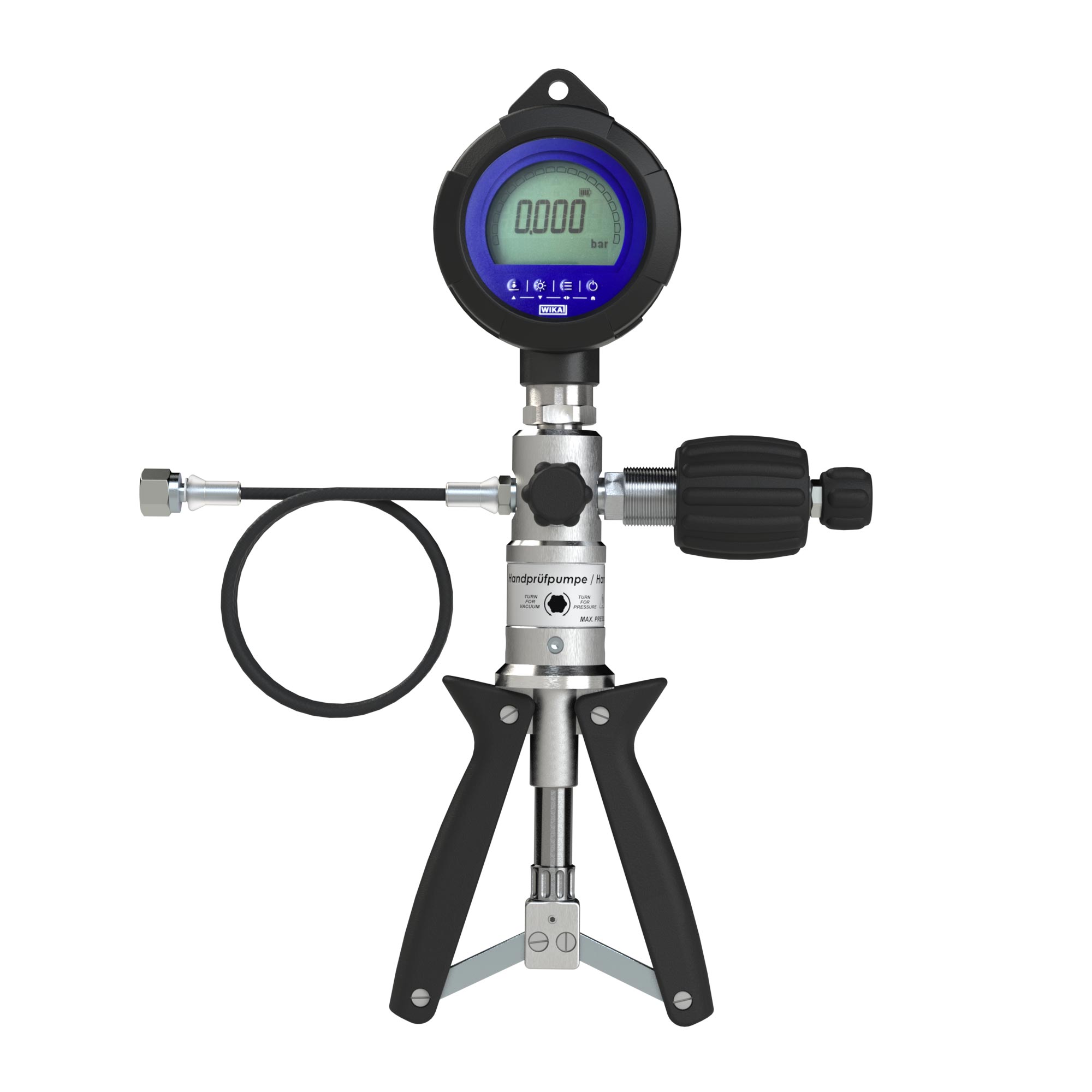

Calibration test and service equipment, measurement range -1 / +40 bar, G 1/4, incl. factory calibration certificate Service case for quick and precise pressure gauge calibration on site. Suitable for service and maintenance providers of all kinds as well as instrumentation control workshops and quality assurance. Simple operation using four buttons. The high sampling rate guarantees an accurate analysis at the measuring point. Comprised of a CPG1200 digital gauge and a CPP40 pneumatic hand test pump with a connecting cable for pressure generation. Operating manual, calibration certificate 3.1, three AA batteries and housing protective cap made of VMQ (silicone) are enclosed. Includes a plastic emergency case with foam padding.
Technical data
| Min. operating temperature | -10 °C |
|---|---|
| Max. operating temperature | 50 °C |
| Accuracy | 0.25% FS |
| Housing | PBT with 30% glass fibre |
| Min. medium temperature | -20 °C |
| Max. medium temperature | 50 °C |
| Wetted parts | CrNi steel 316L |
| Thread | G 1/4 ET |
| Measuring range min. bar | -1 bar |
| Measuring range max. bar | 40 bar |
Standards and origin
- Customs tariff number: 90262020
- Country of origin: DE
About Calibration, testing and service unit
The calibration, test and service unit checks pressure instruments on site instead of removing them and sending them away. The service case covers a measuring range of -1 to +40 bar and is supplied with a works calibration certificate. Four keys operate it, and the high sampling rate keeps each check short.
What matters when choosing
- Measuring range -1 to +40 bar has to include the range of the gauges and transmitters under test, in both pressure and vacuum.
- Port thread G 1/4 male connects the item under test, other threads need an adapter.
- Operating temperature -10 °C to 50 °C and medium temperature -20 °C to 50 °C both limit use outdoors and on warm plant sections.
- Housing of PBT with 30 % glass fibre is made to survive transport in a service vehicle.
- Works calibration certificate: it is included and forms the basis for tracing your own test results.
Typical applications
- Calibration of pressure gauges in measurement and control workshops
- Recurring checks of pressure measuring points in quality assurance
- Service visits where instruments are assessed at the customer site
- Checking pressure transmitters on compressor and hydraulic stations
- Fault finding when two measuring points show diverging readings
The housing is PBT with 30 % glass fibre content and a works calibration certificate is included. Manufacturing takes place in Germany (DE).
| Manufacturer | Riegler |
|---|---|
| Hersteller-Nr | KTS-40-1 |
| EAN | 4047322751292 |
| Zolltarifnummer | 90262020 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Material | PBT with 30% glass fibre content |
| Thread | G 1/4 AG |
| Measuring range max. [bar] | 40 |
| Housing material | PBT with 30% glass fibre content |
| Pneumatic connection | G1/4 AG |
| Temperature (max.) | 50 |
