Solenoid valve 5/2-way bistable 1/8 NPT JMFH-5-1/8-NPT - Festo 10875

Festo ✓ Original product Brand new

Festo type JMFH-5-1/8-NPT holds its last switching position even without a signal applied. With 1/8 NPT ports, it reaches 600 l/min standard nominal flow rate and 1.5 to 8 bar operating pressure. Degree of protection IP65 at an ambient temperature of -5 to 40 °C.

Net
€236.35
excl. VAT
Item FES-10875
Manufacturer no. JMFH-5-1/8-NPT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Built for a 1/8 NPT pipe connection, the JMFH-5-1/8-NPT delivers 600 l/min standard nominal flow rate and 1.5 to 8 bar operating pressure.

Benefits

  • 1/8 NPT ports
  • Standard nominal flow rate 600 l/min at nominal size 5 mm
  • Operating pressure 1.5 to 8 bar
  • Switching time reversal 10 ms
  • Degree of protection IP65, ambient temperature -5 to 40 °C
  • Corrosion resistance class 1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

As for switching behaviour, it holds its last switching position even without a signal applied. The JMFH-5-1/8-NPT suits double-acting cylinders, rotary actuators and grippers. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible but must then continue.

Technical data

FeatureValue
TypeJMFH-5-1/8-NPT

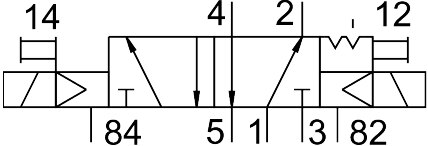

Valve function5/2-way, bistable
Type of actuationElectrical
Construction width26 mm
Standard nominal flow rate600 l/min
Pneumatic working port1/8 NPT
Operating voltageVia solenoid coil, to be ordered separately
Operating pressure1.5 to 8 bar
DesignPoppet seat
Approvalc UL us - Recognized (OL)
Degree of protectionIP65
Nominal size5 mm
Grid dimension27 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Flow directionNon-reversible
Spool overlapNegative overlap (underlap)
Maximum switching frequency25 Hz
Switching time reversal10 ms
Maximum positive test pulse with 0 signal2200 µs
Maximum negative test pulse with 1 signal3700 µs
Characteristic coil dataSee solenoid coil, to be ordered separately
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then required for further operation)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-20 to 60 °C
Media temperature-10 to 60 °C
Ambient temperature-5 to 40 °C
Product weight260 g
Type of mountingOn manifold rail, with through-hole
Pilot air port 12M5
Pilot air port 14M5
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Pneumatic connection, port 41/8 NPT
Pneumatic connection, port 51/8 NPT
Note on materialsRoHS compliant
Material sealsNBR, TPE-U(PU)
Material housingDie-cast aluminium
Weight0.28 kg
ManufacturerFesto
Hersteller-NrJMFH-5-1/8-NPT
EAN4052568303716
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialDie-cast aluminium
ThreadNPT 1/8
Nominal size DN [mm]5
Seal materialNBR, TPE-U(PU)
MediumCompressed air
Function5/2 bistable
Flow rate [l/min]600
Actuation typeElectrical
SeriesJMFH
Betriebsdruck max [bar]8
Protection ratingIP65
