Solenoid valve 5/2-way bistable 1/4 NPT JMFH-5-1/4-S-NPT - Festo 15614
The solenoid valve JMFH-5-1/4-S-NPT holds its last switching position even without a signal applied. Key data: 1/4 NPT ports, 1100 l/min standard nominal flow rate, 0 to 10 bar operating pressure. Switching time reversal is 11 ms.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Built for a 1/4 NPT pipe connection, the JMFH-5-1/4-S-NPT delivers 1100 l/min standard nominal flow rate and 0 to 10 bar operating pressure.
Benefits
- 1/4 NPT ports
- Standard nominal flow rate 1100 l/min at nominal size 7 mm
- Operating pressure 0 to 10 bar, pilot pressure 1.2 to 8 bar
- Switching time reversal 11 ms
- Degree of protection IP65, ambient temperature -5 to 40 °C
- Manual override: detenting
Applications
Functionally, the valve holds its last switching position even without a signal applied. With the JMFH-5-1/4-S-NPT, double-acting cylinders, rotary actuators and grippers can be controlled. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible but must then continue.
Technical data
| Feature | Value |
|---|---|
| Type | JMFH-5-1/4-S-NPT |

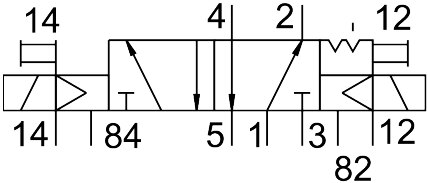

| Valve function | 5/2-way, bistable |
| Type of actuation | Electrical |
| Construction width | 30.5 mm |
| Standard nominal flow rate | 1100 l/min |
| Pneumatic working port | 1/4 NPT |
| Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | 0 to 10 bar |
| Design | Poppet seat |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Non-reversible |
| Spool overlap | Negative overlap (underlap) |
| Pilot pressure | 1.2 to 8 bar |
| Maximum switching frequency | 25 Hz |
| Switching time reversal | 11 ms |
| Maximum positive test pulse with 0 signal | 2200 µs |
| Maximum negative test pulse with 1 signal | 3700 µs |
| Characteristic coil data | See solenoid coil, to be ordered separately |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (lubrication then required for further operation) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20 to 60 °C |
| Media temperature | -10 to 60 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 40 °C |
| Product weight | 530 g |
| Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | On manifold rail, with through-hole |
| Pilot exhaust port 82 | M5 |
| Pilot exhaust port 84 | M5 |
| Pilot air port 12 | 10-32 UNF-2B |
| Pilot air port 14 | 10-32 UNF-2B |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Pneumatic connection, port 3 | 1/4 NPT |
| Pneumatic connection, port 4 | 1/4 NPT |
| Pneumatic connection, port 5 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Die-cast aluminium |
| Weight | 0.4 kg |
| Manufacturer | Festo |
| Hersteller-Nr | JMFH-5-1/4-S-NPT |
| EAN | 4052568304447 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Die-cast aluminium |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 7 |
| Seal material | NBR, TPE-U(PU) |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 1100 |
| Actuation type | Electrical |
| Series | JMFH |
| Betriebsdruck max [bar] | 10 |
| Protection rating | IP65 |
