Solenoid valve 5/2-way bistable 1/4 NPT JMFH-5-1/4-NPT - Festo 10876

Festo ✓ Original product Brand new

The Festo valve JMFH-5-1/4-NPT holds its last switching position even without a signal applied. With 1/4 NPT ports, it reaches 1100 l/min standard nominal flow rate and 1.5 to 8 bar operating pressure. Design: poppet seat, piloted control.

Net
€260.49
excl. VAT
Item FES-10876
Manufacturer no. JMFH-5-1/4-NPT
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Built for a 1/4 NPT pipe connection, the JMFH-5-1/4-NPT delivers 1100 l/min standard nominal flow rate and 1.5 to 8 bar operating pressure.

Benefits

  • 1/4 NPT ports
  • Standard nominal flow rate 1100 l/min at nominal size 7 mm
  • Operating pressure 1.5 to 8 bar
  • Switching time reversal 11 ms
  • Degree of protection IP65, ambient temperature -5 to 40 °C
  • Manual override: detenting

Applications

In operation it holds its last switching position even without a signal applied. With the JMFH-5-1/4-NPT, double-acting cylinders, rotary actuators and grippers can be controlled. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible but must then continue.

Technical data

FeatureValue
TypeJMFH-5-1/4-NPT

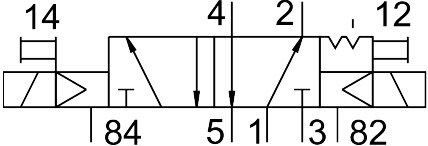

Valve function5/2-way, bistable
Type of actuationElectrical
Construction width30.5 mm
Standard nominal flow rate1100 l/min
Pneumatic working port1/4 NPT
Operating voltageVia solenoid coil, to be ordered separately
Operating pressure1.5 to 8 bar
DesignPoppet seat
Approvalc UL us - Recognized (OL)
Degree of protectionIP65
Nominal size7 mm
Grid dimension32 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting
Type of pilotingPiloted
Flow directionNon-reversible
Spool overlapNegative overlap (underlap)
Maximum switching frequency25 Hz
Switching time reversal11 ms
Maximum positive test pulse with 0 signal2200 µs
Maximum negative test pulse with 1 signal3700 µs
Characteristic coil dataSee solenoid coil, to be ordered separately
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then required for further operation)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-20 to 60 °C
Media temperature-10 to 60 °C
Ambient temperature-5 to 40 °C
Product weight344 g
Electrical connectionVia F coil, to be ordered separately
Type of mountingOn manifold rail, with through-hole
Pilot exhaust port 82M5
Pilot exhaust port 84M5
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 41/4 NPT
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material sealsNBR, TPE-U(PU)
Material housingDie-cast aluminium
Weight0.39 kg
ManufacturerFesto
Hersteller-NrJMFH-5-1/4-NPT
EAN4052568303723
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialDie-cast aluminium
ThreadNPT 1/4
Nominal size DN [mm]7
Seal materialNBR, TPE-U(PU)
MediumCompressed air
Function5/2 bistable
Flow rate [l/min]1100
Actuation typeElectrical
SeriesJMFH
Betriebsdruck max [bar]8
Protection ratingIP65
