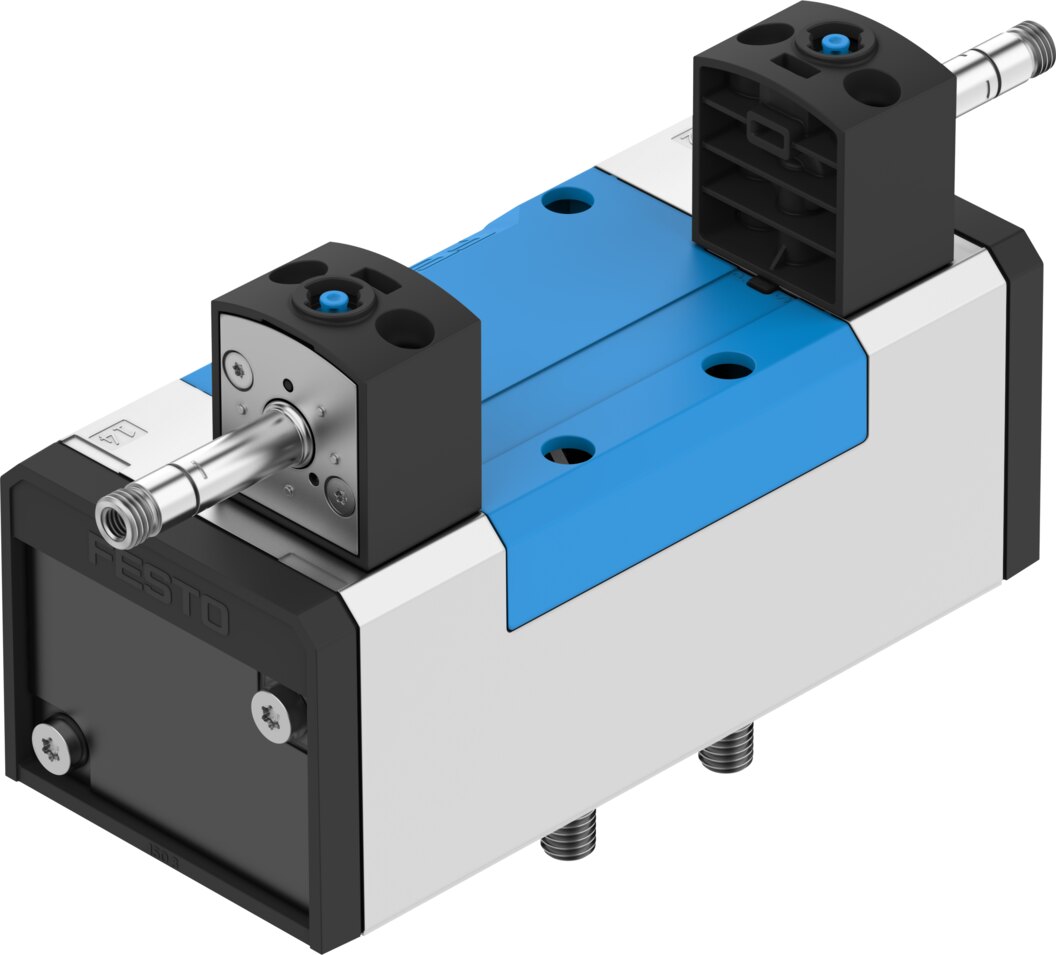

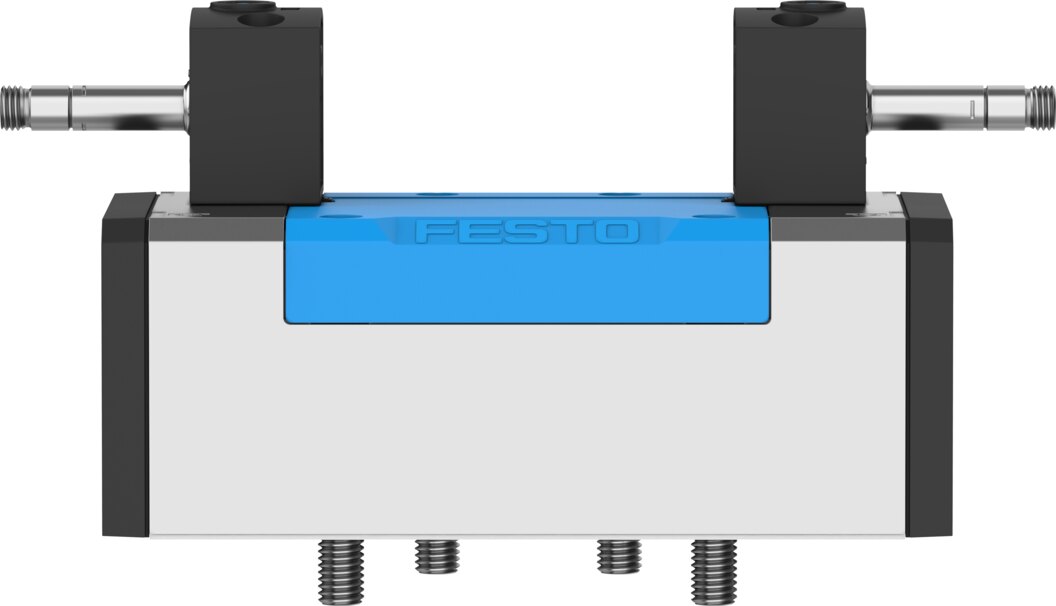

Solenoid valve 5/2-way bistable dominant ISO 5599-1 size 3 JMFDH-5/2-D-3-S-C - Festo 8221573

Festo ✓ Original product Brand new

The Festo JMFDH-5/2-D-3-S-C works bistably and takes a defined dominant position when both signals are present. It delivers 4500 l/min standard nominal flow rate and -0.9 to 16 bar operating pressure and mounts on ISO 5599-1 sub-bases, size 3.

Net
€252.51
excl. VAT
Item FES-8221573
Manufacturer no. JMFDH-5/2-D-3-S-C
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Built for ISO 5599-1 sub-bases, size 3, the JMFDH-5/2-D-3-S-C delivers 4500 l/min standard nominal flow rate and -0.9 to 16 bar operating pressure.

Benefits

  • Port pattern for ISO 5599-1 sub-bases, size 3 (width 65 mm, grid dimension 71 mm)
  • Standard nominal flow rate 4500 l/min at nominal size 14.5 mm
  • Operating pressure -0.9 to 16 bar, pilot pressure 2 to 10 bar
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Pilot air supply external
  • Switching time reversal 24 ms

Applications

In operation it works bistably and takes a defined dominant position when both signals are present. Typical applications of the JMFDH-5/2-D-3-S-C: double-acting cylinders, rotary actuators and grippers. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible but must then continue.

Technical data

FeatureValue
TypeJMFDH-5/2-D-3-S-C
Valve function5/2-way, bistable, dominant
Type of actuationElectrical
Construction width65 mm
Standard nominal flow rate4500 l/min
Pneumatic working portSub-base size 3 to ISO 5599-1, G1/2
Operating voltageVia solenoid coil, to be ordered separately
Operating pressure-0.9 to 16 bar
DesignPiston spool
Maritime classificationSee certificate
Certificate issuing authorityDNV-TAA000032X
Degree of protectionIP65
Nominal size14.5 mm
Grid dimension71 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting with accessory, non-detenting
ISO code369
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionReversible
Spool overlapPositive overlap
Pilot pressure2 to 10 bar
Suitability for vacuumYes
Switching time reversal24 ms
Switching time reversal (dominating)21 ms
Maximum positive test pulse with 0 signal3700 µs
Maximum negative test pulse with 1 signal4600 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (lubrication then required for further operation)
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 to 50 °C
Sound pressure level85 dB(A)
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight1090 g
Electrical connectionVia N1 coil, to be ordered separately
Type of mountingOn sub-base, via through-hole and screw
Pilot exhaust port 82M5
Pilot exhaust port 84M5
Pilot air port 12Sub-base size 3 to ISO 5599-1
Pilot air port 14Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingDie-cast aluminium
ManufacturerFesto
Hersteller-NrJMFDH-5/2-D-3-S-C
EAN4052568770723
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialDie-cast aluminium
Nominal size DN [mm]14,5
Seal materialHNBR, NBR
MediumCompressed air
Function5/2 bistable-dominant
Flow rate [l/min]4500
Actuation typeElectrical
NormISO 5599-1
SeriesJMFDH
Betriebsdruck max [bar]16
Protection ratingIP65
Temperature (max.)50
