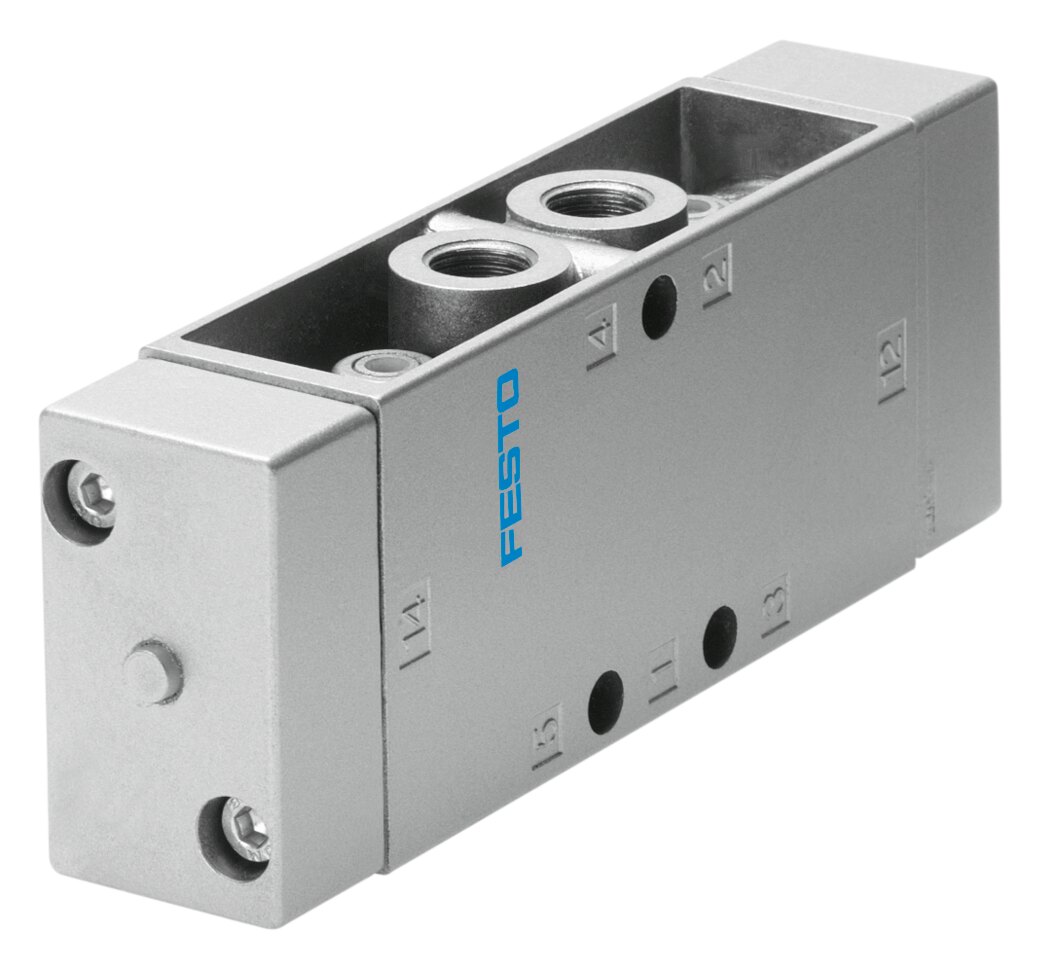

Pneumatic valve 5/2-way bistable 1/4 NPT JH-5-1/4-NPT - Festo 10879
The Festo valve JH-5-1/4-NPT stays in its switched position after a pulse until the opposite signal arrives. With 1/4 NPT ports it reaches a standard nominal flow rate of 1100 l/min at an operating pressure of 0 to 8 bar. Switching time reversal 7 ms.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The JH-5-1/4-NPT from the Festo JH range is a pneumatically actuated bistable 5/2-way valve with a standard nominal flow rate of 1100 l/min and an operating pressure of 0 to 8 bar.
Benefits
- 1/4 NPT ports with width 30,5 mm, grid dimension 32 mm
- Standard nominal flow rate 1100 l/min at nominal size 7 mm
- Operating pressure 0 to 8 bar, pilot pressure 1.2 to 10 bar
- Switching time reversal 7 ms, switching frequency up to 12 Hz
- Degree of protection IP65, ambient temperature -10 to 60 °C
- Corrosion resistance class CRC 1, LABS (PWIS) conformity VDMA24364-B2-L
Applications
As for switching behaviour, the valve stays in its switched position after a pulse until the opposite signal arrives. The JH-5-1/4-NPT suits double-acting cylinders, rotary actuators and grippers. The JH-5-1/4-NPT is mounted on manifold rail, with through-hole. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible but must then continue.
Technical data
| Feature | Value |
|---|---|
| Type | JH-5-1/4-NPT |

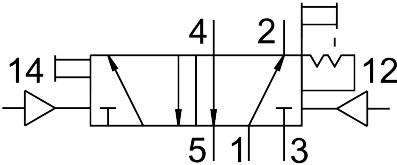

| Valve function | 5/2-way, bistable |
| Type of actuation | Pneumatic |
| Construction width | 30.5 mm |
| Standard nominal flow rate | 1100 l/min |
| Pneumatic working port | 1/4 NPT |
| Operating pressure | 0 to 8 bar |
| Design | Poppet seat |
| Degree of protection | IP65 |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Direct |
| Pilot air supply | External |
| Flow direction | Non-reversible |
| Spool overlap | Negative overlap (underlap) |
| Pilot pressure | 1.2 to 10 bar |
| Maximum switching frequency | 12 Hz |
| Switching time reversal | 7 ms |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (lubrication then required for further operation) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20 to 60 °C |
| Media temperature | -10 to 60 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 60 °C |
| Product weight | 330 g |
| Type of mounting | On manifold rail, with through-hole |
| Pilot air port 12 | 1/8 NPT |
| Pilot air port 14 | 1/8 NPT |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Pneumatic connection, port 3 | 1/4 NPT |
| Pneumatic connection, port 4 | 1/4 NPT |
| Pneumatic connection, port 5 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material seals | NBR, TPE-U(PU) |
| Material housing | Die-cast aluminium |
| Weight | 0.35 kg |
| Manufacturer | Festo |
| Hersteller-Nr | JH-5-1/4-NPT |
| EAN | 4052568303747 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 7 |
| Seal material | NBR, TPE-U(PU) |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 1100 |
| Actuation type | pneumatic |
| Series | JH |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | NPT 1/4 |
| Protection rating | IP65 |
| Temperature (max.) | 60 |
