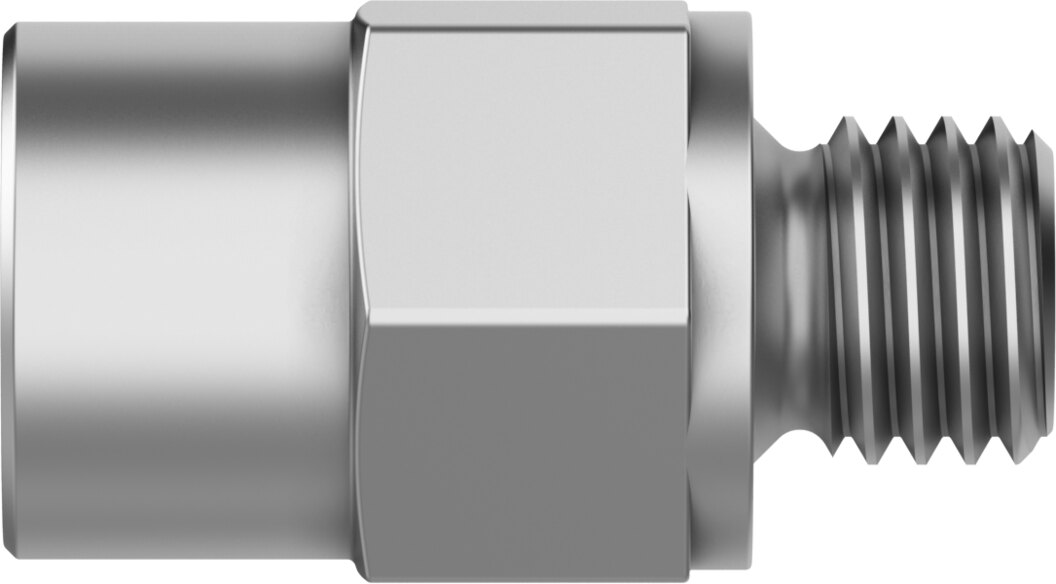

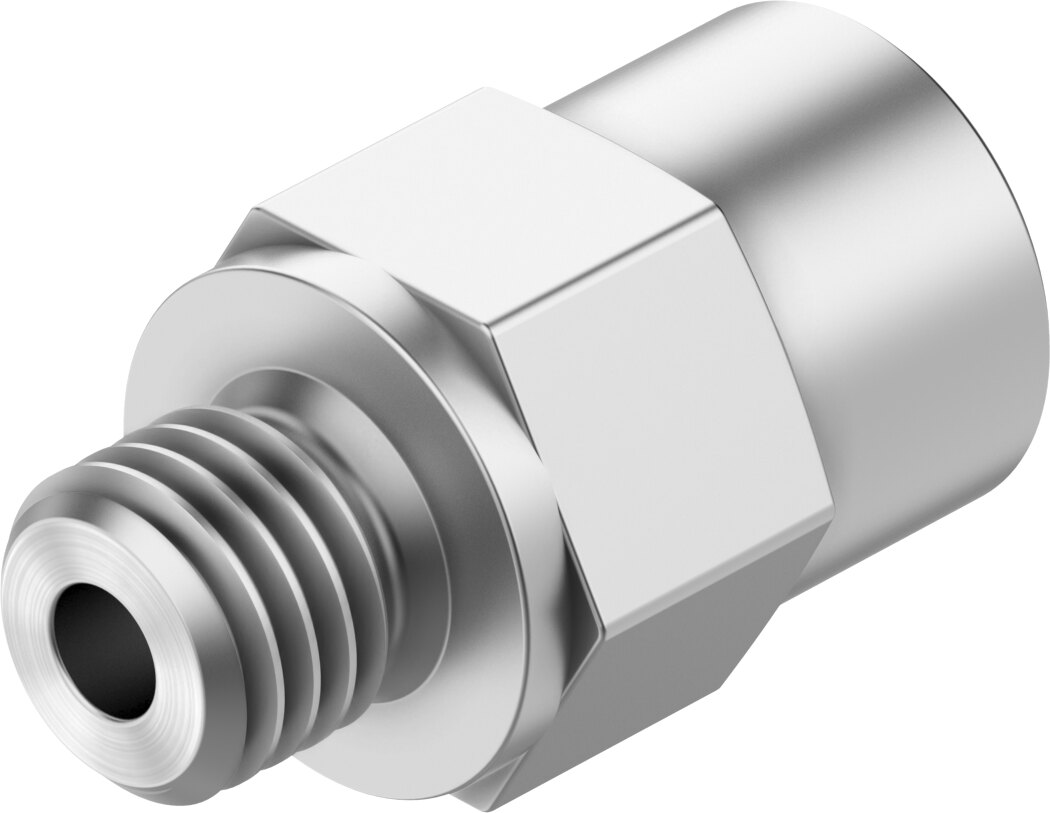

Vacuum security valve M5 1 l/min at -0.5 bar ISV-M5-F1A - Festo 8217206

Festo ✓ Original product Brand new

The Festo ISV-M5-F1A vacuum security valve shuts off the suction line when a suction cup has no workpiece, keeping the vacuum at the other cups. Suitable for ejector pulses up to 8 bar. Closes at a suction flow rate of 1 l/min at -0.5 bar. Filter made of sintered bronze.

Net
€18.84
excl. VAT
Item FES-8217206
Manufacturer no. ISV-M5-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo ISV-M5-F1A vacuum security valve shuts off the suction line when a suction cup has no workpiece, keeping the vacuum at the other cups.

Key benefits

  • Closes at a suction flow rate of 1 l/min at -0.5 bar
  • Suitable for ejector pulses up to 8 bar
  • Filter made of sintered bronze
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Applications

This pays off on grippers with several suction cups on one vacuum generator and with changing workpiece shapes. Size M5.

Technical data

TypeISV-M5-F1A
Festo part number8217206
SizeM5
Suitable for ejector pulse8 bar
Mounting positionAny
Operating pressure-0.95 to 0 bar
Required suction volumetric flow at -0.05 MPa (-0.5 bar, -7.25 psi)1 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature-10 to 60 °C
Product weight4 g
Type of mountingScrew-in
Pneumatic connection, port 1M5
Pneumatic connection, port 2M5
Material filterSintered bronze
Material housingHigh-alloy steel
Weight0.005 kg
ManufacturerFesto
Hersteller-NrISV-M5-F1A
EAN4052568727826
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadM5
MediumCompressed air
SeriesISV
Betriebsdruck max [bar]0
Pneumatic connectionM5
Temperaturbereich-10-60 °C
Temperature (max.)60
