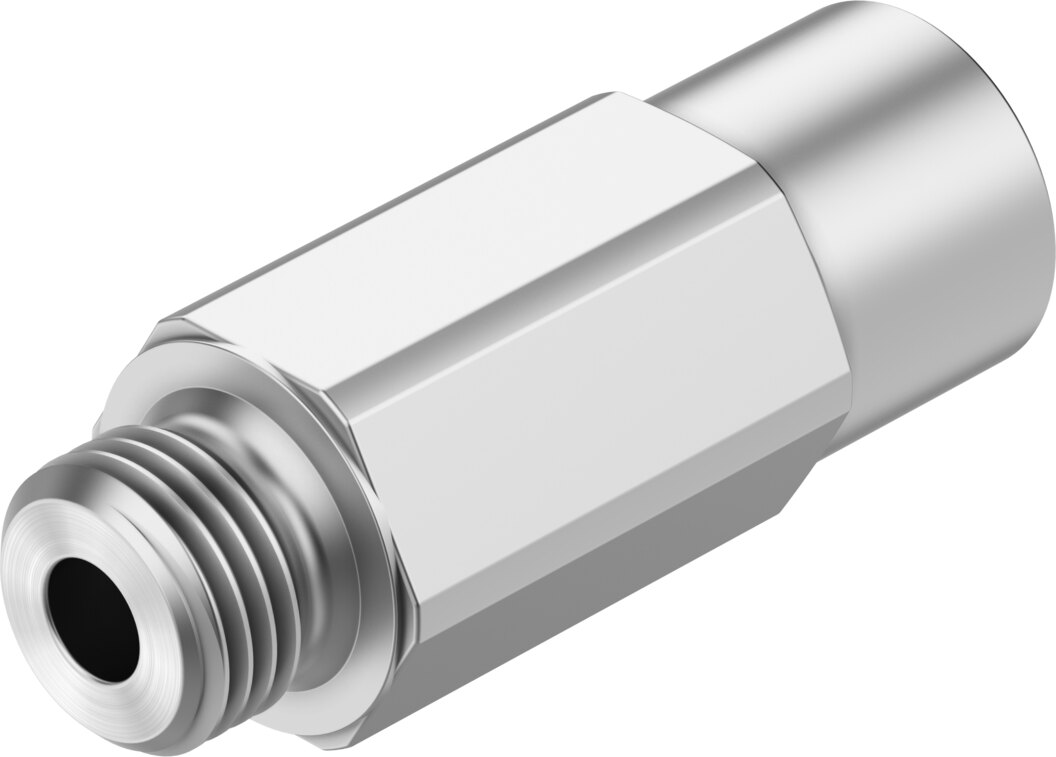

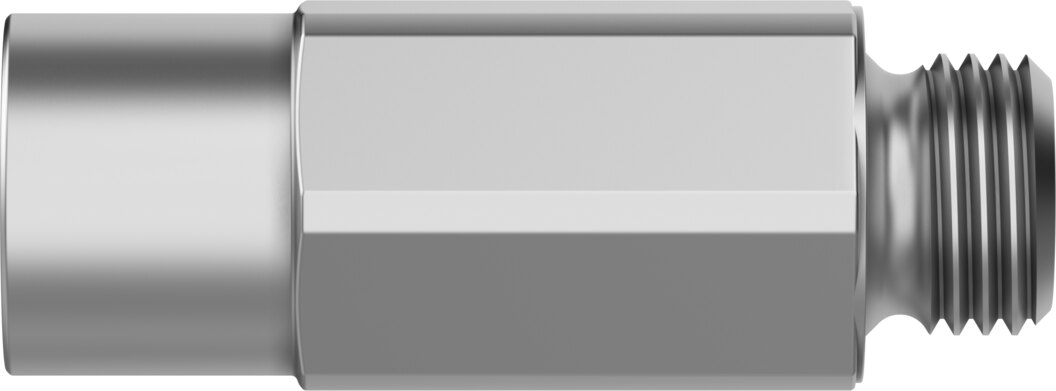

Vacuum security valve G1/8 2 l/min at -0.5 bar ISV-1/8-F1A - Festo 8217204
The Festo ISV-1/8-F1A vacuum security valve shuts off the suction line when a suction cup has no workpiece, keeping the vacuum at the other cups. Suitable for ejector pulses up to 8 bar. Closes at a suction flow rate of 2 l/min at -0.5 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo ISV-1/8-F1A vacuum security valve shuts off the suction line when a suction cup has no workpiece, keeping the vacuum at the other cups.
Benefits
- Closes at a suction flow rate of 2 l/min at -0.5 bar
- Suitable for ejector pulses up to 8 bar
- Filter made of wrought aluminium alloy, stainless steel mesh
- LABS (PWIS) conformity VDMA24364-B1/B2-L
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Areas of use
It is typically used in multi-cup systems where not all suction cups are always covered. Size G1/8.
Technical data
| Type | ISV-1/8-F1A |
|---|---|
| Festo part number | 8217204 |
| Size | G1/8 |
| Suitable for ejector pulse | 8 bar |
| Mounting position | Any |
| Operating pressure | -0.95 to 0 bar |
| Required suction volumetric flow at -0.05 MPa (-0.5 bar, -7.25 psi) | 2 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 to 60 °C |
| Product weight | 9 g |
| Type of mounting | Screw-in |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Material spring | High-alloy steel |
| Material filter | Wrought aluminium alloy, stainless steel mesh |
| Material housing | Wrought aluminium alloy |
| Material hollow bolt | Wrought aluminium alloy |
| Material float | POM |
| Weight | 0.009 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ISV-1/8-F1A |
| EAN | 4052568727802 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Medium | Compressed air |
| Series | ISV |
| Betriebsdruck max [bar] | 0 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
