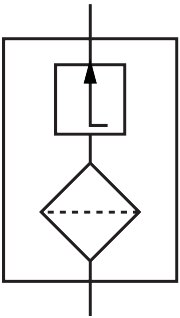

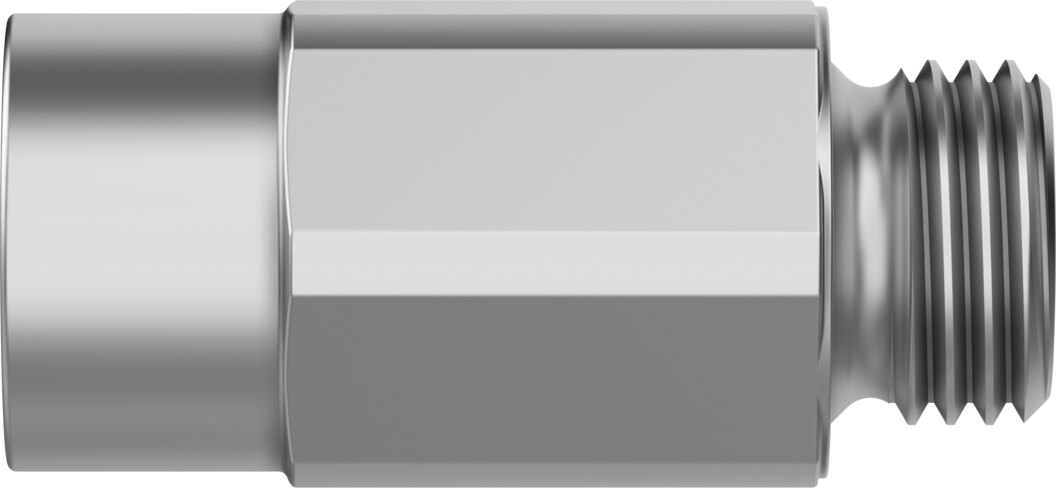

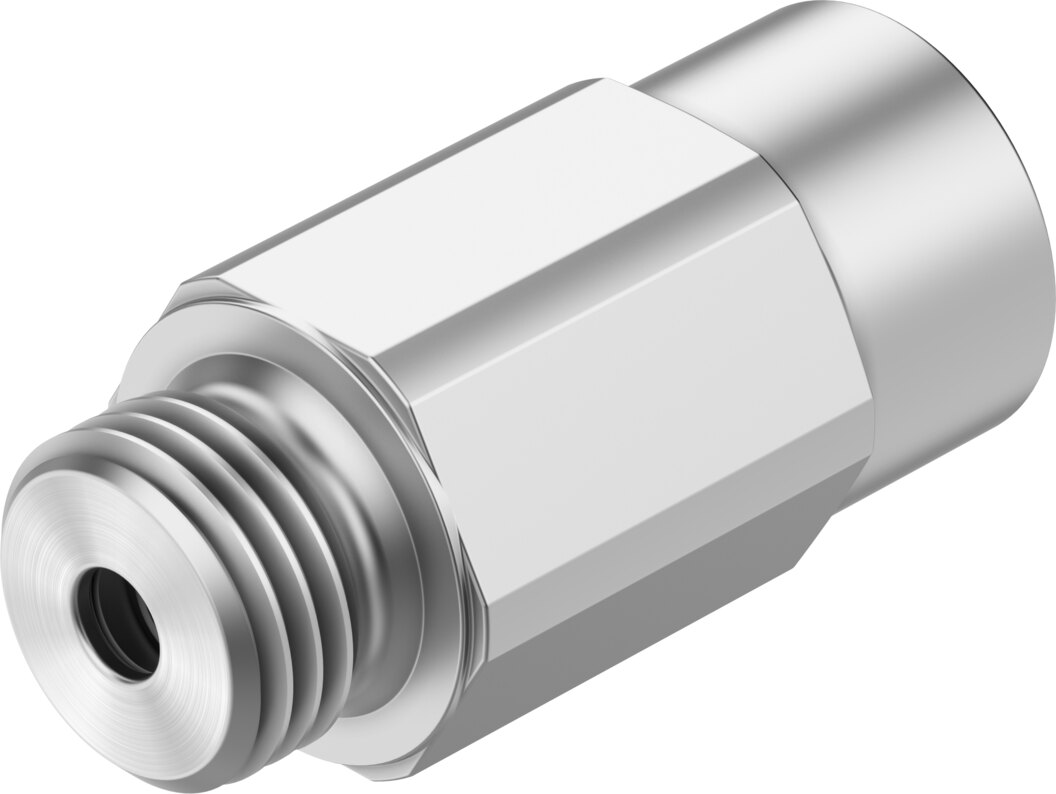

Vacuum security valve ISV-1/4-F1A - Festo 8217205
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | G1/4 |
|---|---|
| Suitable for ejector pulse | 8 bar |
| Mounting position | Any |
| Operating pressure | -0.95 ... 0 bar |
| Required suction volumetric flow at -0.05 MPa (-0.5 bar, -7.25 psi) | 1.6 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 ... 60 °C |
| Product weight | 16 g |
| Type of mounting | Screw-in |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Material spring | High-alloy steel |
| Material filter | Wrought aluminium alloy, Stainless steel mesh |
| Material housing | Wrought aluminium alloy |
| Material hollow bolt | Wrought aluminium alloy |
| Material float | POM |
| Weight | 0.016 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ISV-1/4-F1A |
| EAN | 4052568727819 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
