In service the check valve lets the medium pass in one direction only and shuts off the reverse flow by itself. The decisive figure is a cracking pressure of 1 bar. Dimensions tube 16 S (M24x1.5), made of stainless steel 1.4571.

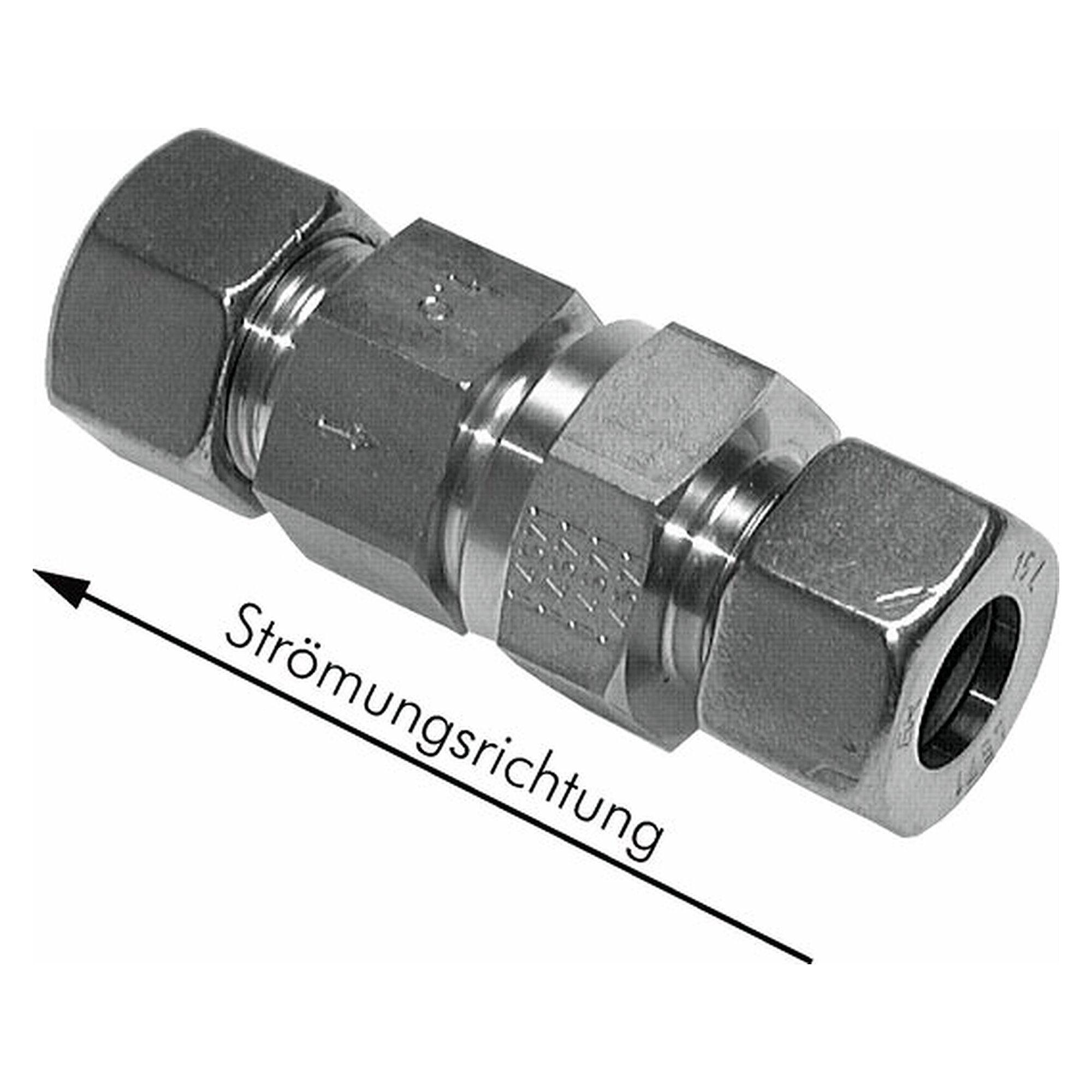

Check valve 16 S (M24x1.5), cracking pressure 1 bar, stainless steel 1.4571
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€377.48
Item
FL-032399
Manufacturer no.
RHD 16 S ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.RHD 16 S ES
EAN4050571578381
Customs tariff number73071990
ConditionNew
Artikel
FL-032399
Frequently Bought Together
-
This Item:
€377.48
-
Check valve 12 S (M20x1.5), cracking pressure 1 bar, zinc-plated steel
€32.23
-
Check valve 20 S (M30x2), cracking pressure 1 bar, stainless steel 1.4571
€598.44
Total price
This check valve lets the medium pass in one direction only and shuts off the reverse flow by itself. The article is listed with a cracking pressure of 1 bar. The stated material is stainless steel 1.4571.
Benefits
- Cracking pressure 1 bar with a tolerance of about 20 per cent.
- Working pressure up to 400 bar at the 16 S (M24x1.5) tube port.
- Temperature range -20 to +200 °C, the seal is NBR or FKM in the 1.4571 version.
- Material stainless steel 1.4571, heavy series.
- The cutting ring port joins the valve to the 16 S (M24x1.5) tube without a weld.
Technical data
| Material | stainless steel 1.4571 |
|---|---|
| Series | heavy series |
| Tube outside diameter | 16 S (M24x1.5) |
| Working pressure [bar] | 400 |
| Cracking pressure [bar] | 1 |
| Temperature range [°C] | -20 to +200 |
Applications
At accumulators and cylinders the 16 S (M24x1.5) tube port stays tight up to 400 bar.
| Weight | 0.420000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | RHD 16 S ES |
| EAN | 4050571578381 |
| Zolltarifnummer | 73071990 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | 1.4571 |
| Rohrdurchmesser (außen) | 16 S (M24x1,5) |
| Series | schwere Baureihe |
| Temperaturbereich | -20-200 °C |
