Electric parallel gripper size 28, total stroke 30 mm, EtherCAT HEPP-28-30-EC - Festo 8146668
With up to 160 N gripping force per jaw, the parallel gripper HEPP-28-30-EC grips electrically without compressed air. 15 mm stroke per jaw, repetition accuracy ± 0.04 mm, roller guide. Supplied with 24 V DC, degree of protection IP40. Cleanroom suitable to ISO 14644-1 Class 6.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

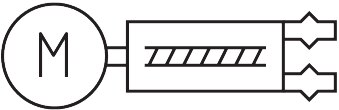

Up to 160 N gripping force per jaw: that is what the size 28 parallel gripper HEPP-28-30-EC provides. An electric motor moves both jaws in parallel. Version HEPP-28-30-EC: roller guide.
Benefits
- Up to 160 N gripping force per jaw
- Repetition accuracy ± 0.04 mm
- 15 mm stroke per jaw
- Positioning speed 40 mm/s per gripper finger, rated load 1 kg
- EtherCAT fieldbus interface
- Cleanroom suitability Class 6 according to ISO 14644-1
Applications
The HEPP-28-30-EC suits handling tasks without a compressed air supply and applications where the controller sets gripping position and gripping force. Position detection via the motor encoder. The HEPP-28-30-EC is suitable for battery production with reduced Cu/Zn/Ni values (F1a). Shipping weight 1.6 kg.
Technical data
| Size | 28 |
|---|---|
| Total stroke | 30 mm |
| Stroke per gripper jaw | 15 mm |
| Max. gripper jaw clearance Sy | 0.35 mm |
| Repetition accuracy in ± mm | 0.04 mm |
| Number of gripper jaws | 2 |
| Drive system | Electrical |
| Mounting position | Any |
| Controller operating mode | Interpolated mode via fieldbus |
| Gripper function | Parallel |
| Design | Toothed belt, Electric gripper, With ball screw |
| Guide | Roller bearing guide |
| Position detection | Motor encoder |
| Configuration support | ESI file |
| Variants | Variant without copper, zinc or nickel as main constituent (except nickel in steel, chemically nickel-plated surfaces, PCBs, cables, connectors and coils) |
| Rotor position sensor | Absolute encoder, single turn |
| Rotor position sensor, encoder measuring principle | Magnetic |
| Ready status indication | LED |
| Positioning speed per gripper finger | 40 mm/s |
| Positioning acceleration per gripper finger | 1 m/s² |
| Gripping speed per gripper finger | 3 mm/s |
| Number of MAC addresses | 4 |
| Max. current consumption | 3000 mA |
| Max. current consumption, load | 2 A |
| Max. current consumption, logic | 1 A |
| Nominal operating voltage DC | 24 V |
| Nominal voltage for logic power supply DC | 24 V |
| Nominal voltage load voltage DC | 24 V |
| Nominal motor current | 0.9 A |
| Permissible range for load power supply | ±10% |
| Permissible range for logic voltage | ±10% |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 6 according to ISO 14644-1 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Relative air humidity | Non-condensing |
| Sound pressure level | 60 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 50 °C |
| Total gripping force | 320 N |
| Gripping force per gripper jaw | 160 N |
| Mass moment of inertia | 30 kgcm² |
| Max. force on gripper jaw Fz static | 680 N |
| Max. torque at gripper Mx static | 6.5 Nm |
| Max. torque at gripper My static | 14.5 Nm |
| Max. torque at gripper Mz static | 6.5 Nm |
| Rated load | 1 kg |
| Nominal torque | 0.115 Nm |
| Lubrication interval for guide components | 1 million cycles |
| Product weight | 1400 g |
| Communication profile | CiA402, EoE (Ethernet over EtherCAT), FoE (File over EtherCAT) |
| Field bus, connection type | Socket |
| Field bus, connection system | M12x1, D-coded to EN 61076-2-101 |
| Field bus, connection pattern | 4 |
| Field bus, protocol | EtherCAT® |
| Electrical connection | 2x M12 |
| Fieldbus link | EtherCAT® |
| Type of mounting | Via female thread and centring sleeve |
| Note on materials | RoHS compliant |
| Housing material | Anodised aluminium |
| Gripper jaw material | Steel |
| Weight | 1.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | HEPP-28-30-EC |
| EAN | 4052568609672 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Actuation type | Electrical |
| Operating voltage | 24 V DC |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
