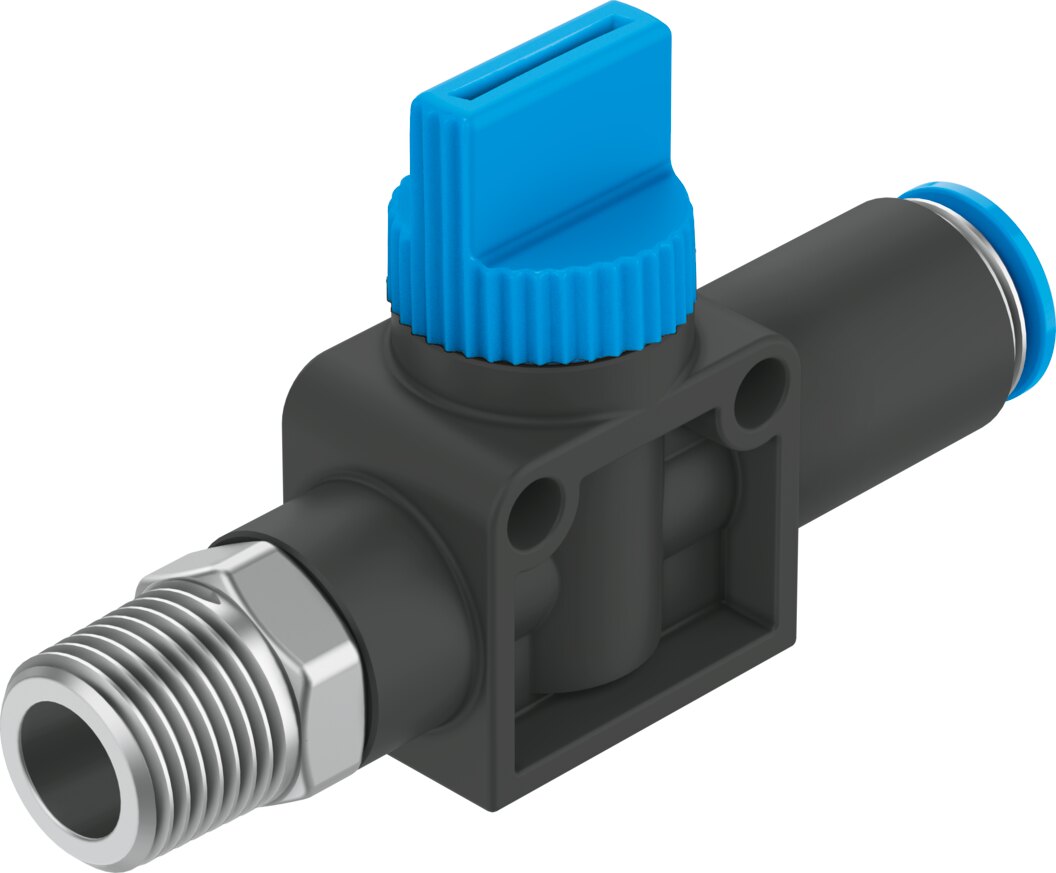

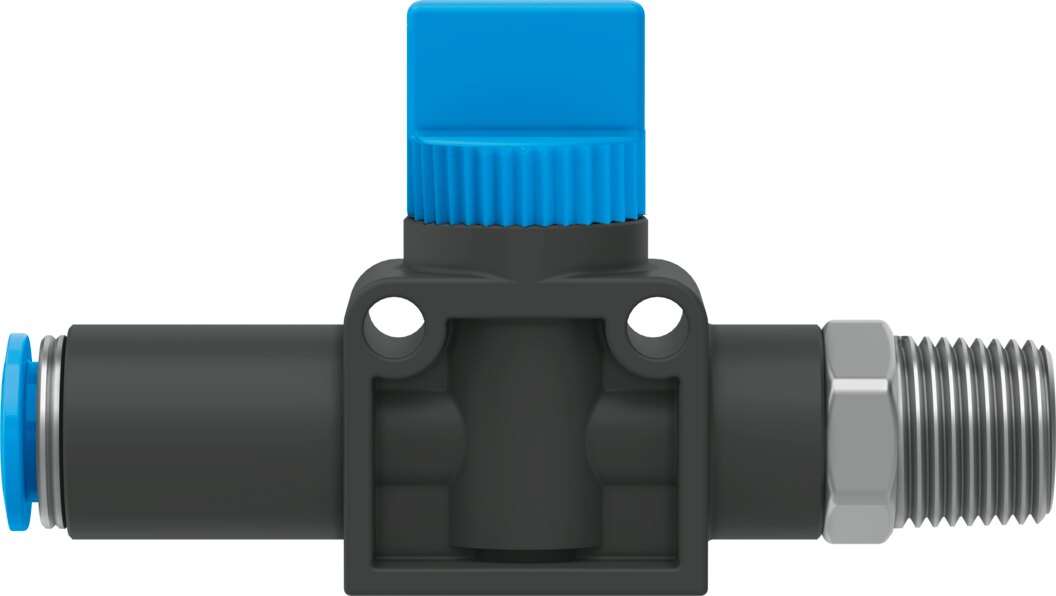

Shut-off valve 3/2-way, 1/2 NPT and QS-1/2, 770.4 l/min HE-3A-1/2-QS-1/2-U - Festo 190876

Festo ✓ Original product Brand new

The HE-3A-1/2-QS-1/2-U shut-off valve opens and closes a compressed air line by hand. Key data: ports 1/2 NPT and QS-1/2, nominal flow 770.4 l/min, operating pressure -0.95 to 10 bar. In the closed position, the outlet side is exhausted. Weight 95 g.

Net
€23.84
excl. VAT
Item FES-190876
Manufacturer no. HE-3A-1/2-QS-1/2-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

770.4 l/min standard nominal flow rate: the HE-3A-1/2-QS-1/2-U shut-off valve opens and closes a compressed air line by hand. In the closed position, the outlet side is exhausted.

Benefits

  • Flow rate: standard nominal flow rate 770.4 l/min
  • Pressure range: -0.95 to 10 bar operating pressure
  • Connections: QS-1/2, 1/2 NPT
  • Cleanroom and paint compatibility: class 4 to ISO 14644-1, LABS conformity VDMA24364-B2-L
  • Corrosion protection: CRC 2 - moderate corrosion stress
  • Materials: housing reinforced PBT, seals NBR

Applications

Used to shut off individual consumers or sub-circuits, for example during maintenance or changeover. Operating medium: compressed air to ISO 8573-1:2010 [7:-:-]. Mounting: direct mounting via through-hole, direct mounting via thread. Once lubricated, lubrication must continue.

Technical data

TypeHE-3A-1/2-QS-1/2-U
Festo part number190876
Valve function3/2-way, bistable
Additional functionWith exhaust function
Pneumatic connection, port 1QS-1/2
Pneumatic connection, port 21/2 NPT
Type of actuationManual
Type of mountingDirect mounting via through-hole, direct mounting via thread
Standard nominal flow rate770.4 l/min
Nominal size4.6 mm
Operating pressure-0.95 to 10 bar
Ambient temperature0 to 60 °C
Material housingReinforced PBT
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Exhaust air functionCannot be throttled
Sealing principleSoft
Mounting positionAny
DesignPiston spool
Type of pilotingDirect
Flow directionNon-reversible
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Cleanroom suitability (measured to ISO 14644-14)Class 4 to ISO 14644-1
Medium temperature0 to 60 °C
Product weight87 g
Pneumatic connection, port 3Not ducted
Note on materialsRoHS-compliant
Material sealsNBR
Weight (shipping)95 g
Weight0.095 kg
ManufacturerFesto
Hersteller-NrHE-3A-1/2-QS-1/2-U
EAN4052568324520
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
ThreadNPT 1/2
Nominal size DN [mm]4,6
Seal materialNBR
MediumCompressed air
Function3/2 bistable
Actuation typeManually
SeriesHE
Betriebsdruck max [bar]10
Temperaturbereich0-60 °C
Temperature (max.)60
