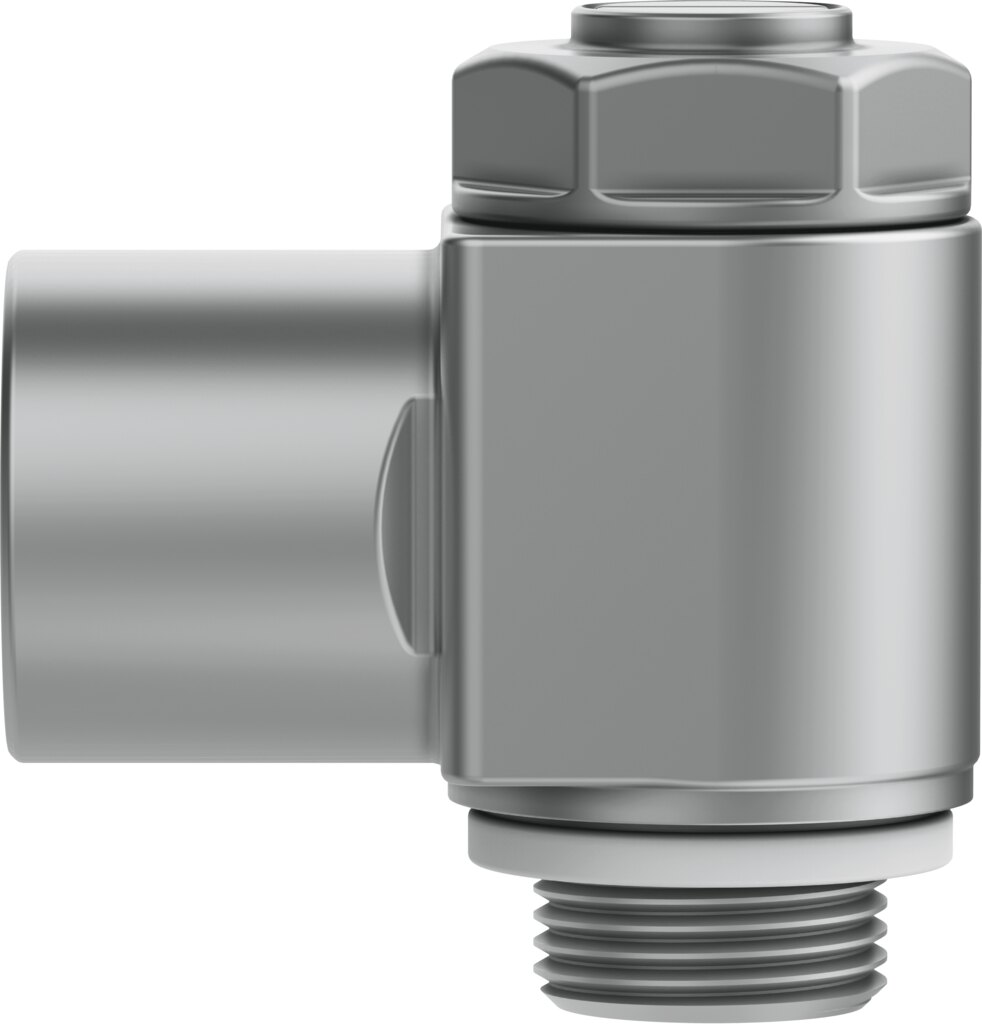

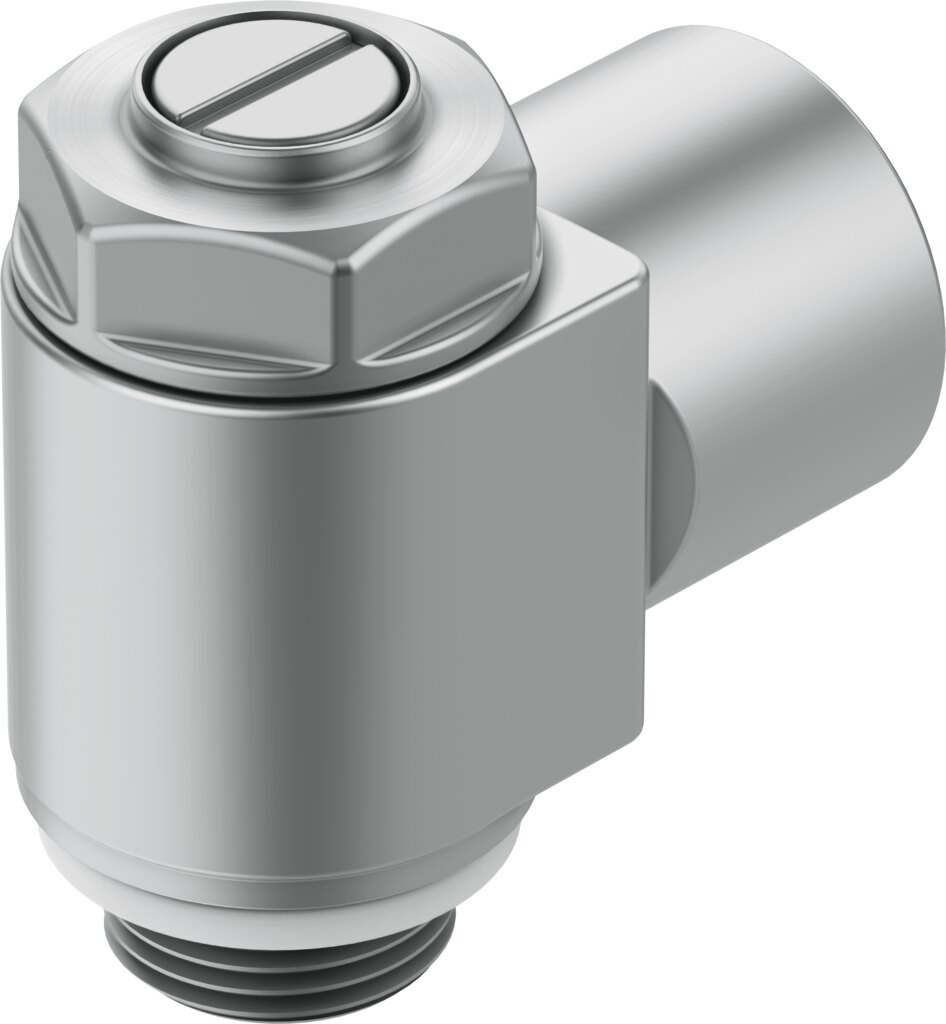

One-way flow control valve GRLA-3/8-NPT-B - Festo 151555
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | Exhaust air one-way flow control function |
|---|---|
| Pneumatic connection, port 1 | 3/8 NPT |
| Pneumatic connection, port 2 | 3/8 NPT |
| Adjustment component | Slotted head screw |
| Type of mounting | Screw-in |
| Ambient temperature | -10 ... 60 °C |
| Operating pressure complete temperature range | 0.3 ... 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Media temperature | -10 ... 60 °C |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material hollow bolt | Wrought aluminium alloy |
| Material adjusting screw | Brass |
| Material nut | Wrought aluminium alloy |
| Material swivel fitting | Die-cast zinc |
| Weight | 0.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | GRLA-3/8-NPT-B |
| EAN | 4052568310110 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
