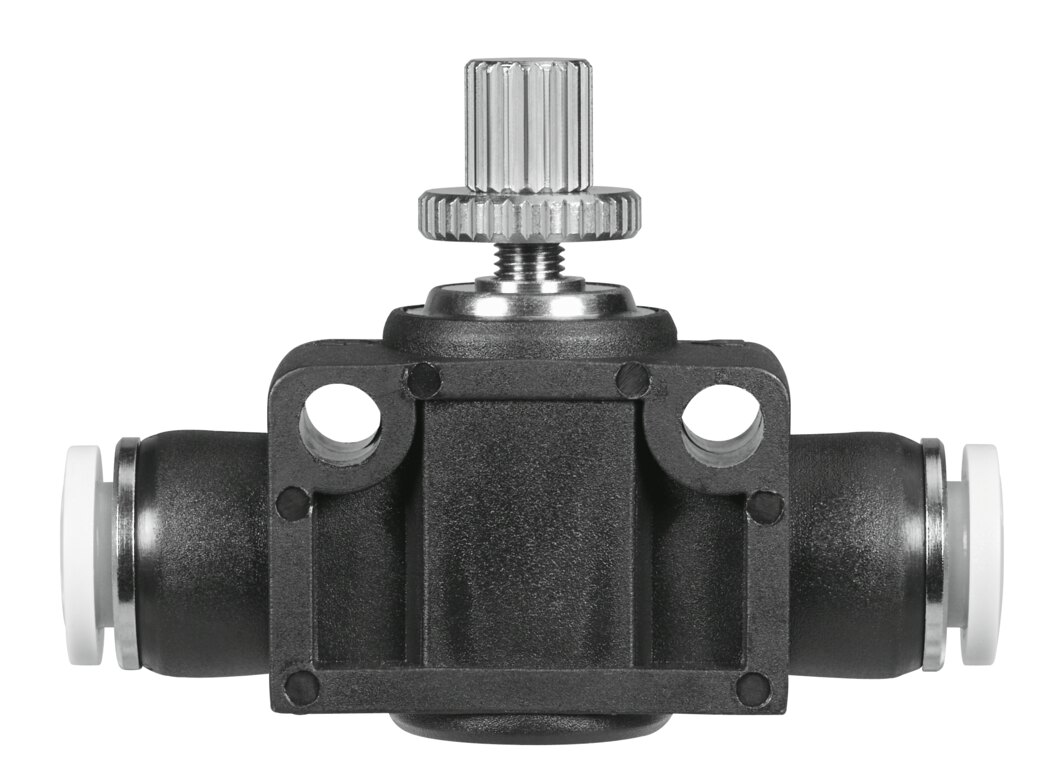

One-way flow control valve QB-1/2, 1779.66 l/min GR-QB-1/2-U - Festo 534685
GR-QB-1/2-U limits the flow in the flow control direction, adjustably. At a glance: port QB-1/2, nominal flow in flow control direction 1779.66 l/min, operating pressure -0.951 to 7.998 bar. The return flow of 1372.881 to 1614.407 l/min passes freely through the check valve. Weight 110 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
1779.66 l/min standard nominal flow rate in flow control direction: GR-QB-1/2-U limits the flow in the flow control direction, adjustably. The return flow of 1372.881 to 1614.407 l/min passes freely through the check valve.
Benefits
- Flow rate: standard nominal flow rate in flow control direction 1779.66 l/min, in non-return direction 1372.881 to 1614.407 l/min
- Pressure range: -0.951 to 7.998 bar operating pressure
- Connections: QB-1/2
- Paint compatibility: LABS conformity VDMA24364 zone III
- Materials: housing reinforced PBT, seals NBR
- Temperature: 0 to 60 °C ambient temperature
Applications
It is used for speed control of cylinders and rotary actuators. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: with through-hole. Once lubricated, lubrication must continue.
Technical data
| Type | GR-QB-1/2-U |
|---|---|
| Festo part number | 534685 |
| Valve function | One-way flow control function |
| Pneumatic connection, port 1 | QB-1/2 |
| Pneumatic connection, port 2 | QB-1/2 |
| Type of actuation | Manual |
| Adjustment component | Slotted screw |
| Type of mounting | With through-hole |
| Standard nominal flow rate in flow control direction | 1779.66 l/min |
| Standard nominal flow rate in non-return direction | 1372.881 to 1614.407 l/min |
| Operating pressure | -0.951 to 7.998 bar |
| Ambient temperature | 0 to 60 °C |
| Material housing | Reinforced PBT |
| Mounting position | Any |
| Standard flow rate in flow control direction (6 to 0 bar) | 2949.2 l/min |
| Standard flow rate in non-return direction (6 to 0 bar) | 2110.169 to 2567.797 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Medium temperature | 0 to 60 °C |
| Product weight | 119.07 g |
| Material screw-in stud | Nickel-plated brass |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material release ring | POM |
| Material knurled head | Nickel-plated brass |
| Material adjusting screw | Nickel-plated brass |
| Weight (shipping) | 110 g |
| Weight | 0.11 kg |
| Manufacturer | Festo |
| Hersteller-Nr | GR-QB-1/2-U |
| EAN | 4052568342241 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Seal material | NBR |
| Medium | Compressed air |
| Function | Throttle check valve function |
| Actuation type | Manually |
| Series | GR |
| Betriebsdruck max [bar] | 7 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
