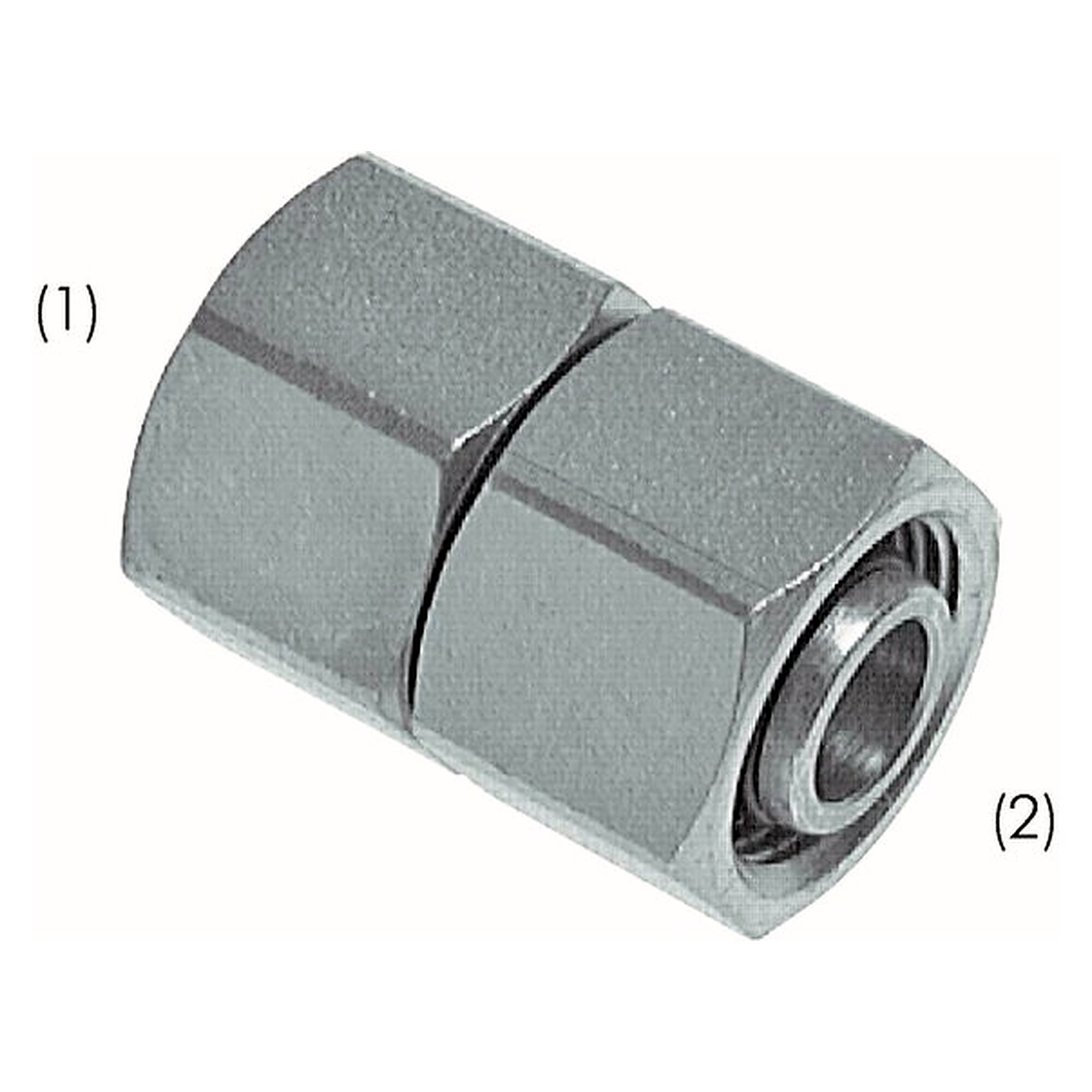

Tube union, straight design, tube stud 8 S, second tube stud 8 S, heavy series S, zinc plated steel

This tube union is designed for a tube stud 8 S and a second tube stud 8 S. The part clamps the cutting ring onto the tube and seals metal to metal. The operating pressure reaches up to 630 bar. The straight design carries the medium through the part without deflection.

Benefits

• The operating pressure up to 630 bar is released for this size
• The temperature range from -35 °C to +100 °C covers cold installation and warm machine surroundings
• Zinc plated steel carries the load of the joint in the range from -35 °C to +100 °C
• The heavy series with the code S follows the dimension series to ISO 8434-1
• The cutting ring bites into the tube wall and holds the tube even under pressure surges

Technical data

Applications

Pipework on presses and pumps, repair of existing tube fittings, test benches and power unit construction, hydraulic lines in machine and plant engineering.

Standards and conformity

The tube fitting follows the design of cutting ring tube fittings to ISO 8434-1, formerly DIN 2353.
