The male stud coupling connects a precision tube through a cutting ring to a metric male stud thread. The underlying rating is a working pressure of 160 bar. M 42x2, tube 35 L (M45x2) in stainless steel 1.4571.
Straight stud coupling, M 42x2 - tube 35 L, stainless steel 1.4571
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€161.09
Item
FL-030791
Manufacturer no.
GE 35 LM ES ED
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.GE 35 LM ES ED
EAN4050571322014
Customs tariff number73071990
ConditionNew
Artikel
FL-030791
Frequently Bought Together
-
This Item:
€161.09
-
Straight stud coupling, M 22x1.5 - tube 18 L, stainless steel 1.4571, NC clamping ring
€77.73
-
Straight stud coupling, M 20x1.5 - tube 14 S, zinc-plated steel, without nut and cutting ring
€5.58
Total price
In use, the male stud coupling connects a precision tube through a cutting ring to a metric male stud thread. This version is listed with male stud thread M 42x2 and tube connection 35 L (M45x2). Its rating is a working pressure of 160 bar.
Benefits

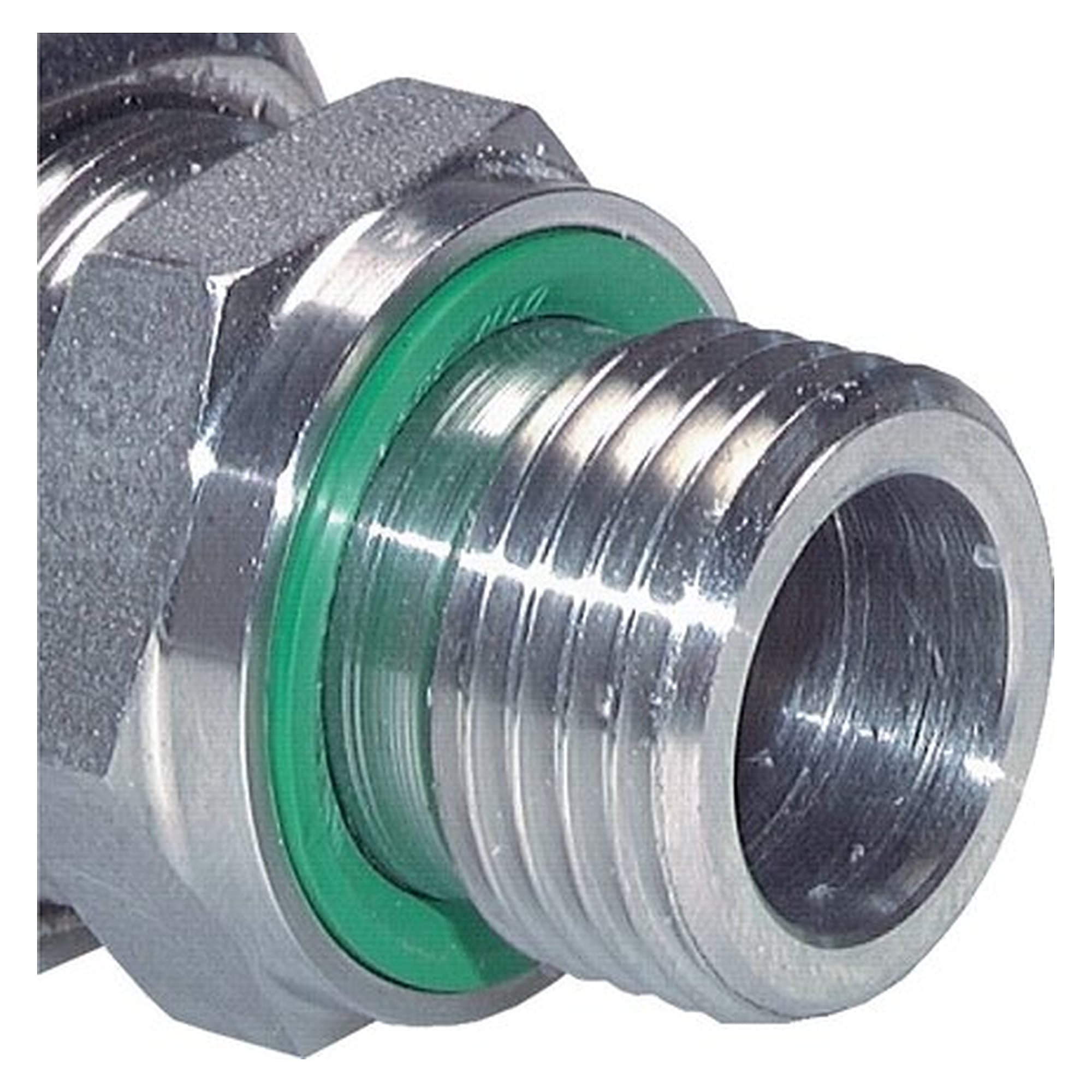

- Male stud thread M 42x2 with an elastomer seal, so the stud end seals without any additional material.
- For tube 35 L (M45x2), light series.
- Working pressure up to 160 bar.
- Temperature range -20 to +200 °C with the elastomer seal.
- Body made of stainless steel 1.4571 for use on hydraulic lines.
Technical data
| Material designation | stainless steel 1.4571 |
|---|---|
| Series | light series |
| Tube diameter outside | 35 L (M45x2) |
| Male stud thread | M 42x2 |
| Working pressure [bar] | 160 |
| Temperature range [°C] | -20 to +200 |
| Body material | stainless steel 1.4571 |
Applications
In plant construction the version in stainless steel 1.4571 connects tube 35 L (M45x2) to the device without hemp or adhesive.
Standards and conformity
For tube 35 L (M45x2) the usual cutting ring procedure applies, and thin-walled tubes need a reinforcing sleeve.
| Weight | 0.460000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | GE 35 LM ES ED |
| EAN | 4050571322014 |
| Zolltarifnummer | 73071990 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | 1.4571 |
| Einschraubgewinde | M 42x2 |
| Rohrdurchmesser (außen) | 35 L (M45x2) |
| Series | leichte Baureihe |
| Temperaturbereich | -20-200 °C |
