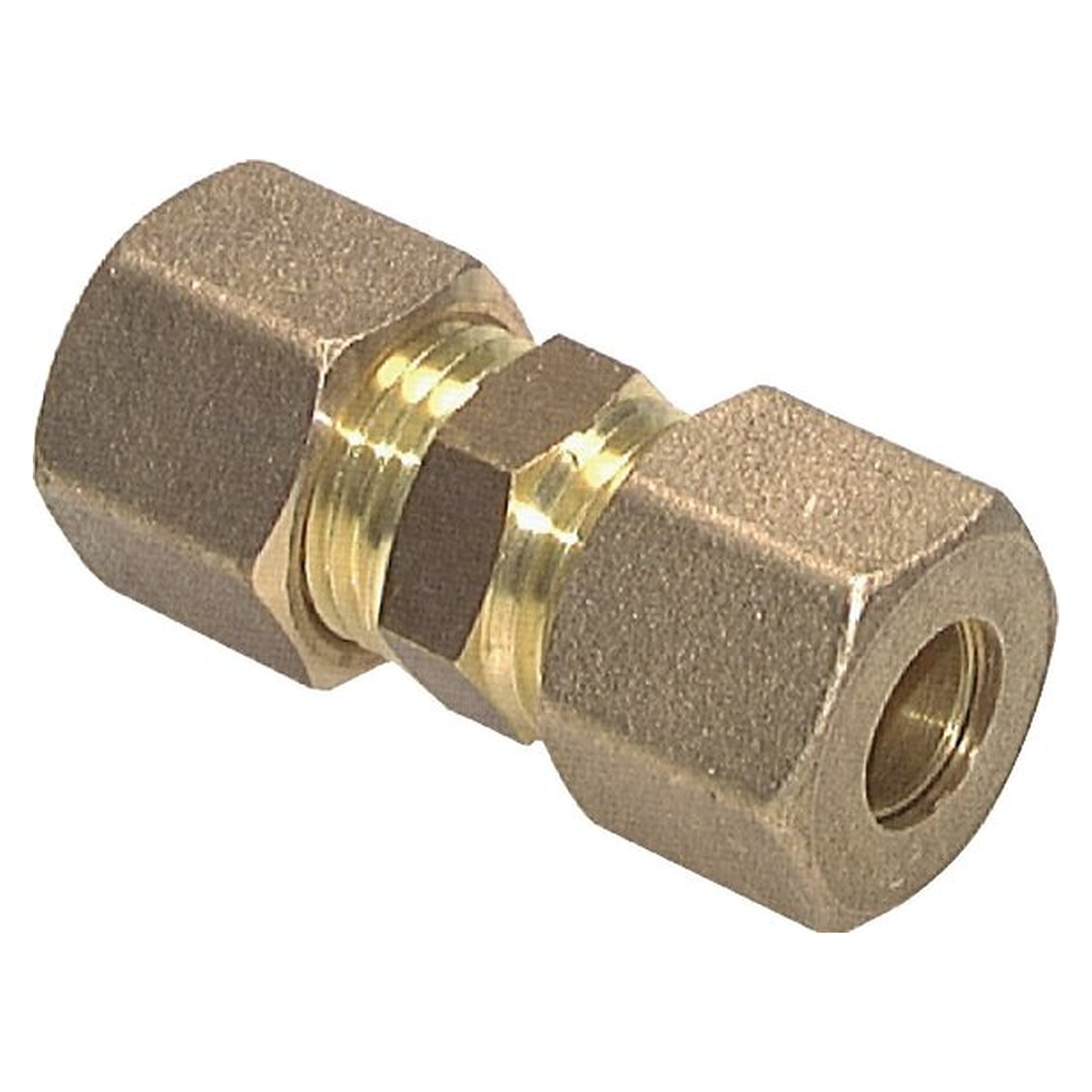

Compression fitting, straight design, tube 8 (M12x1) mm, brass

The compression fitting connects a tube of 8 (M12x1) mm outside diameter and the continuing line. The operating pressure reaches up to 135 bar with hard copper tube. The straight design carries the medium through the part without deflection.

Benefits

• With tube diameter 8 (M12x1) mm the size is fixed, so no reworking of the line is required
• The operating pressure up to 135 bar with hard copper tube is released for this size
• The temperature range from -60 °C to +300 °C covers cold installation and warm machine surroundings
• Brass as material covers the released range from -60 °C to +300 °C

Technical data

Applications

Copper pipework in plants and buildings, lubrication and cooling lines on machine tools, measuring lines and pressure gauge connections, maintenance of existing pipework.

Standards and conformity

The brass compression fittings cannot be combined with cutting ring tube fittings to ISO 8434-1, formerly DIN 2353.
