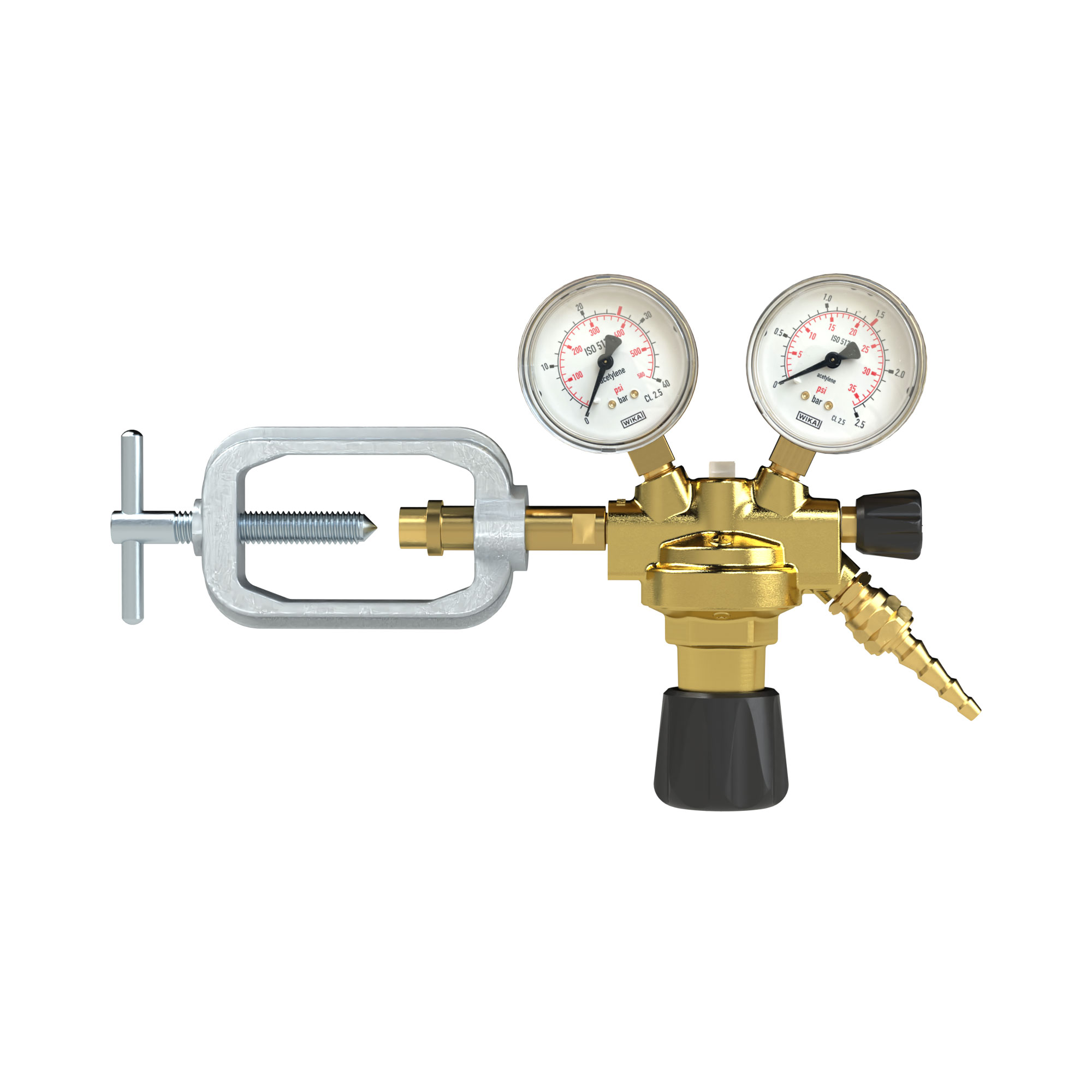

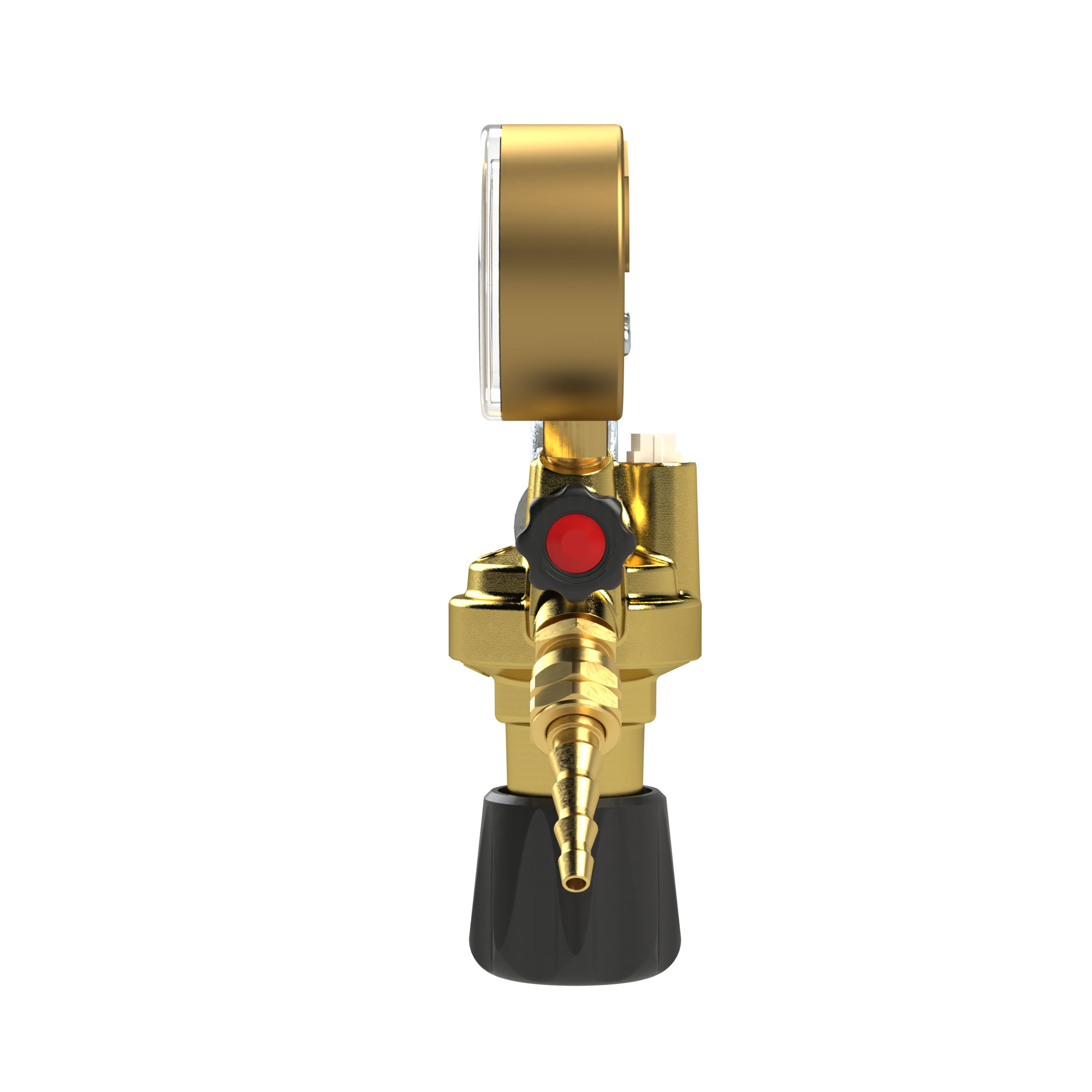

Cylinder pressure reducer, acetylene, cylinder pressure 25 bar, working pressure 0 to 1.5 bar, type FDM025.C2H2.1,5 - Riegler 146761
The single-stage cylinder pressure reducer FDM025.C2H2.1,5 reduces the pressure of a 25 bar cylinder for acetylene to an adjustable working pressure of 0 to 1.5 bar. Cylinder connection yoke, contents gauge 0 to 25/40 bar, body made of pressed brass.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The single-stage cylinder pressure reducer FDM025.C2H2.1,5 reduces the pressure of a 25 bar cylinder for acetylene to an adjustable working pressure of 0 to 1.5 bar. Shut-off valve and safety valve are built in, separate gauges show cylinder contents and working pressure. Type FDM025.C2H2.1,5 is built to DIN EN ISO 2503.
Benefits
- Working pressure adjustable 0 to 1.5 bar.
- For 25 bar cylinder pressure.
- Cylinder connection yoke.
- Design to DIN EN ISO 2503.
- Body made of pressed brass.
Applications
For welding, cutting and test stations drawing acetylene from the cylinder at constant pressure, version for flammable gases.
Technical data
| Type | FDM025.C2H2.1,5 |
|---|---|
| Cylinder connection | yoke |
| Gas type | acetylene |
| Contents gauge indicating range | 0 to 25/40 bar |
| Working pressure | 0 to 1.5 bar |
| Material | pressed brass |
| Cylinder pressure | 25 bar |
| Weight | 1.95 kg |
| Manufacturer | Riegler |
| Hersteller-Nr | FDM025.C2H2.1,5 |
| EAN | 4047322784474 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Italy |
| Housing material | Pressed brass |
| Working pressure max. [bar] | 1,5 |
| Anzeigebereich [bar] | 0 - 25/40 |
| Norm | DIN 477, DIN EN ISO 2503 |
| Betriebsdruck max [bar] | 1.5 |
