In service the cylinder switch reports the position of the magnetic piston from the T-slot of the cylinder without contact. The decisive figure is the operating voltage 10 - 30 V (AC / DC). The dimensions come to sensor type three-wire reed sensor with a yellow LED, connecting lead 3 mtr., 3x 0,14 mm².

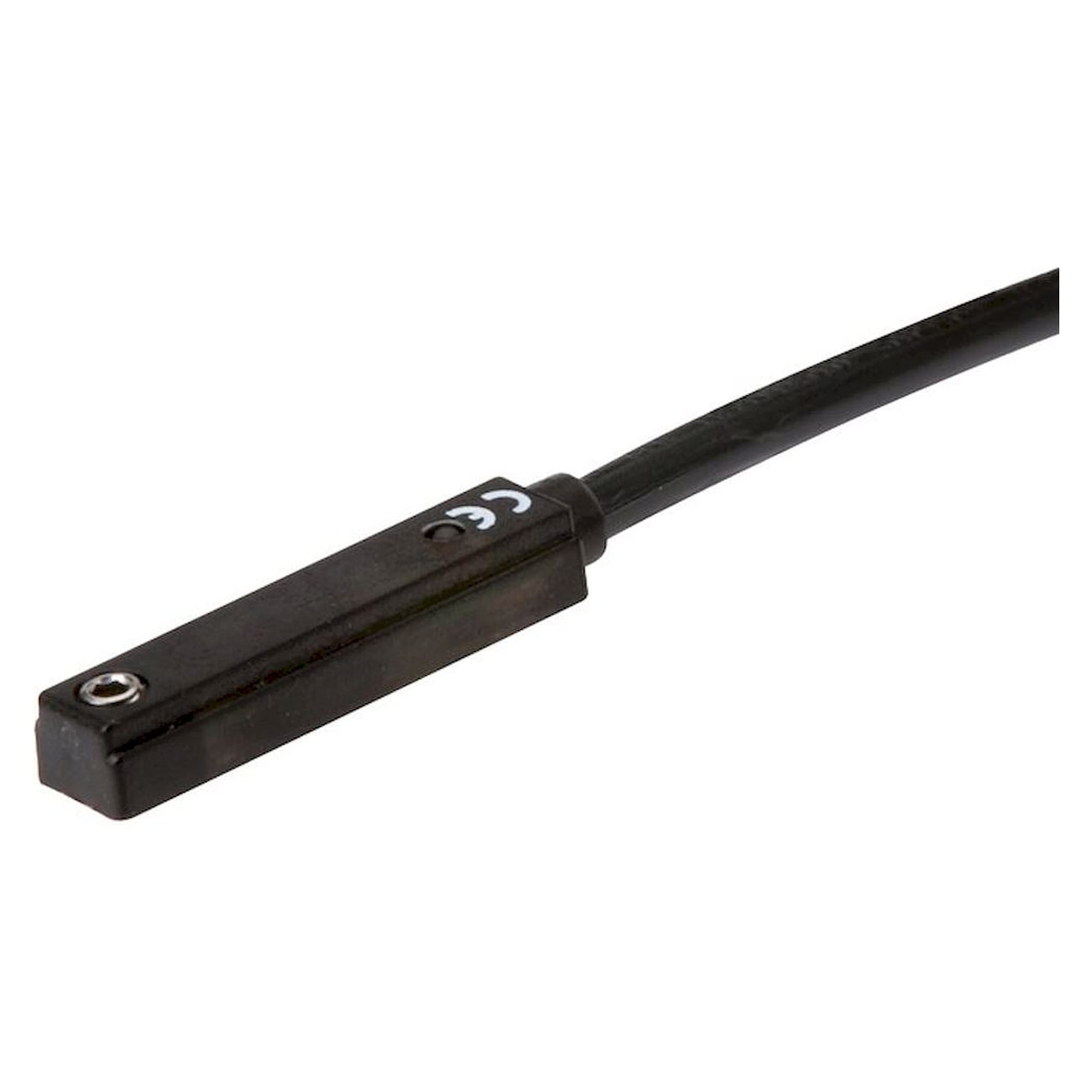

Cylinder switch for a 5 mm T-slot, three-wire reed sensor, yellow LED, lead 3 m
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€29.30
Item
FL-027885
Manufacturer no.
ZSA 13
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.ZSA 13
EAN4050571816933
Customs tariff number85365019
ConditionNew
Artikel
FL-027885
Frequently Bought Together
-
This Item:
€29.30
-
Cable with M8 coupling, 4-wire, 5 m, straight
€11.27
-
Ind. proximity switch, M 18, SN8 - Cable (2 m)
€54.24
Total price
This cylinder switch reports the position of the magnetic piston from the T-slot of the cylinder without contact. The data sheet gives the operating voltage 10 - 30 V (AC / DC).
Benefits
- Operating voltage 10 - 30 V (AC / DC) with the switching function normally open contact.
- Maximum switching current 500 mA and maximum power 10 W / VA.
- Connecting lead 3 mtr., 3x 0,14 mm².
- Temperature range -20 to +70 °C, protection class IP 67.
- Max. switching current 500 mA.
Technical data
| Sensor type | three-wire reed sensor with a yellow LED |
|---|---|
| Operating voltage | 10 - 30 V (AC / DC) |
| Switching function | normally open contact |
| Max. switching current [mA] | 500 |
| Maximum power | 10 W / VA |
| Connecting lead | 3 mtr., 3x 0,14 mm² |
| Protection class | IP 67 |
| Temperature range [°C] | -20 to +70 |
| Sensor design | three-wire reed sensor |
| Status indicator | yellow LED |
| Lead length [m] | 3 |
Applications
The cylinder switch is used wherever it has to report the piston position from the T-slot without contact.
| Hersteller-Nr | ZSA 13 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571816933 |
| Weight | 0.047000 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
