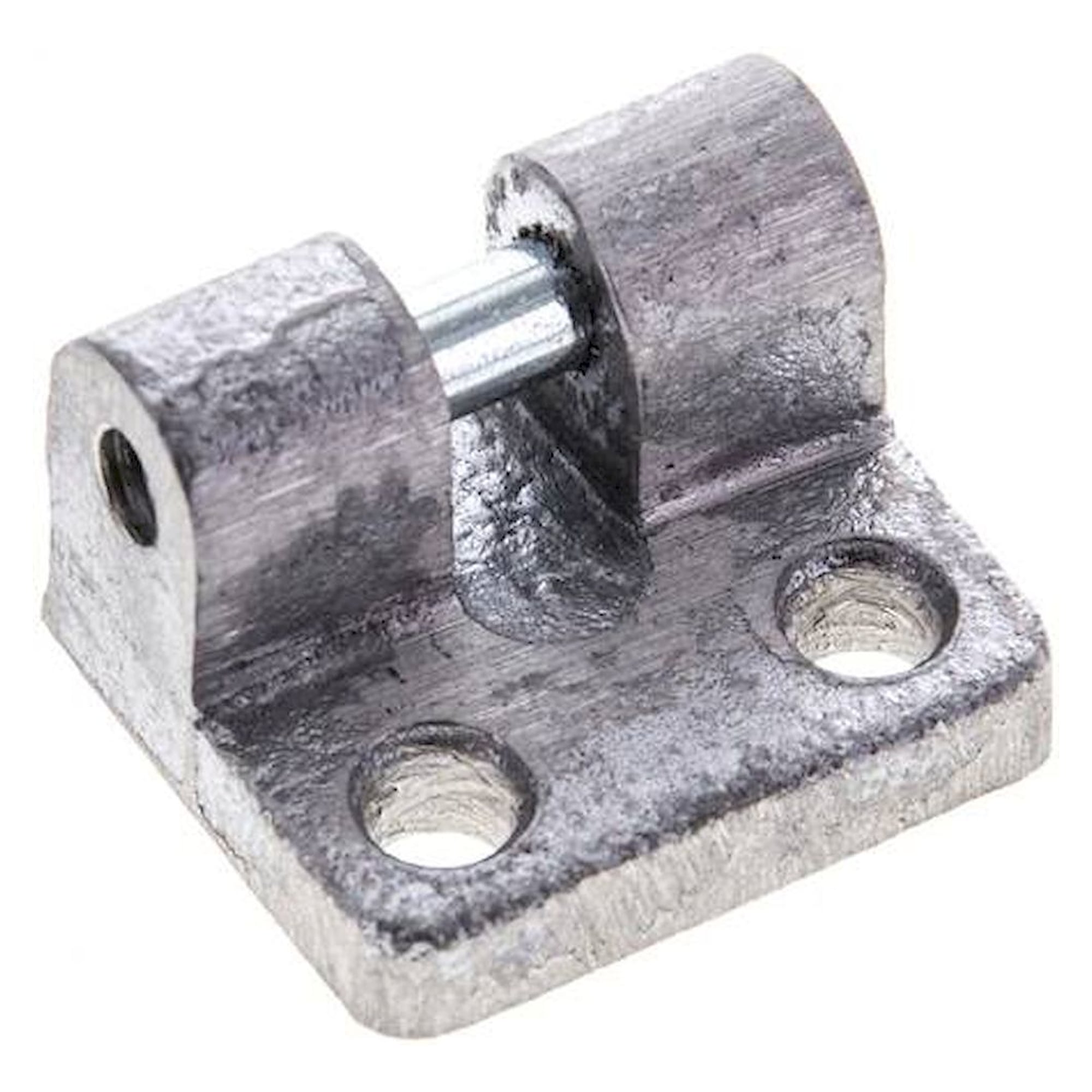

Schwenklager für RWA-Zylinder
Schwenklager für RWA-Zylinder
FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€14.53 €12.21
Item FL-033968
Manufacturer no. ZDRA SLK
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.ZDRA SLK
EAN4050571815530
Customs tariff number84123100
ConditionNeu
Artikel
FL-033968
Frequently Bought Together
- This Item: €14.53 €12.21
- Schwenkbefestigung für RWA-Zylinder mit 2 Verschraubungen €66.71 €56.06
- Double acting cylinder for RWA light domes 500 mm stroke €409.67 €344.26
Application:
For actuating smoke and heat exhausting systems such as roof flaps, skylight domes, skylights, louvers, top-hung, bottom-hung and side-hung windows. The cylinders are fitted with mechanical locking in both end positions. Thus, the respective position is retained even if there is a compressed air failure. The locking can be nullified even without compressed air with a manual emergency actuation.
Materials:
Body: Anodized aluminium, Swivel fastening: Steel, galvanized
Temperature range:
max. +100 °C
Operating pressure:
max. 30 bar
Pressure force at operating pressure:
6 bar: 361 N - 10 bar: 602 N - 15 bar: 903 N - 20 bar: 1,204 N - 25 bar: 1,505 N - 30 bar: 1,806 N
For actuating smoke and heat exhausting systems such as roof flaps, skylight domes, skylights, louvers, top-hung, bottom-hung and side-hung windows. The cylinders are fitted with mechanical locking in both end positions. Thus, the respective position is retained even if there is a compressed air failure. The locking can be nullified even without compressed air with a manual emergency actuation.
Materials:
Body: Anodized aluminium, Swivel fastening: Steel, galvanized
Temperature range:
max. +100 °C
Operating pressure:
max. 30 bar
Pressure force at operating pressure:
6 bar: 361 N - 10 bar: 602 N - 15 bar: 903 N - 20 bar: 1,204 N - 25 bar: 1,505 N - 30 bar: 1,806 N
| Version | Piston rod hinge |
| Hersteller-Nr | ZDRA SLK |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571815530 |
| Weight | 0.032000 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
| Position sensing | No |
