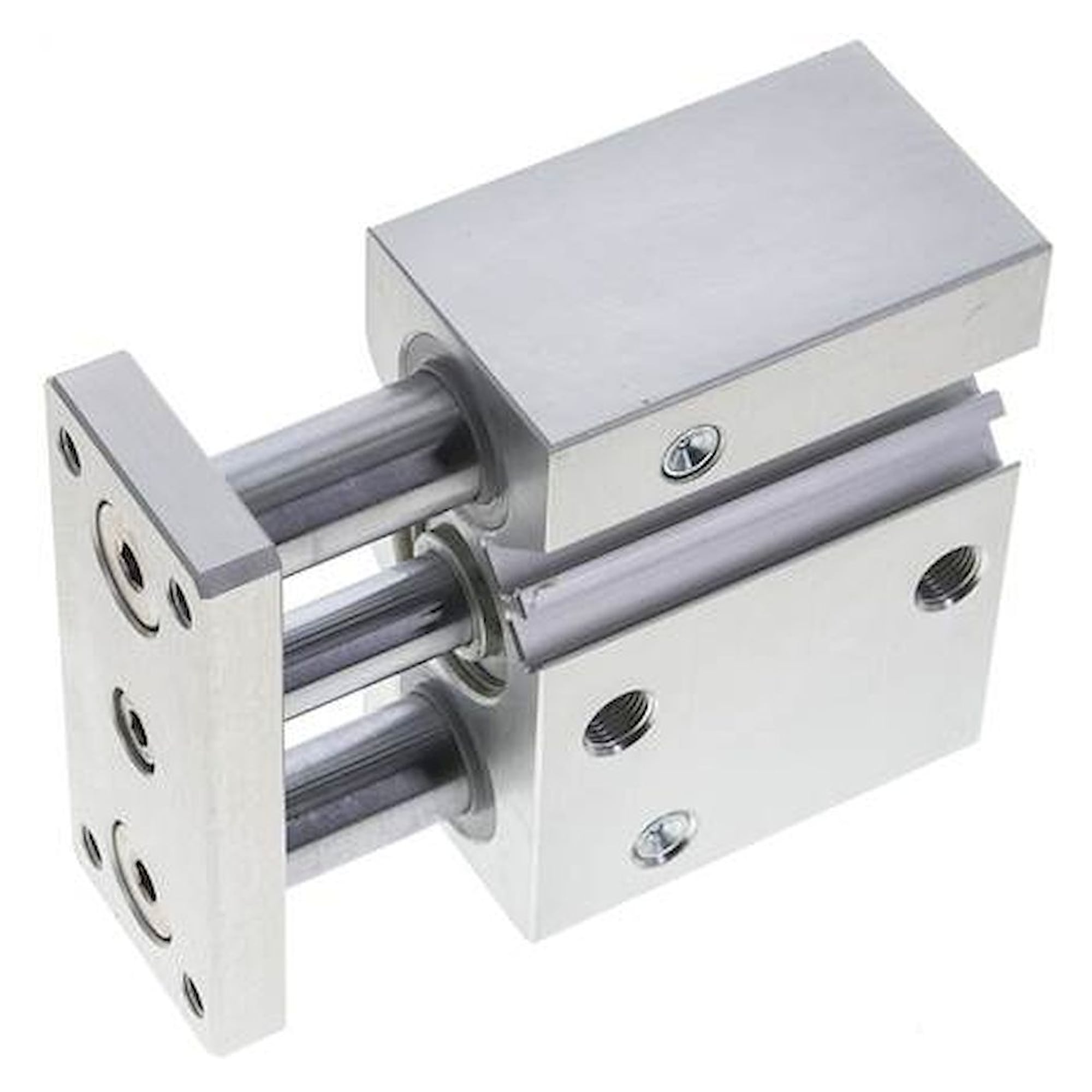

Guide cylinder, with ball bushing, pistons 50mm,stroke 75mm
Guide cylinder, with ball bushing, pistons 50mm,stroke 75mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€603.80
Item
FL-045588
Manufacturer no.
ZDFM 50/75 K
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.ZDFM 50/75 K
EAN4050571810870
Customs tariff number84123100
ConditionNew
Artikel
FL-045588
Frequently Bought Together
-
This Item:
€603.80
-
EMC SGM 25/100. Führungszylinder, mit Gleitlager, Kolben 25mm,Hub 100mm
€168.44
-
Guide cylinder, with ball bushing, pistons 20mm,stroke 100mm
€378.98
Total price
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
| Piston diameter [mm] | 50 |
| Stroke [mm] | 75 |
| Version | with ball bushing |
| F (compressed air port) | G 1/4" |
| lateral force permissible [N] | 393 |
| permissible torque at the end-plate [Nm] | 10,80 |
| A [mm] | 12 |
| B [mm] | 25,0 |
| C [mm] | 25 |
| D [mm] | 20 |
| E1 [mm] | 120 |
| E2 [mm] | 40 |
| E3 [mm] | 46,5 |
| F1 [mm] | 14,0 |
| F2 [mm] | 11 |
| F3 [mm] | 27 |
| G1 [mm] | 138 |
| G2 [mm] | 56 |
| H [mm] | 100 |
| H1 [mm] | 100 |
| L1 [mm] | 44,0 |
| L2 [mm] | 58,0 |
| L3 [mm] | 83,0 |
| M1 [mm] | 140 |
| M2 [mm] | 59 |
| N [mm] | 44 |
| O1 [mm] | 17 |
| O2 [mm] | 10 |
| O3 [mm] | 124 |
| P1 | M 10 |
| P2 | M 8 |
| Q [mm] | 25 |
| R [mm] | 12,5 |
| T1 [mm] | 1,5 |
| T2 [mm] | 1,5 |
| Hersteller-Nr | ZDFM 50/75 K |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571810870 |
| Weight | 3.500000 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
