Guide cylinder, with ball bushing, pistons 32mm,stroke 75mm
Guide cylinder, with ball bushing, pistons 32mm,stroke 75mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€591.19
€496.80
Item
FL-045904
Manufacturer no.
ZDFM 32/75 K
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.ZDFM 32/75 K
EAN4050571810610
Customs tariff number84123100
ConditionNew
Artikel
FL-045904
Frequently Bought Together
-
This Item:
€591.19 €496.80
-
Guide cylinder, with ball bushing, pistons 25mm,stroke 50mm
€429.22 €360.69
-

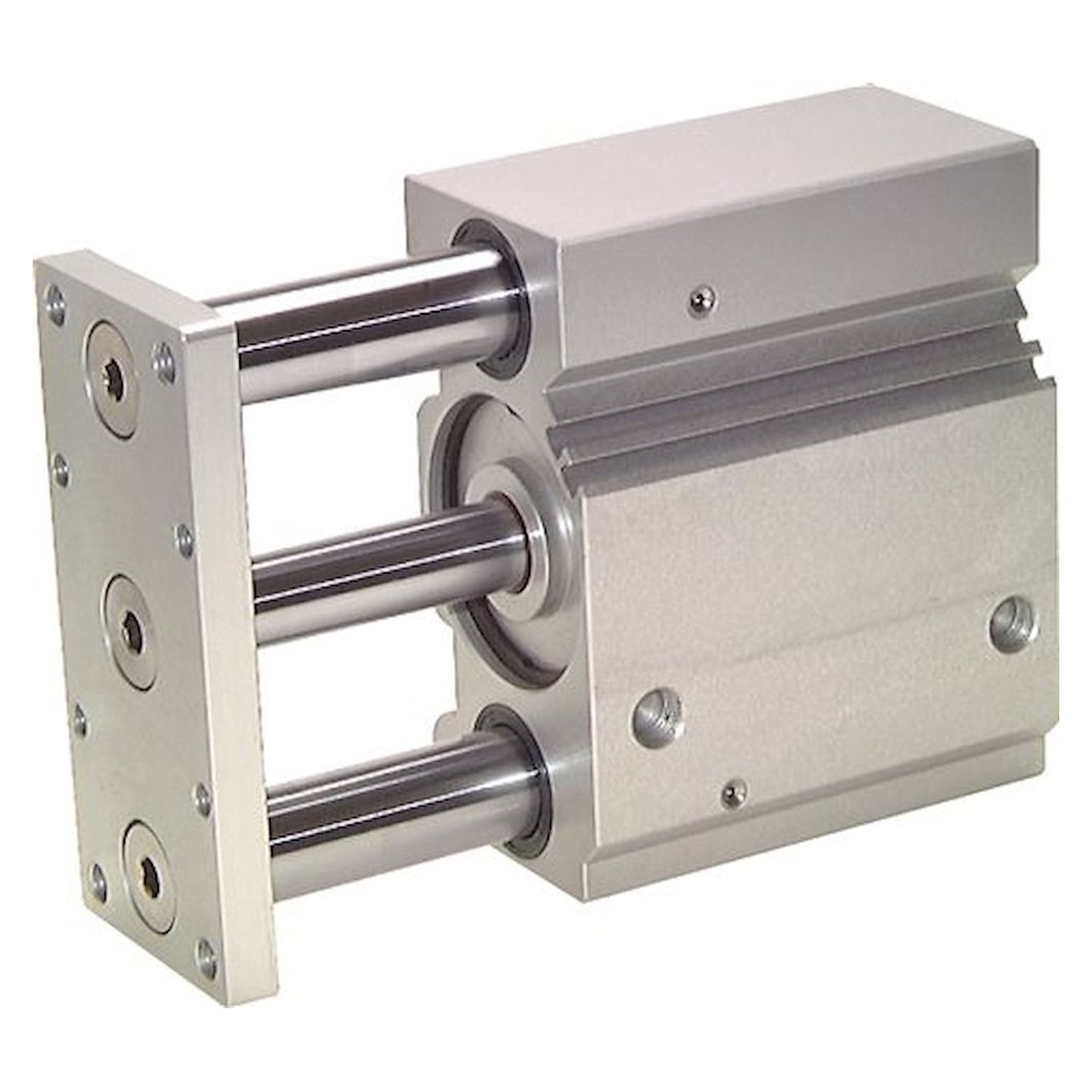

Guide cylinder, with slide bearing, pistons 50mm,stroke 50mm
€540.38 €454.10
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
| Piston diameter [mm] | 32 |
| Stroke [mm] | 75 |
| Version | with ball bushing |
| F (compressed air port) | G 1/8" |
| lateral force permissible [N] | 276 |
| permissible torque at the end-plate [Nm] | 2,96 |
| A [mm] | 10 |
| B [mm] | 24,0 |
| C [mm] | 20 |
| D [mm] | 16 |
| E1 [mm] | 96 |
| E2 [mm] | 30 |
| E3 [mm] | 32,5 |
| F1 [mm] | 12,5 |
| F2 [mm] | 9 |
| F3 [mm] | 14 |
| G1 [mm] | 112 |
| G2 [mm] | 48 |
| H [mm] | 80 |
| H1 [mm] | 80 |
| L1 [mm] | 37,5 |
| L2 [mm] | 49,5 |
| L3 [mm] | 73,5 |
| M1 [mm] | 114 |
| M2 [mm] | 51 |
| N [mm] | 38 |
| O1 [mm] | 16 |
| O2 [mm] | 5 |
| O3 [mm] | 100 |
| P1 | M 8 |
| P2 | M 6 |
| Q [mm] | 20 |
| R [mm] | 11,0 |
| T1 [mm] | 1,5 |
| T2 [mm] | 1,5 |
| Hersteller-Nr | ZDFM 32/75 K |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571810610 |
| Weight | 2.200000 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
Customers Who Bought This Item Also Bought
Guide cylinder, with ball bushing, pistons 80mm,stroke 25mm
€770.72
€647.66

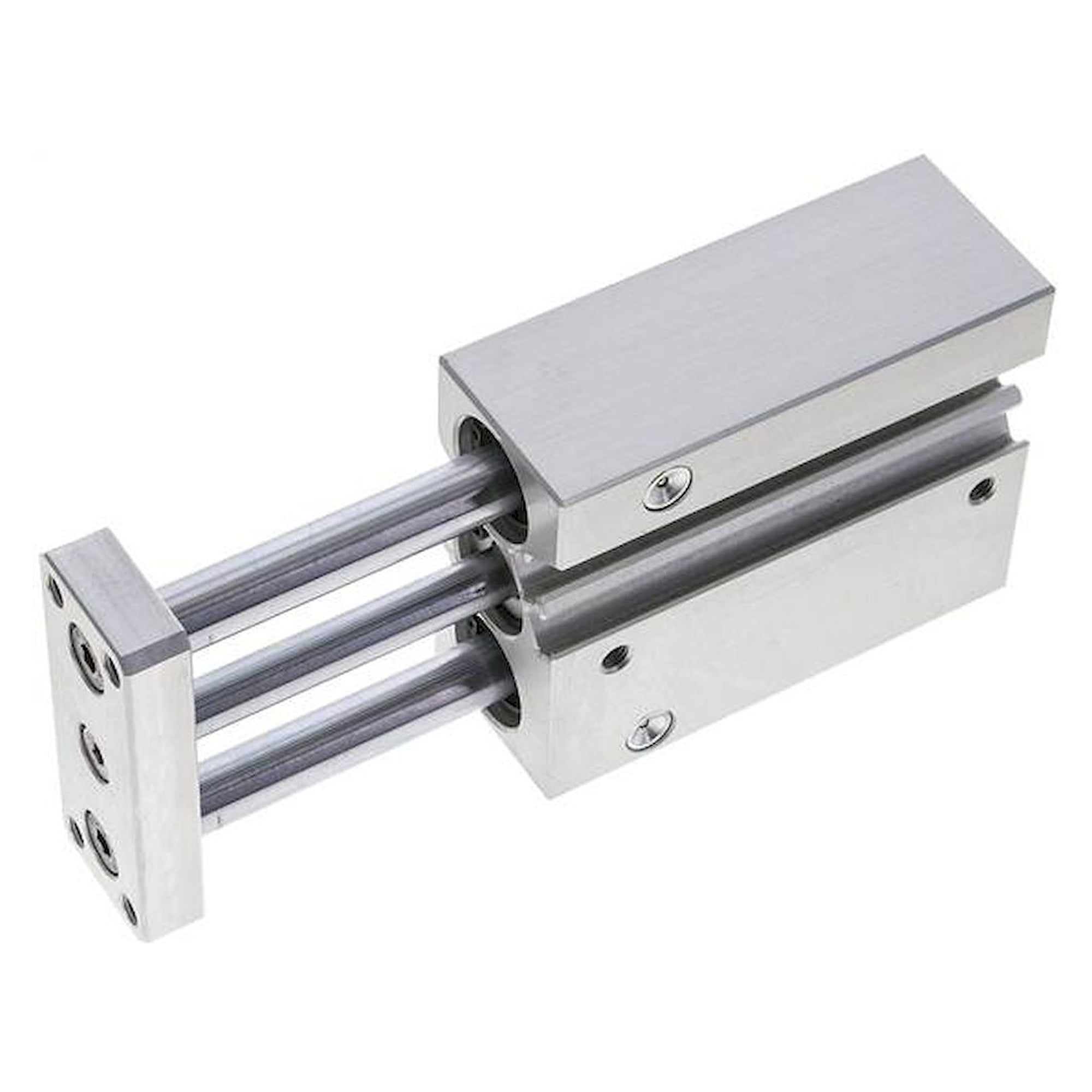

Guide cylinder, with ball bushing, pistons 16mm,stroke 50mm
