In service the suction cup holder connects the suction cup to the vacuum line by a thread. The decisive figure is a nominal width of 6.3 mm. The listed size is thread G 1/8" (female thread), nominal width DN 6.3 mm, height H2 4.5 mm.

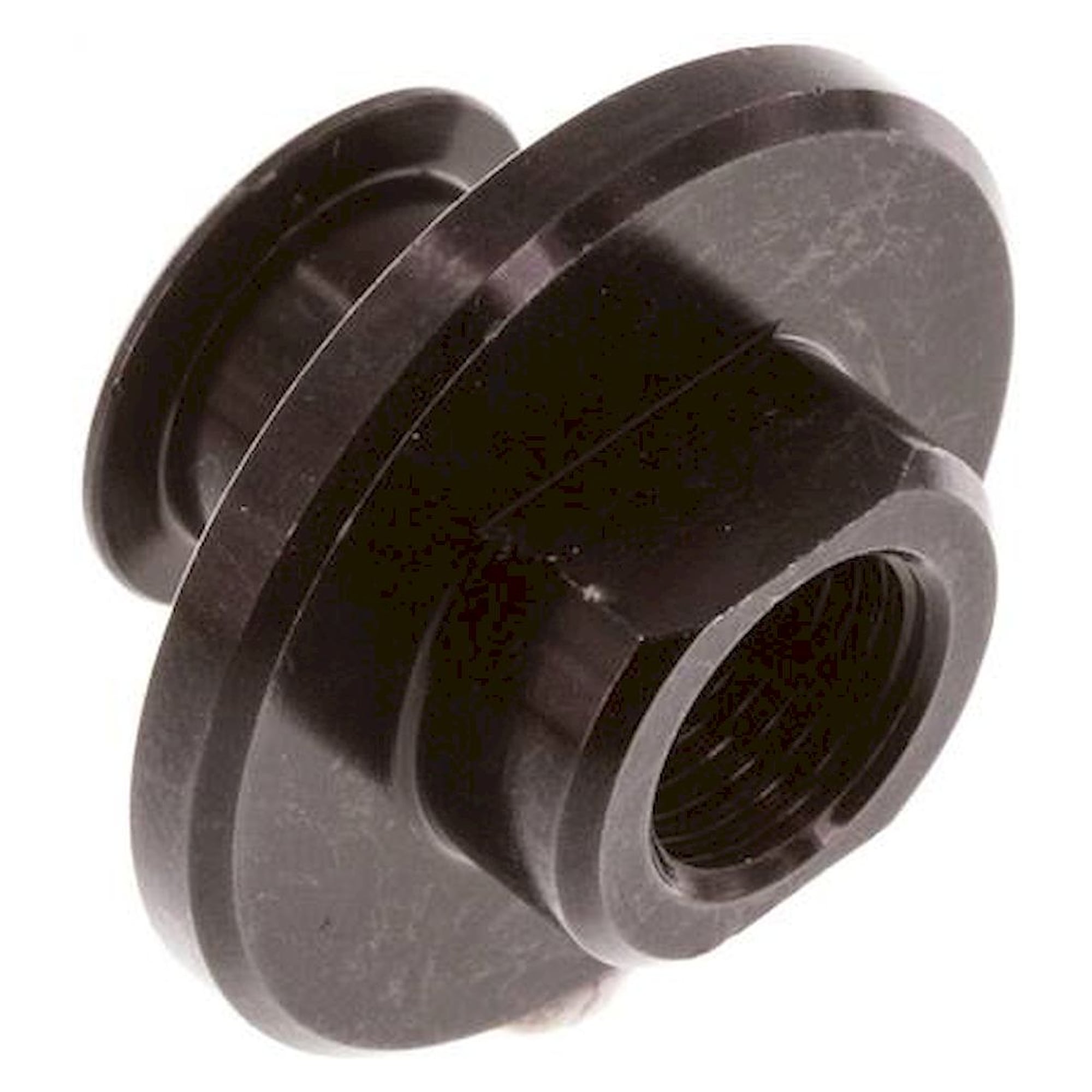

Aluminium suction cup holder, type E, thread G 1/8" (female thread), nominal width DN 6.3 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€5.58 €4.69
Item
FL-228826
Manufacturer no.
VSPH E18 I
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.VSPH E18 I
EAN4050571727598
Customs tariff number76161000
ConditionNew
Artikel
FL-228826
Frequently Bought Together
- This Item: €5.58 €4.69
- Flat suction cup, Ø 75 mm, stroke 6 mm, CR (60A), black, standard lip €42.97 €36.11
- Multi-stage vacuum ejector, vacuum up to 87 %, vacuum port G 1/8", suction rate 110 l/min €176.49 €148.31
This suction cup holder connects the suction cup to the vacuum line by a thread. The article is listed with a nominal width of 6.3 mm. The stated figures are thread G 1/8" (female thread), nominal width DN 6.3 mm and height H2 4.5 mm.
Benefits
- Listed with Nominal width DN 6.3 mm.
- Dimension D1 15.0 mm.
- Dimension D2 of 28.0 mm as per the data sheet.
- Listed with Width across flats SW 6 mm.
- Dimension H1 9.0 mm.
Technical data
| Version | aluminium suction cup holder |
|---|---|
| Holder type | E |
| Thread G | G 1/8" (female thread) |
| Nominal width DN [mm] | 6.3 |
| Dimension D1 [mm] | 15.0 |
| Dimension D2 [mm] | 28.0 |
| Width across flats SW [mm] | 6 |
| Dimension H1 [mm] | 9.0 |
| Dimension H2 [mm] | 4.5 |
| Dimension H3 [mm] | 3.5 |
| Dimension H4 [mm] | 18.0 |
| Dimension H5 [mm] | 6.0 |
| Form number | 5 |
Applications
The suction cup holder is used wherever it has to connect the suction cup to the vacuum line.
| Hersteller-Nr | VSPH E18 I |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571727598 |
| Weight | 0.008100 |
| Zolltarifnummer | 76161000 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
