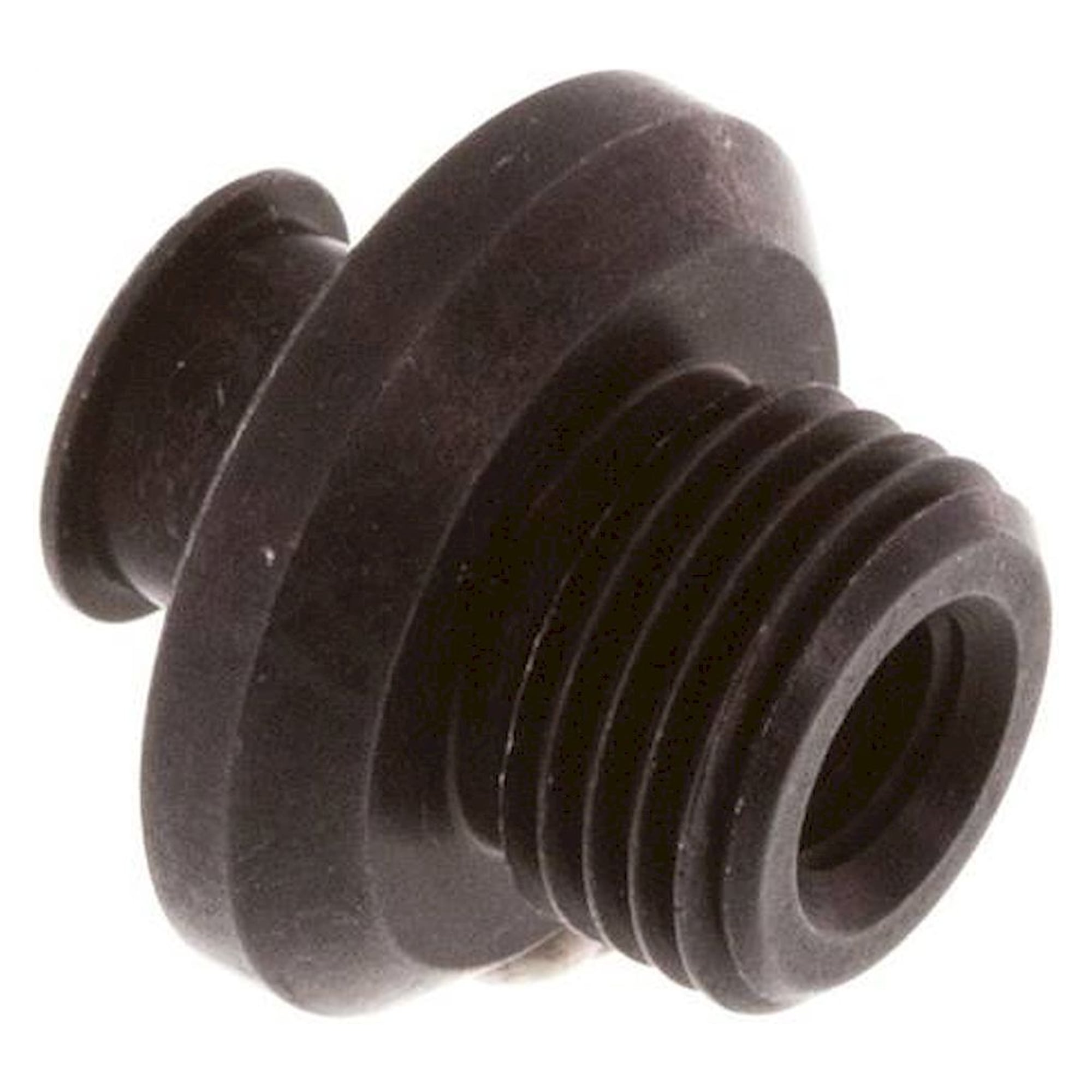

Aluminium suction cup holder, type C, thread G 1/8" (male thread), nominal width DN 3.1 mm
This suction cup holder connects the suction cup to the vacuum line by a thread. What counts here is a nominal width of 3.1 mm. The listed size is thread G 1/8" (male thread), nominal width DN 3.1 mm, height H2 3.0 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Once installed, the suction cup holder connects the suction cup to the vacuum line by a thread. This version is listed with thread G 1/8" (male thread), nominal width DN 3.1 mm and height H2 3.0 mm. The stated figure is a nominal width of 3.1 mm.
Benefits
- Nominal width DN 3.1 mm.
- Dimension D1 of 7.5 mm as per the data sheet.
- Listed with Dimension D2 16.0 mm.
- Width across flats SW 3 mm.
- Dimension H1 of 5.0 mm as per the data sheet.
Applications
Typical use is anywhere the suction cup holder has to connect the suction cup to the vacuum line.
Technical data
| Version | aluminium suction cup holder |
|---|---|
| Holder type | C |
| Thread G | G 1/8" (male thread) |
| Optional thread G | M 5 |
| Nominal width DN [mm] | 3.1 |
| Dimension D1 [mm] | 7.5 |
| Dimension D2 [mm] | 16.0 |
| Width across flats SW [mm] | 3 |
| Dimension H1 [mm] | 5.0 |
| Dimension H2 [mm] | 3.0 |
| Dimension H3 [mm] | 1.5 |
| Dimension H4 [mm] | 14.5 |
| Dimension H5 [mm] | 3.5 |
| Form number | 5 |
| Weight | 0.003 kg |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | VSPH C18 |
| EAN | 4050571727550 |
| Zolltarifnummer | 76161000 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
