This suction cup holder connects the suction cup to the vacuum line by a thread. What counts here is a nominal width of 3 mm. The dimensions come to thread G 1/8" (male thread), nominal width DN 3 mm, height H2 5.5 mm.

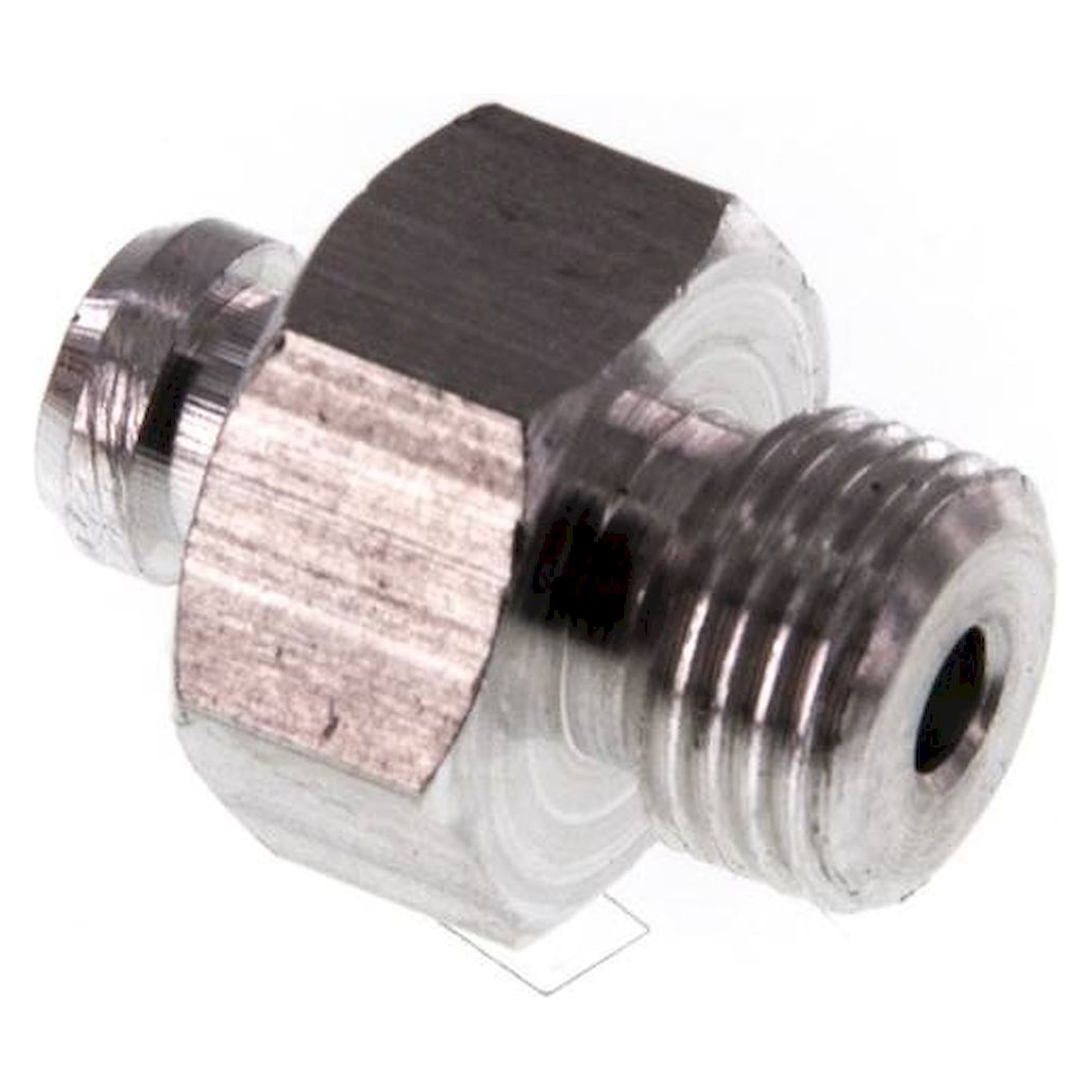

Aluminium suction cup holder, type H, thread G 1/8" (male thread), nominal width DN 3 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€3.45
€2.90
Item
FL-228811
Manufacturer no.
VSH H18
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.VSH H18
EAN4050571726355
Customs tariff number76161000
ConditionNew
Artikel
FL-228811
Frequently Bought Together
-
This Item:
€3.45 €2.90
-
Vacuum filter for the hose line, for hose outside diameter 10 mm, suction rate 100 l/min
€60.58 €50.91
-
Flat suction cup, Ø 100 mm, stroke 9 mm, NBR (50A), black, standard lip
€33.36 €28.03
Once installed, the suction cup holder connects the suction cup to the vacuum line by a thread. In addition the sheet lists a height H2 of 5.5 mm. This version comes with thread G 1/8" (male thread), nominal width DN 3 mm and height H2 5.5 mm.
Benefits
- Nominal width DN 3 mm.
- Dimension D1 of 5.5 mm as per the data sheet.
- Listed with Dimension D2 7.3 mm.
- Width across flats SW 14 mm.
- Dimension H1 of 2.5 mm as per the data sheet.
Technical data
| Version | aluminium suction cup holder |
|---|---|
| Holder type | H |
| Thread G | G 1/8" (male thread) |
| Nominal width DN [mm] | 3 |
| Dimension D1 [mm] | 5.5 |
| Dimension D2 [mm] | 7.3 |
| Width across flats SW [mm] | 14 |
| Dimension H1 [mm] | 2.5 |
| Dimension H2 [mm] | 5.5 |
| Dimension H3 [mm] | 19.5 |
| Form number | 1 |
Applications
Typical use is anywhere the suction cup holder has to connect the suction cup to the vacuum line.
| Hersteller-Nr | VSH H18 |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571726355 |
| Weight | 0.004400 |
| Zolltarifnummer | 76161000 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
