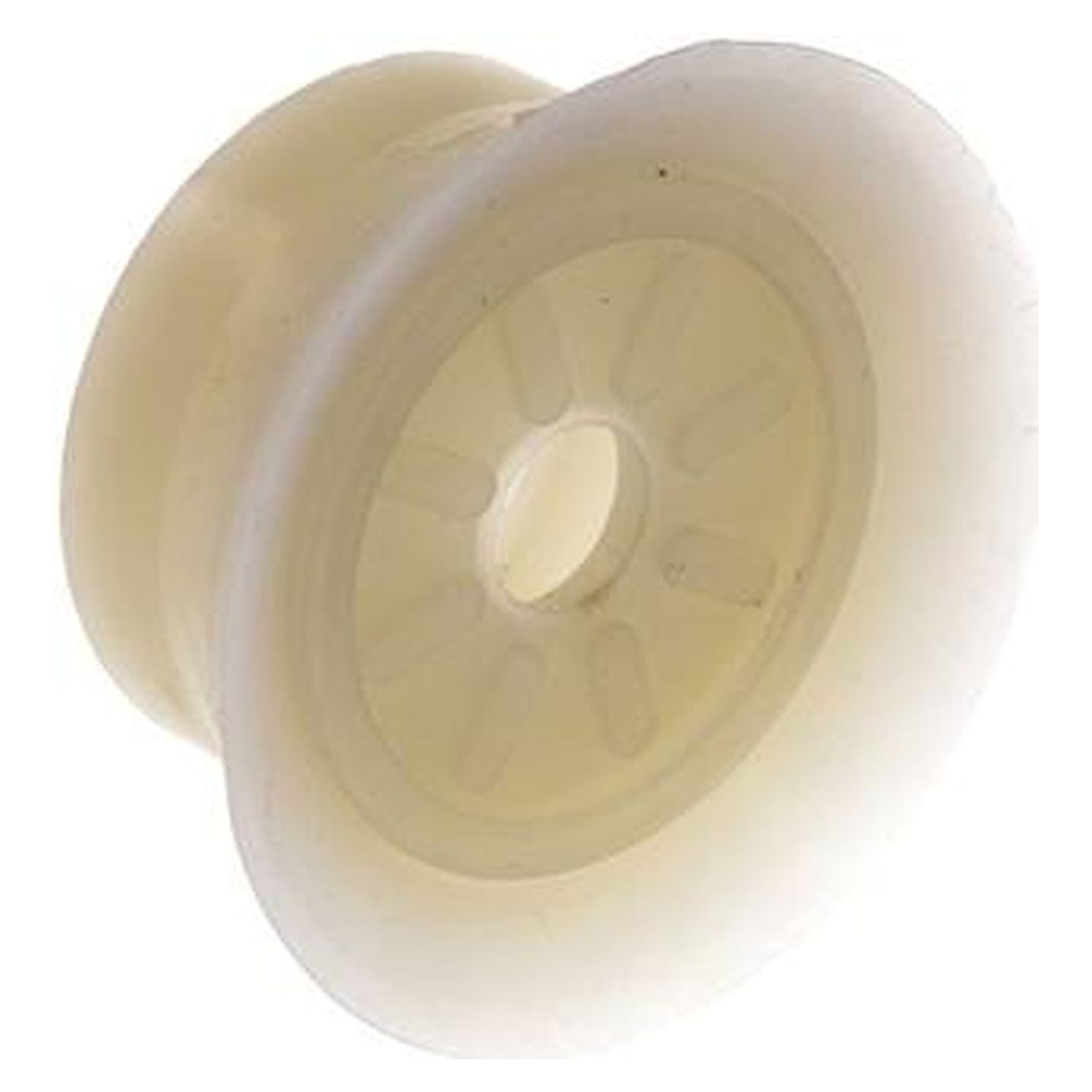

This flat suction cup holds the workpiece on the suction face by vacuum. A key figure is a suction cup diameter of 70 mm. Size Ø 70 mm, stroke 6 mm, holder type M, colour transparent, material silicone, 50 Shore A.
Flat suction cup, Ø 70 mm, stroke 6 mm, silicone, 50 Shore A, transparent, fine lip
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€32.16
Item
FL-228703
Manufacturer no.
VS 70 FF SI
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.VS 70 FF SI
EAN4050571725433
Customs tariff number84879090
ConditionNew
Artikel
FL-228703
Frequently Bought Together
-
This Item:
€32.16
-
Oval suction cup for vacuum handling, suction area 24 x 8 mm, stroke 1 mm, silicone, 60 Shore A
€17.06
-
Bellows suction cup for vacuum handling, Ø 51 mm, stroke 25 mm, silicone, 50 Shore A
€22.80
Total price
Once installed, the flat suction cup holds the workpiece on the suction face by vacuum. Material silicone, 50 Shore A is listed for this version. The article is listed with a suction cup diameter of 70 mm.
Benefits
- Suction cup diameter D Ø 70 mm.
- Stroke of 6 mm as per the data sheet.
- Dimension D3 of 50 mm as per the data sheet.
- Listed with Dimension D4 33.0 mm.
- Dimension h 30.0 mm.
Technical data
| Material | silicone, 50 Shore A |
|---|---|
| Suction cup diameter D [mm] | Ø 70 |
| Stroke [mm] | 6 |
| Colour | transparent |
| Connection (female thread) | G 1/4" |
| Dimension D3 [mm] | 50 |
| Dimension D4 [mm] | 33.0 |
| Dimension h [mm] | 30.0 |
| Height including holder [mm] | 32 |
| Dimension h3 [mm] | 17.0 |
| Dimension h4 [mm] | 3.5 |
| Temperature range [°C] | -40 to +200 |
| Holder type | M |
| Suction cup version | fine lip |
Applications
The flat suction cup is used wherever it has to pick up and hold workpieces by vacuum.
| Hersteller-Nr | VS 70 FF SI |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571725433 |
| Weight | 0.036000 |
| Zolltarifnummer | 84879090 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
