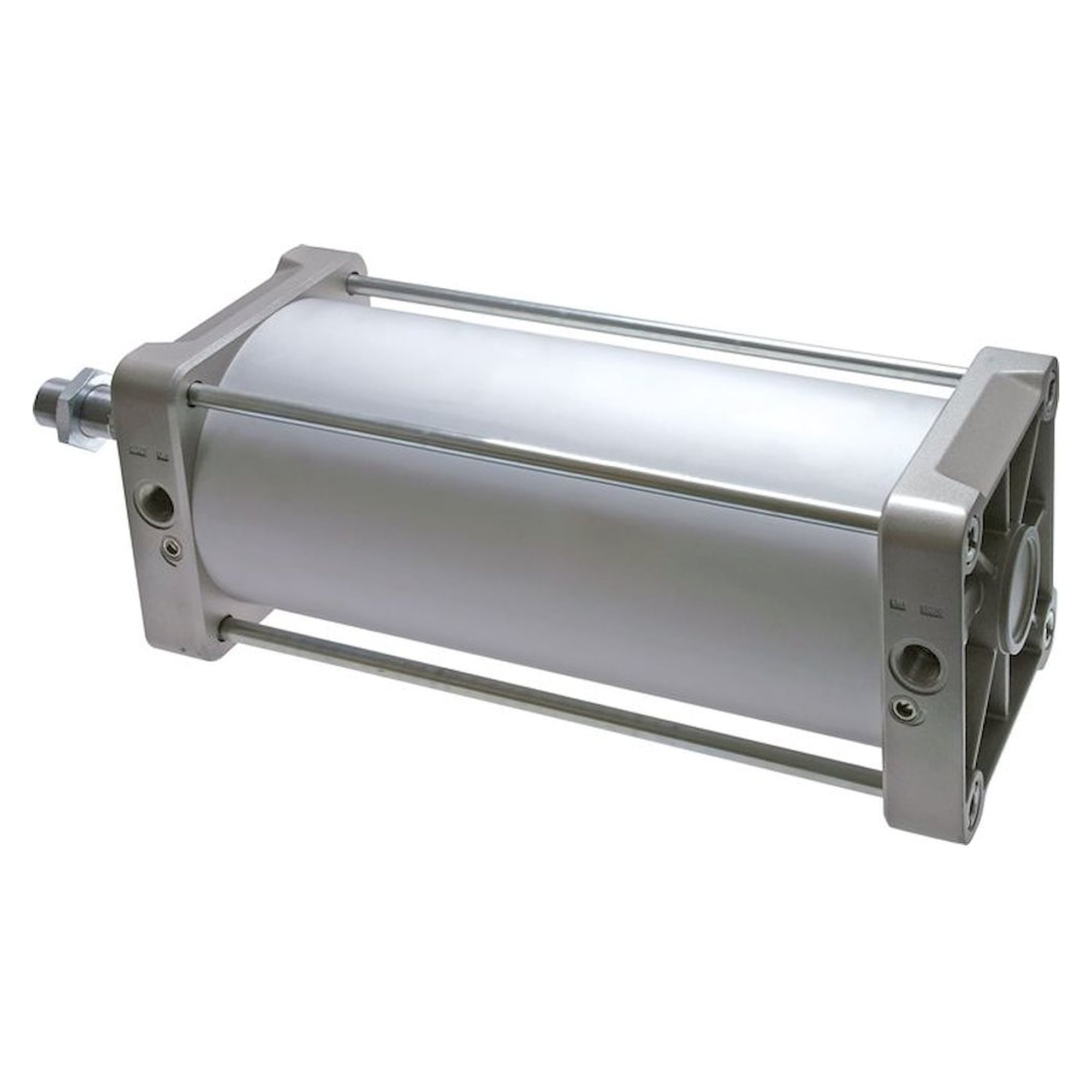

ISO 15552 cylinders, piston 320 mm, stroke 200 mm, ECO
Datasheet (PDF)
Pictures are for reference and may not be accurate, actual product may differ
ISO 15552 cylinders, piston 320 mm, stroke 200 mm, ECO

ISO 15552 cylinders, piston 320 mm, stroke 200 mm, ECO

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€5,466.15 €4,593.40
excl. Shipping Cost
Available Fast shipping
Item FL-273718
Manufacturer no. TM 320/200
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.TM 320/200
EAN4050571699406
Customs tariff number84799070
ConditionNeu
Add to Wish List Add to Compare
Artikel
FL-273718
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm] 320
Stroke [mm] 200
A (piston rod thread) M 48x2
G (compressed air port) G 1"

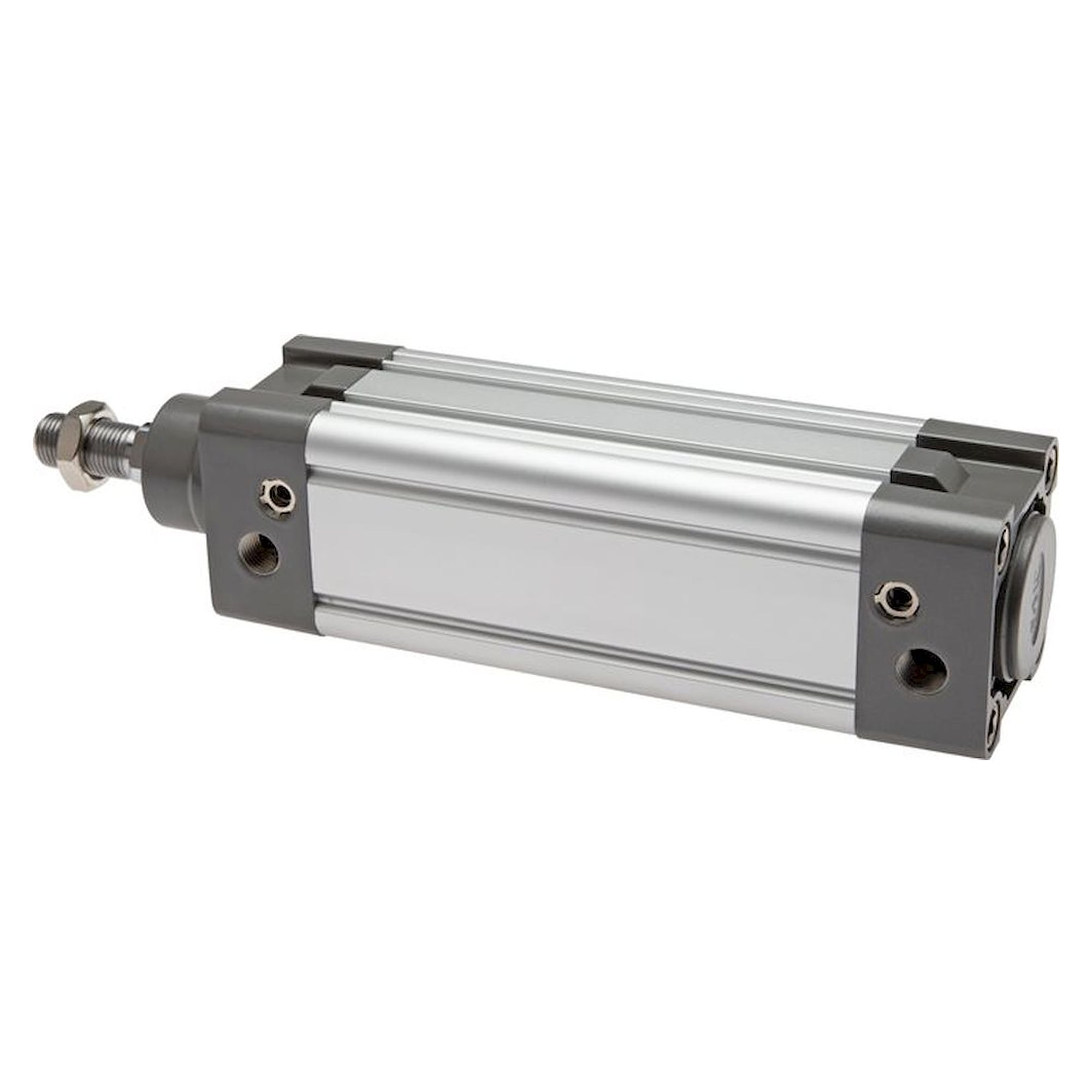

Repair sets TM 320 REP
B [mm] 63
C [mm] 110
D [mm] 90
F [mm] 96
G [mm] 120
H [mm] 340
K [mm] 10,0
M [mm] 350,0
N [mm] 270,0
CH [mm] 55
RT M 24
More Information
Hersteller-Nr TM 320/200
Manufacturer Fluidics equipment
EAN 4050571699406
Weight 1.000000
Zolltarifnummer 84799070
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Originalprodukt
Artikelzustand Neu
