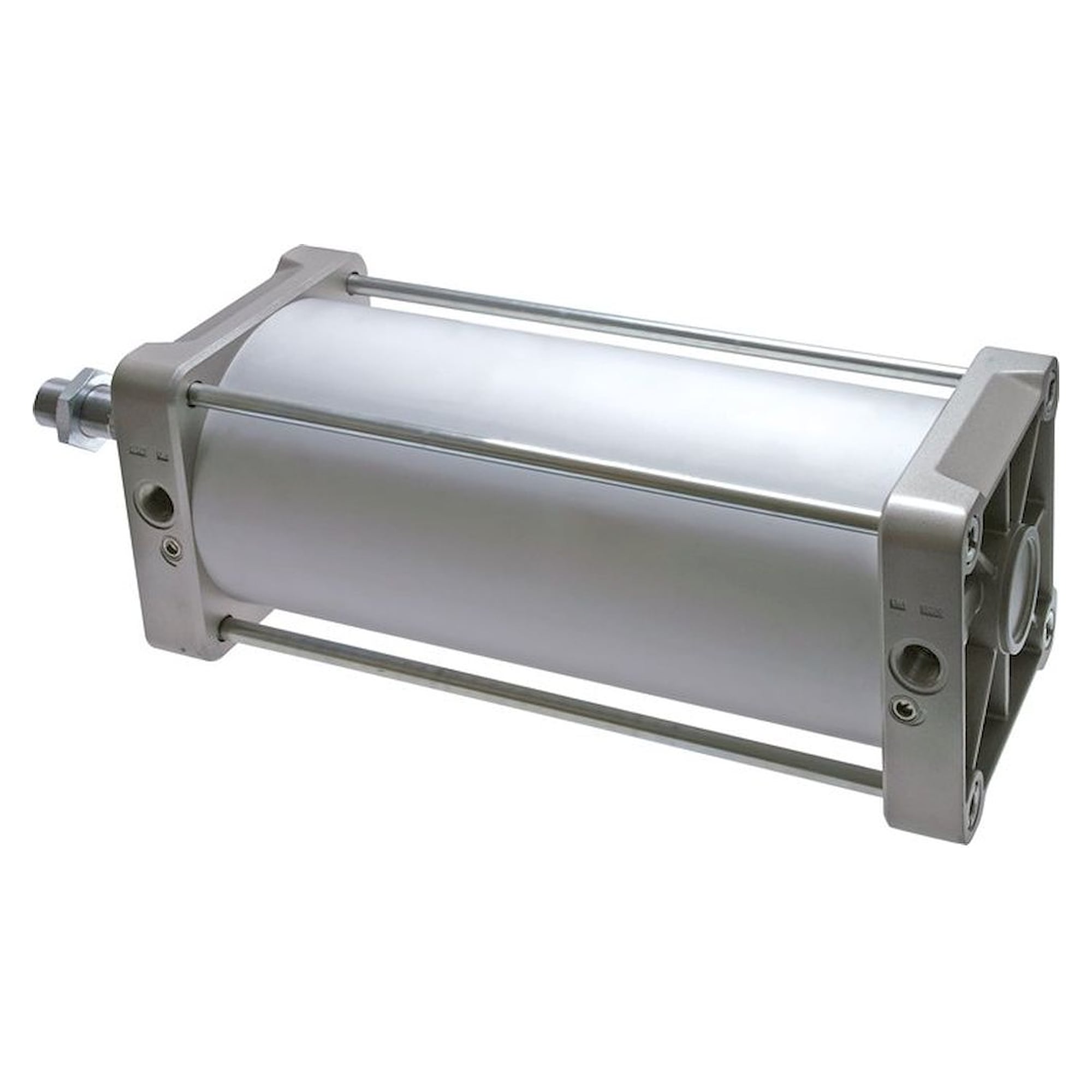

ISO 15552 cylinders, piston 160 mm, stroke 150 mm, ECO
ISO 15552 cylinders, piston 160 mm, stroke 150 mm, ECO
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€706.22
Item
FL-298512
Manufacturer no.
TM 160/150
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TM 160/150
EAN4050571698591
Customs tariff number84799070
ConditionNew
Artikel
FL-298512
Frequently Bought Together
-
This Item:
€706.22
-
ISO 15552 cylinders, piston 200 mm, stroke 50 mm, ECO
€755.42
-
ISO 15552 cylinders, piston 250 mm, stroke 150 mm, ECO
€2,614.36
Total price
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
with magnetic pistons and adjustable end position damping
Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
with magnetic pistons and adjustable end position damping
Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2
| Piston diameter [mm] | 160 |
| Stroke [mm] | 150 |
| A (piston rod thread) | M 36x2 |
| G (compressed air port) | G 3/4" |
| B [mm] | 40 |
| C [mm] | 65 |
| D [mm] | 50 |
| F [mm] | 72 |
| G [mm] | 80 |
| H [mm] | 260 |
| K [mm] | 6,0 |
| M [mm] | 180,0 |
| N [mm] | 140,0 |
| CH [mm] | 36 |
| RT | M 16 |
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TM 160/150 |
| Manufacturer | Fluidics equipment |
| EAN | 4050571698591 |
| Weight | 14.000000 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
