In service the bearing block carries the cylinder in the centre trunnion mounting. The decisive figure is a piston diameter of 32 mm. Dimensions 46 x 30 x 32 mm, made of stainless steel 1.4401.

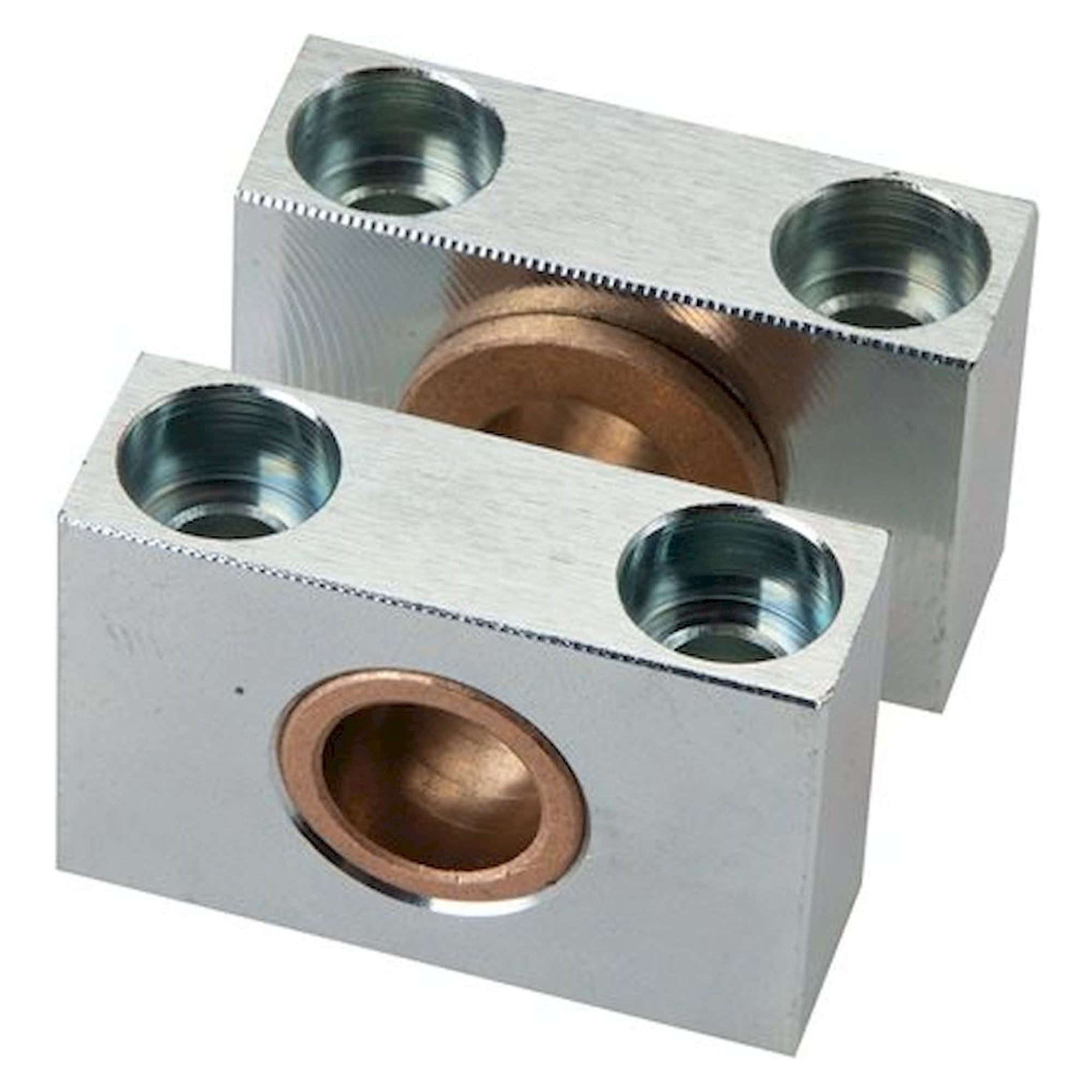

Bearing block for centre trunnion mounting, for piston diameter 32 mm, stainless steel 1.4401
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€250.84 €210.79
Item
FL-021132
Manufacturer no.
TL 32 ES
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.TL 32 ES
EAN4050571698058
Customs tariff number84129080
ConditionNew
Artikel
FL-021132
Frequently Bought Together
- This Item: €250.84 €210.79
- 2 pcs. Bearing block for centre swivel fasten. 40 & 50 mm €294.80 €247.73
- Pivot Bearing Brackets, Centre Trunnion Mount, Ø 160/200 mm - Airtec TL 160/200 €158.65 €133.32
This bearing block carries the cylinder in the centre trunnion mounting. The data sheet gives a piston diameter of 32 mm. The stated material is stainless steel 1.4401.
Benefits
- Matched to cylinders with a 32 mm piston diameter.
- Material stainless steel 1.4401 for size 32 mm.
- Dimension A comes to 46 mm for size 32 mm.
- Dimension B comes to 30 mm for size 32 mm.
- Dimension C comes to 32 mm for size 32 mm.
Technical data
| Material | stainless steel 1.4401 |
|---|---|
| For piston diameter [mm] | 32 |
| Dimension A [mm] | 46 |
| Dimension B [mm] | 30 |
| Dimension C [mm] | 32 |
| Dimension D [mm] | 12 |
| Dimension E [mm] | 7 |
| Dimension F [mm] | 15 |
| Dimension G [mm] | 18.0 |
| Dimension H [mm] | 10.5 |
| Dimension K [mm] | 11 |
| Dimension L [mm] | 6.6 |
| Scope of delivery | 2 bearing blocks |
| Bearing bush | PTFE |
Applications
In machine and plant construction the bearing block holds a cylinder with a 32 mm piston diameter in place.
| Hersteller-Nr | TL 32 ES |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571698058 |
| Weight | 0.200000 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
