In service the complete swivel mounting holds the cylinder and carries its forces into the machine frame. The decisive figure is a piston diameter of 80 mm. Dimensions 292 x 82 x 75 mm, made of aluminium.

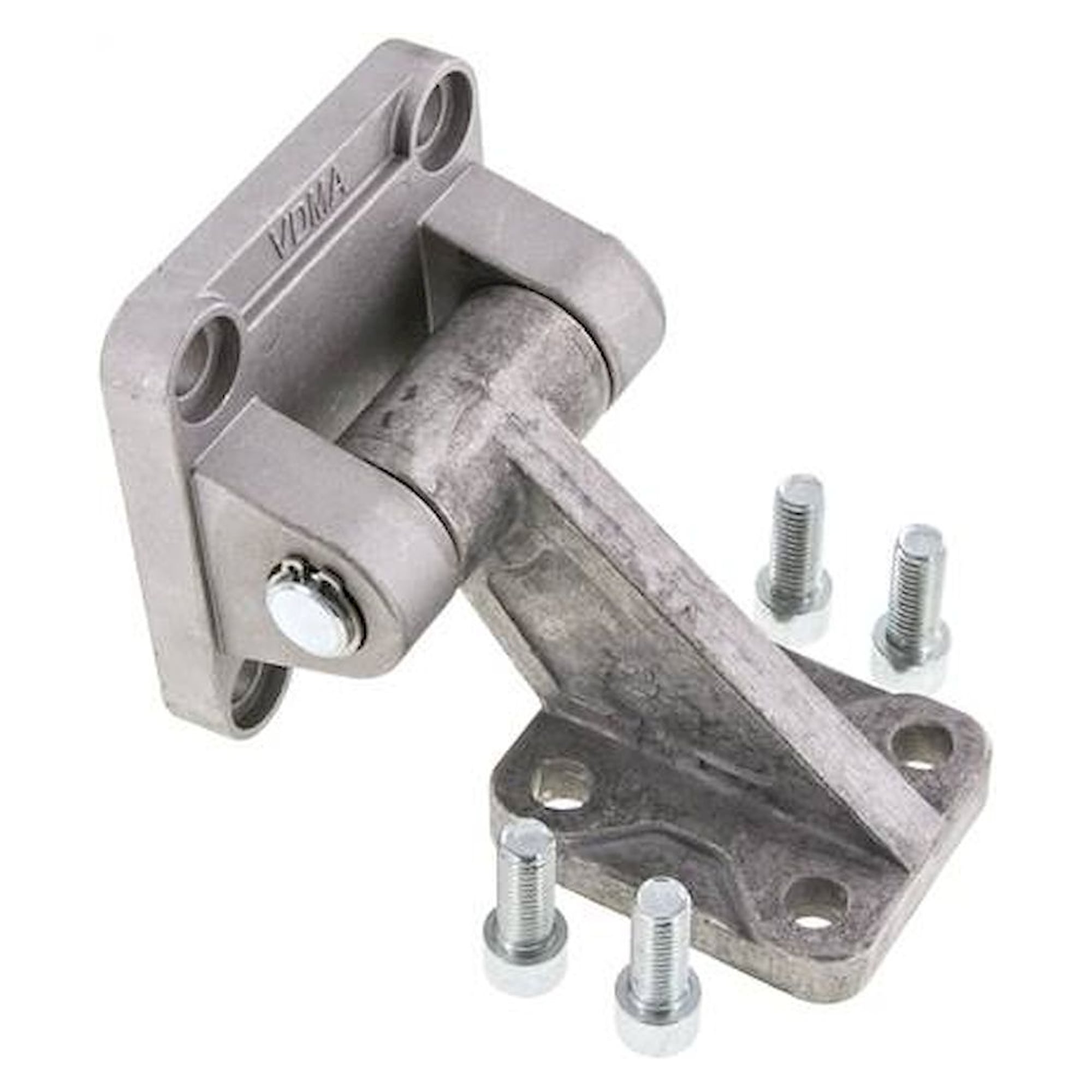

Complete 90 degree swivel mounting ISO 15552, for piston diameter 80 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€86.33
Item
FL-014895
Manufacturer no.
TH 80
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TH 80
EAN4050571696207
Customs tariff number76169990
ConditionNew
Artikel
FL-014895
Frequently Bought Together
-
This Item:
€86.33
-
Complete 90 degree swivel mounting ISO 15552, for piston diameter 125 mm
€128.92
-
Complete 90 degree swivel mounting ISO 15552, for piston diameter 160 mm
€269.13
Total price
This complete swivel mounting to ISO 15552 holds the cylinder and carries its forces into the machine frame. This version comes with 292 mm for dimension V, 82 mm for dimension T and 75 mm for dimension S.
Benefits
- Designed for cylinders with a 80 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Dimension V comes to 292 mm for size 80 mm.
- Dimension U comes to 63 mm for size 80 mm.
- For piston diameter 80 mm.
Technical data
| For piston diameter [mm] | 80 |
|---|---|
| Dimension L [mm] | 11 |
| Dimension O [mm] | 12 |
| Dimension P [mm] | 40 |
| Dimension Q [mm] | 63 |
| Dimension R [mm] | 50 |
| Dimension S [mm] | 75 |
| Dimension T [mm] | 82 |
| Dimension U [mm] | 63 |
| Dimension V [mm] | 292 |
| Scope of delivery | 1 swivel mounting incl. clevis, pin and 4 fixing screws |
Applications
In machine and plant construction the complete swivel mounting holds a cylinder with a 80 mm piston diameter in place.
Standards and conformity
The interface dimensions are based on ISO 15552.
| Weight | 0.310000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | TH 80 |
| EAN | 4050571696207 |
| Zolltarifnummer | 76169990 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | ISO 15552 |
