In service the swivel eye mounting holds the cylinder and carries its forces into the machine frame. The decisive figure is a piston diameter of 40 mm. Dimensions 160 x 55 x 12 mm, made of aluminium.

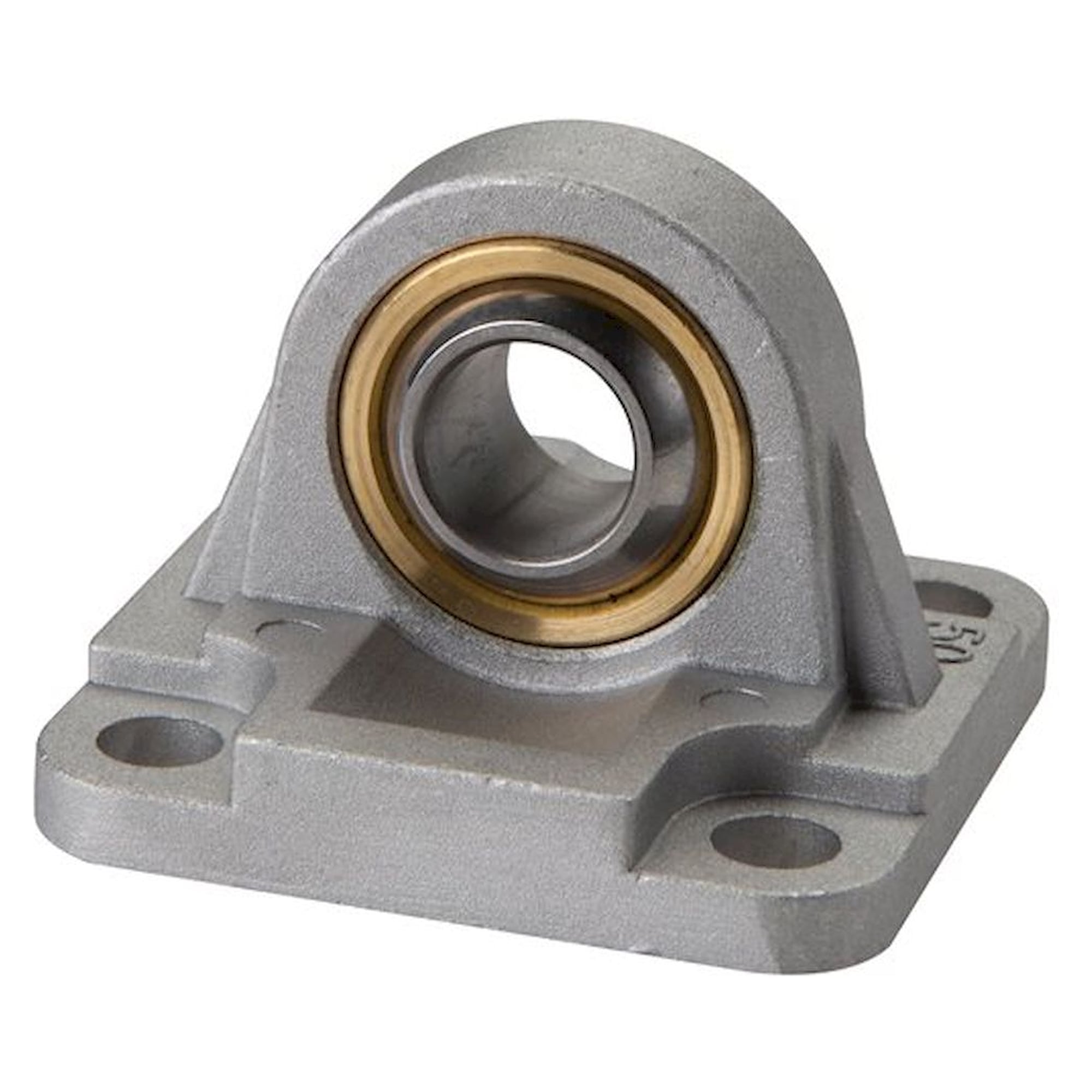

Spherical swivel eye mounting ISO 15552, for piston diameter 40 mm, aluminium
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€44.41
Item
FL-029989
Manufacturer no.
TE 40 ALU
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TE 40 ALU
EAN4050571693138
Customs tariff number84129080
ConditionNew
Artikel
FL-029989
Frequently Bought Together
-
This Item:
€44.41
-
Spherical swivel eye mounting ISO 15552, for piston diameter 32 mm, aluminium
€39.51
-
ISO 15552 Clevis Mounting, Spherical, for Ø 100 mm - Airtec TE 100
€135.63
Total price
This swivel eye mounting holds the cylinder and carries its forces into the machine frame. The data state a piston diameter of 40 mm. The stated figures are 160 mm for dimension L, 55 mm for dimension M and 12 mm for dimension D.
Benefits
- Designed for cylinders with a 40 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material aluminium for size 40 mm.
- Dimension L comes to 160 mm for size 40 mm.
- Dimension D comes to 12 mm for size 40 mm.
Technical data
| Material | aluminium |
|---|---|
| For piston diameter [mm] | 40 |
| Dimension A [mm] | 16 |
| Dimension B [mm] | 12.0 |
| Dimension D [mm] | 12 |
| Dimension F [mm] | 25 |
| Dimension L [mm] | 160 |
| Dimension M [mm] | 55 |
| Dimension N [mm] | 38.0 |
| Scope of delivery | 1 swivel mounting incl. 4 fixing screws |
Applications
On feed and infeed units the spherical swivel eye mounting carries the cylinder of size 40 mm.
Standards and conformity
Made to ISO 15552 and matched to a piston diameter of 40 mm.
| Weight | 0.135000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | TE 40 ALU |
| EAN | 4050571693138 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | ISO 15552 |
