Built to ISO 15552, the clevis swivel mounting holds the cylinder and carries its forces into the machine frame. What counts here is a piston diameter of 100 mm. Material burnished steel, size 230 x 115 x 110 mm.

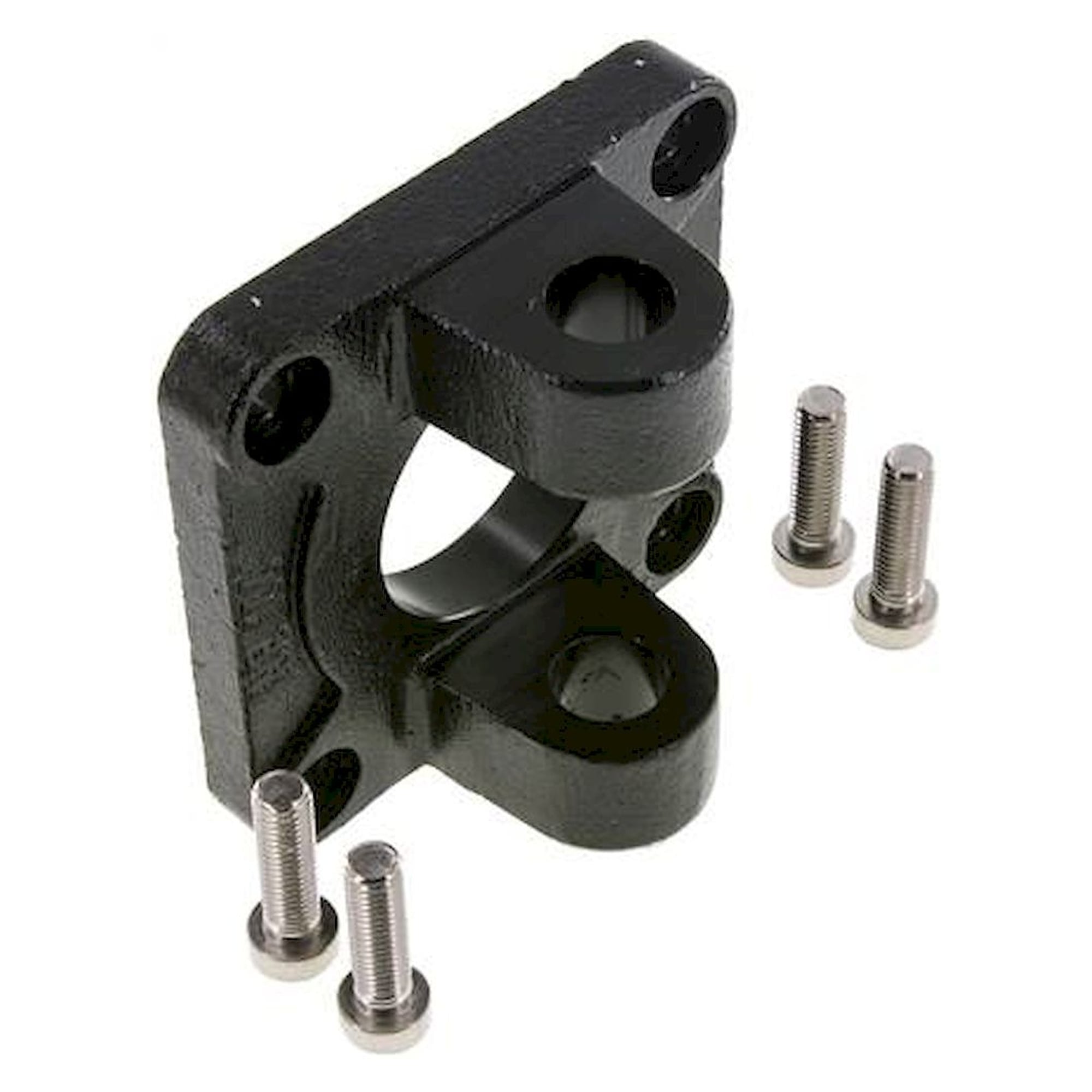

Clevis swivel mounting ISO 15552, for piston diameter 100 mm, burnished steel
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€70.30
Item
FL-028103
Manufacturer no.
TC 100 ST
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TC 100 ST
EAN4050571689520
Customs tariff number73269098
ConditionNew
Artikel
FL-028103
Frequently Bought Together
-
This Item:
€70.30
-

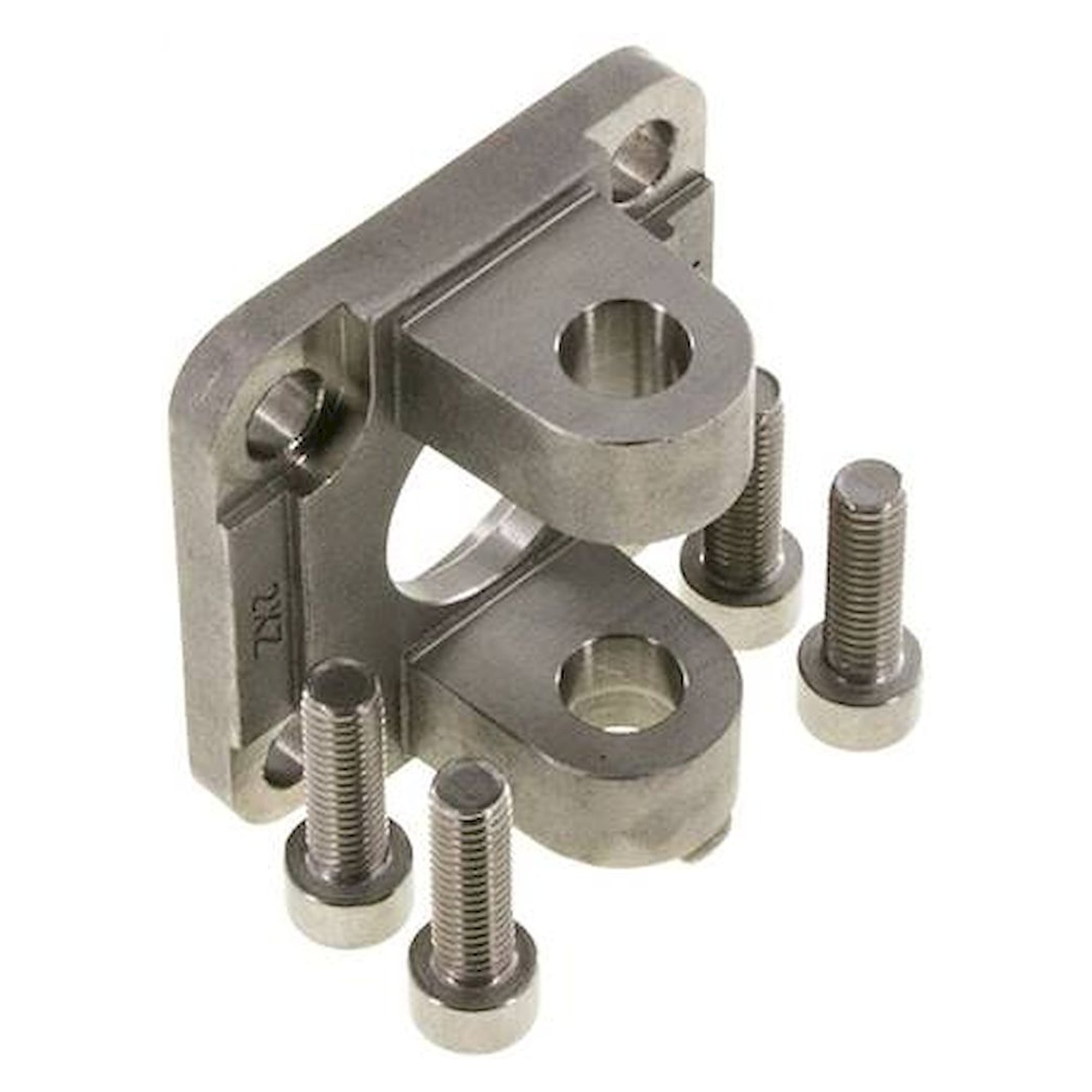

Clevis swivel mounting ISO 15552, for piston diameter 50 mm, stainless steel 1.4401
€185.25
-

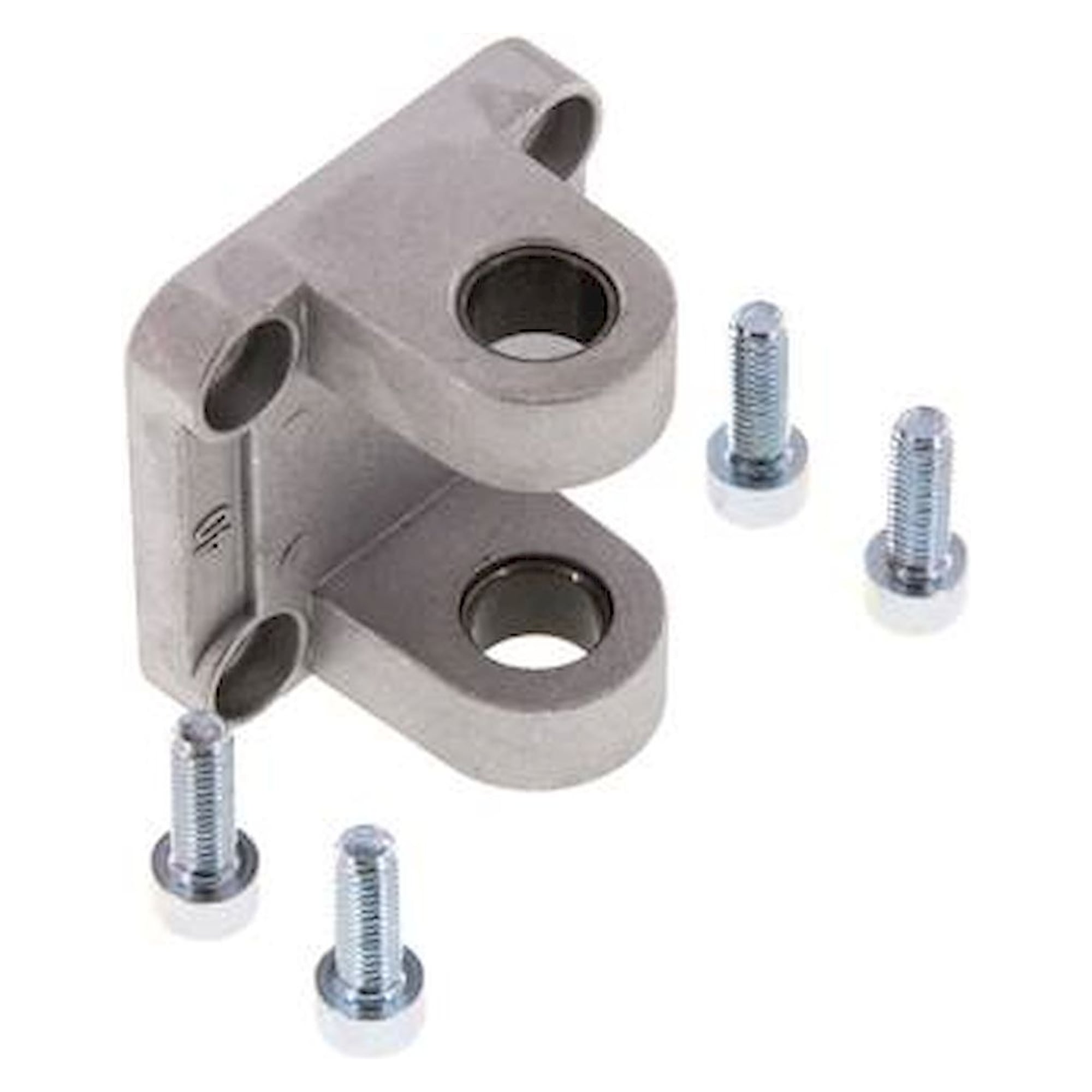

Clevis swivel mounting ISO 15552, for piston diameter 40 mm, stainless steel 1.4401
€167.40
Total price
Made to ISO 15552, this clevis swivel mounting holds the cylinder and carries its forces into the machine frame. It is supplied with 230 mm for dimension L, 115 mm for dimension M and 110 mm for dimension A. The article is made of burnished steel.
Benefits
- Designed for cylinders with a 100 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material burnished steel for size 100 mm.
- Dimension A comes to 110 mm for size 100 mm.
- Dimension B comes to 60 mm for size 100 mm.
Technical data
| Material | burnished steel |
|---|---|
| For piston diameter [mm] | 100 |
| Dimension A [mm] | 110 |
| Dimension B [mm] | 60 |
| Dimension D [mm] | 20 |
| Dimension L [mm] | 230 |
| Dimension F [mm] | 41 |
| Dimension M [mm] | 115 |
| Dimension N [mm] | 89.0 |
| Scope of delivery | 1 swivel mounting incl. 4 fixing screws |
Applications
In handling and clamping equipment the clevis swivel mounting transfers the forces of the 100 mm cylinder into the frame.
Standards and conformity
The main dimensions follow ISO 15552 and therefore suit any cylinder of this size.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TC 100 ST |
| Manufacturer | Fluidics equipment |
| EAN | 4050571689520 |
| Weight | 1.600000 |
| Zolltarifnummer | 73269098 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
