The clevis swivel mounting holds the cylinder and carries its forces into the machine frame. The underlying rating is a piston diameter of 100 mm. 230 x 115 x 110 mm in stainless steel 1.4401.

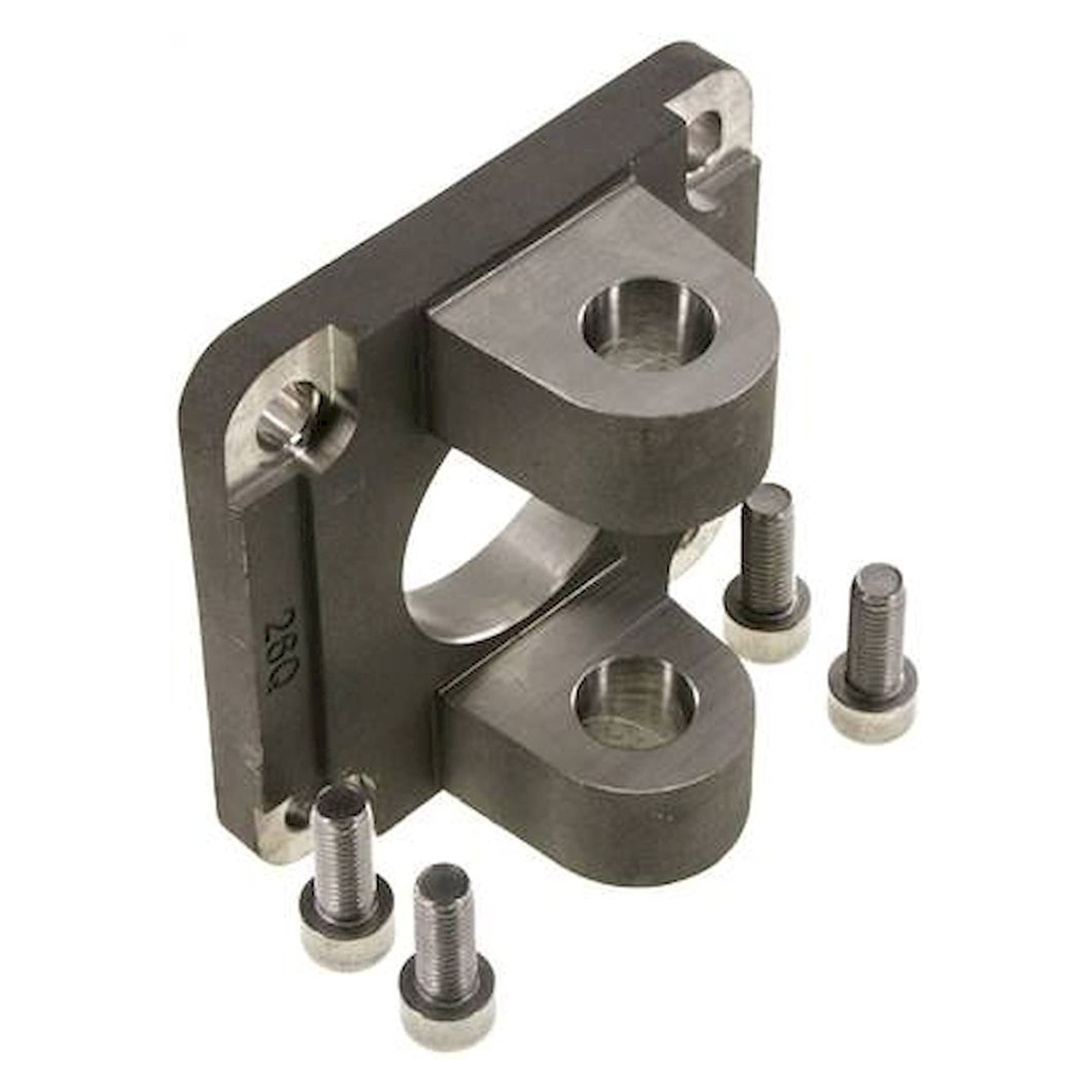

Clevis swivel mounting ISO 15552, for piston diameter 100 mm, stainless steel 1.4401
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€313.34
Item
FL-021725
Manufacturer no.
TC 100 ES
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TC 100 ES
EAN4050571689513
Customs tariff number73269098
ConditionNew
Artikel
FL-021725
Frequently Bought Together
-
This Item:
€313.34
-
Clevis swivel mounting ISO 15552, for piston diameter 32 mm, aluminium with bush
€10.95
-
Clevis swivel mounting ISO 15552, for piston diameter 80 mm, stainless steel 1.4401
€264.89
Total price
In use, the clevis swivel mounting holds the cylinder and carries its forces into the machine frame. It is supplied with 230 mm for dimension L, 115 mm for dimension M and 110 mm for dimension A. It is produced from stainless steel 1.4401.
Benefits
- Designed for cylinders with a 100 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material stainless steel 1.4401 for size 100 mm.
- Dimension A comes to 110 mm for size 100 mm.
- Dimension B comes to 60 mm for size 100 mm.
Technical data
| Material | stainless steel 1.4401 |
|---|---|
| For piston diameter [mm] | 100 |
| Dimension A [mm] | 110 |
| Dimension B [mm] | 60 |
| Dimension D [mm] | 20 |
| Dimension L [mm] | 230 |
| Dimension F [mm] | 41 |
| Dimension M [mm] | 115 |
| Dimension N [mm] | 89.0 |
| Scope of delivery | 1 swivel mounting incl. 4 fixing screws |
Applications
In machine and plant construction the clevis swivel mounting holds a cylinder with a 100 mm piston diameter in place.
Standards and conformity
The interface dimensions are based on ISO 15552.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TC 100 ES |
| Manufacturer | Fluidics equipment |
| EAN | 4050571689513 |
| Weight | 1.600000 |
| Zolltarifnummer | 73269098 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
