ISO 15552-flange attachment 40 mm, 1.4401
Datasheet (PDF)
Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
The flange mounting holds the cylinder and carries its forces into the machine frame. The underlying rating is a piston diameter of 40 mm. 145 x 52 x 90 mm in stainless steel 1.4401.

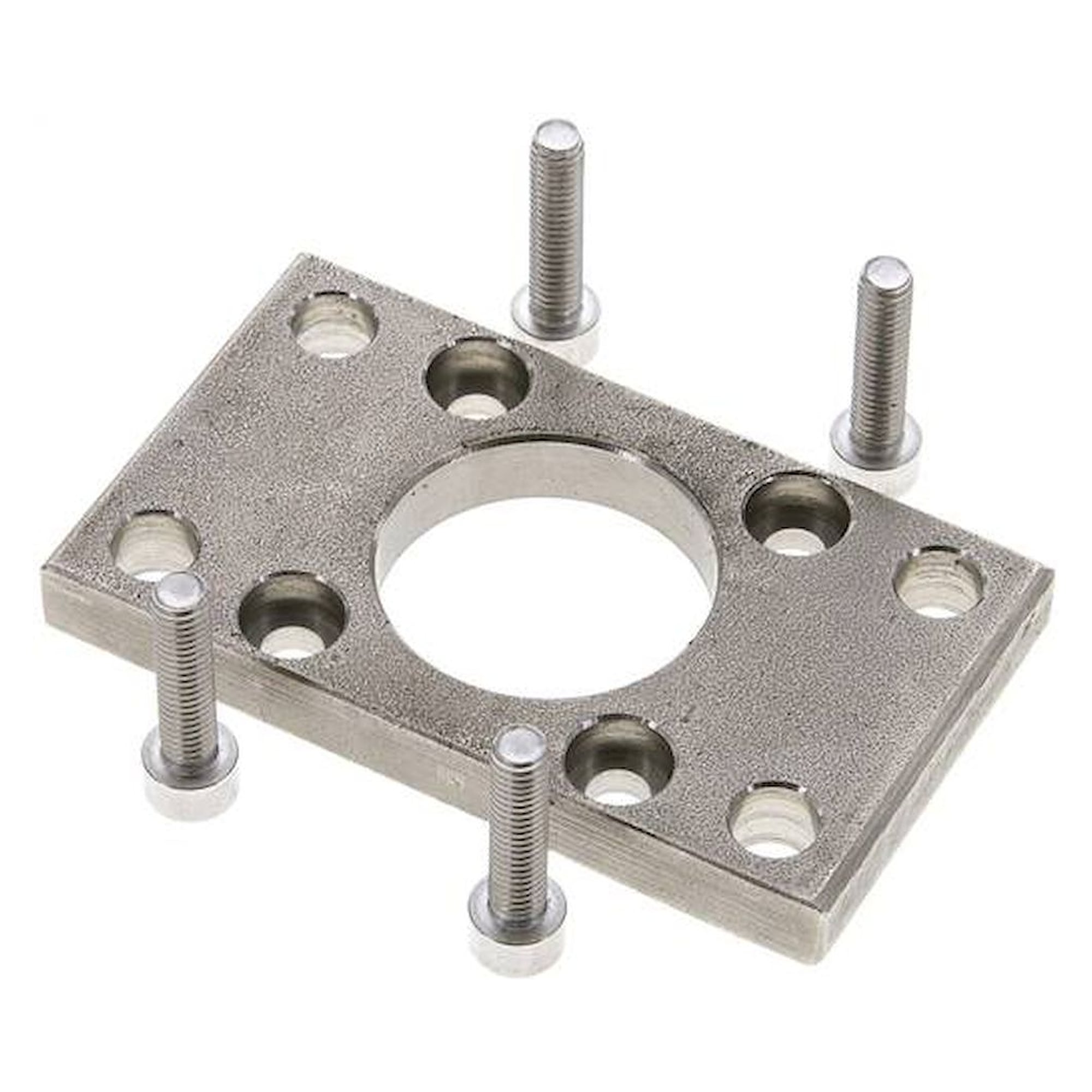

Flange mounting ISO 15552, for piston diameter 40 mm, stainless steel 1.4401

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€150.76
Item FL-021714
Manufacturer no. TB 40 ES
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.TB 40 ES
EAN4050571689339
Customs tariff number73269098
ConditionNew
Add to Wish List Add to Compare
Artikel
FL-021714
Frequently Bought Together
Total price

Once installed, the flange mounting holds the cylinder and carries its forces into the machine frame. Decisive for the selection is a piston diameter of 40 mm.

Benefits

  • Designed for cylinders with a 40 mm piston diameter to ISO 15552.
  • Interface dimensions to ISO 15552 allow a replacement without changing the machine.
  • Material stainless steel 1.4401 for size 40 mm.
  • Dimension U comes to 90 mm for size 40 mm.
  • Dimension T comes to 72 mm for size 40 mm.

Technical data

Materialstainless steel 1.4401
For piston diameter [mm]40
Dimension B [mm]9
Dimension D [mm]10
Dimension L [mm]145
Dimension M [mm]52
Dimension N [mm]38.0
Dimension T [mm]72
Dimension TM [mm]36
Dimension U [mm]90
Scope of delivery1 flange plate incl. 4 fixing screws

Applications

In machine and plant construction the flange mounting holds a cylinder with a 40 mm piston diameter in place.

Standards and conformity

The interface dimensions are based on ISO 15552.

More Information
Norm ISO 15552
Hersteller-Nr TB 40 ES
Manufacturer Fluidics equipment
EAN 4050571689339
Weight 0.250000
Zolltarifnummer 73269098
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Original product
Artikelzustand New
