Built to ISO 15552, the foot bracket holds the cylinder and carries its forces into the machine frame. What counts here is a piston diameter of 200 mm. Material zinc-plated steel, size 417 x 220 x 100 mm.

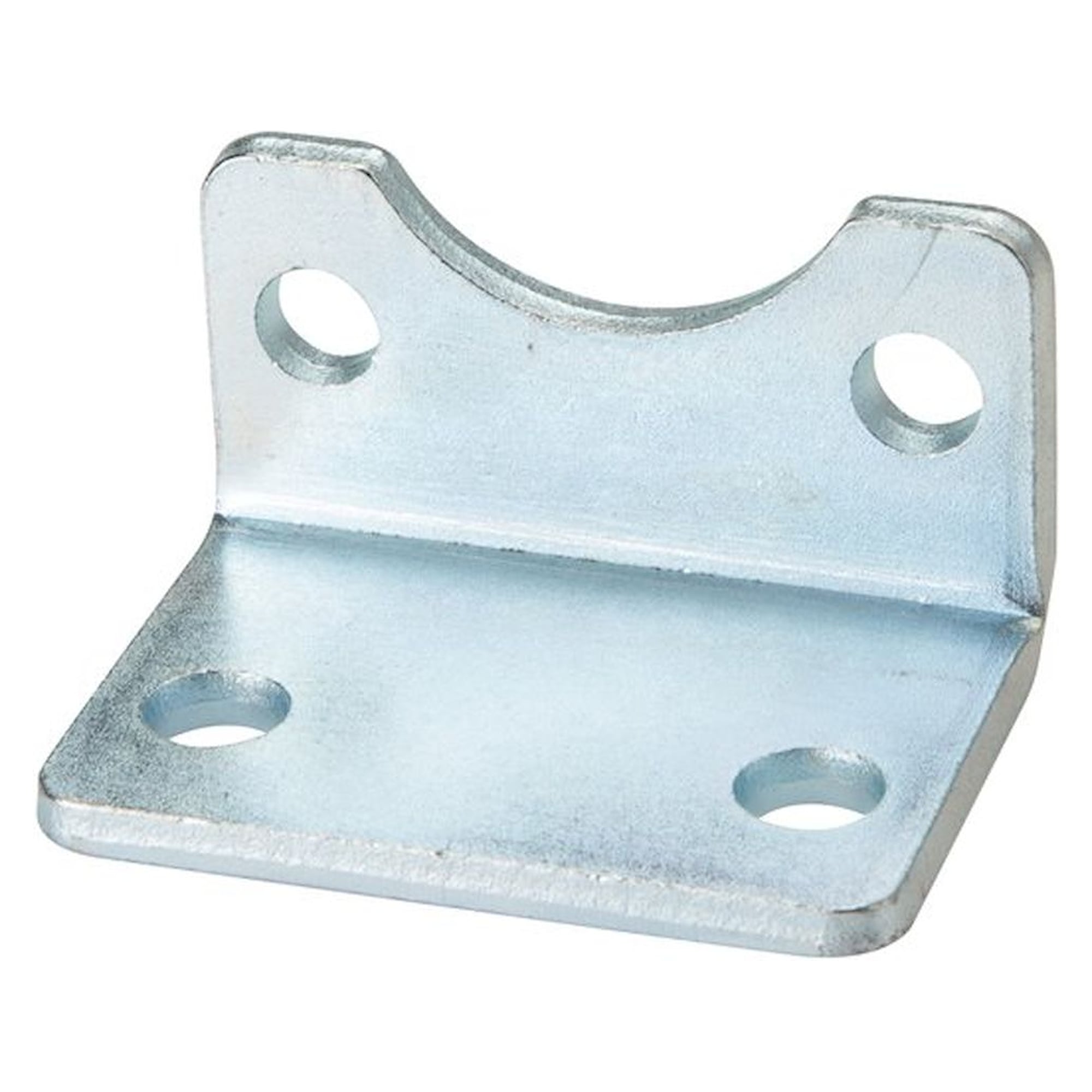

Foot bracket ISO 15552, for piston diameter 200 mm, zinc-plated steel
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€91.02
Item
FL-069711
Manufacturer no.
TA 200
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TA 200
EAN4050571688653
Customs tariff number73269098
ConditionNew
Artikel
FL-069711
Frequently Bought Together
-
This Item:
€91.02
-
Foot bracket ISO 15552, for piston diameter 40 mm, stainless steel 1.4401
€58.12
-
Foot bracket ISO 15552, for piston diameter 40 mm, zinc-plated steel
€5.16
Total price
The foot bracket holds the cylinder and carries its forces into the machine frame. This version is listed with 417 mm for dimension L5, 220 mm for dimension M and 100 mm for dimension HH. Its rating is a piston diameter of 200 mm.
Benefits
- Designed for cylinders with a 200 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material zinc-plated steel for size 200 mm.
- Dimension HH comes to 100 mm for size 200 mm.
- Dimension AA comes to 135 mm for size 200 mm.
Technical data
| Material | zinc-plated steel |
|---|---|
| For piston diameter [mm] | 200 |
| Dimension AA [mm] | 135 |
| Dimension D [mm] | 24 |
| Dimension FA [mm] | 135 |
| Dimension G [mm] | 12 |
| Dimension HH [mm] | 100 |
| Dimension L3 [mm] | 320 |
| Dimension L5 [mm] | 417 |
| Dimension M [mm] | 220 |
| Dimension N [mm] | 175.0 |
| Dimension Q [mm] | 30 |
| Scope of delivery | 1 bracket incl. 2 fixing screws |
Applications
On feed and infeed units the foot bracket carries the cylinder of size 200 mm.
Standards and conformity
Made to ISO 15552 and matched to a piston diameter of 200 mm.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TA 200 |
| Manufacturer | Fluidics equipment |
| EAN | 4050571688653 |
| Weight | 3.900000 |
| Zolltarifnummer | 73269098 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
