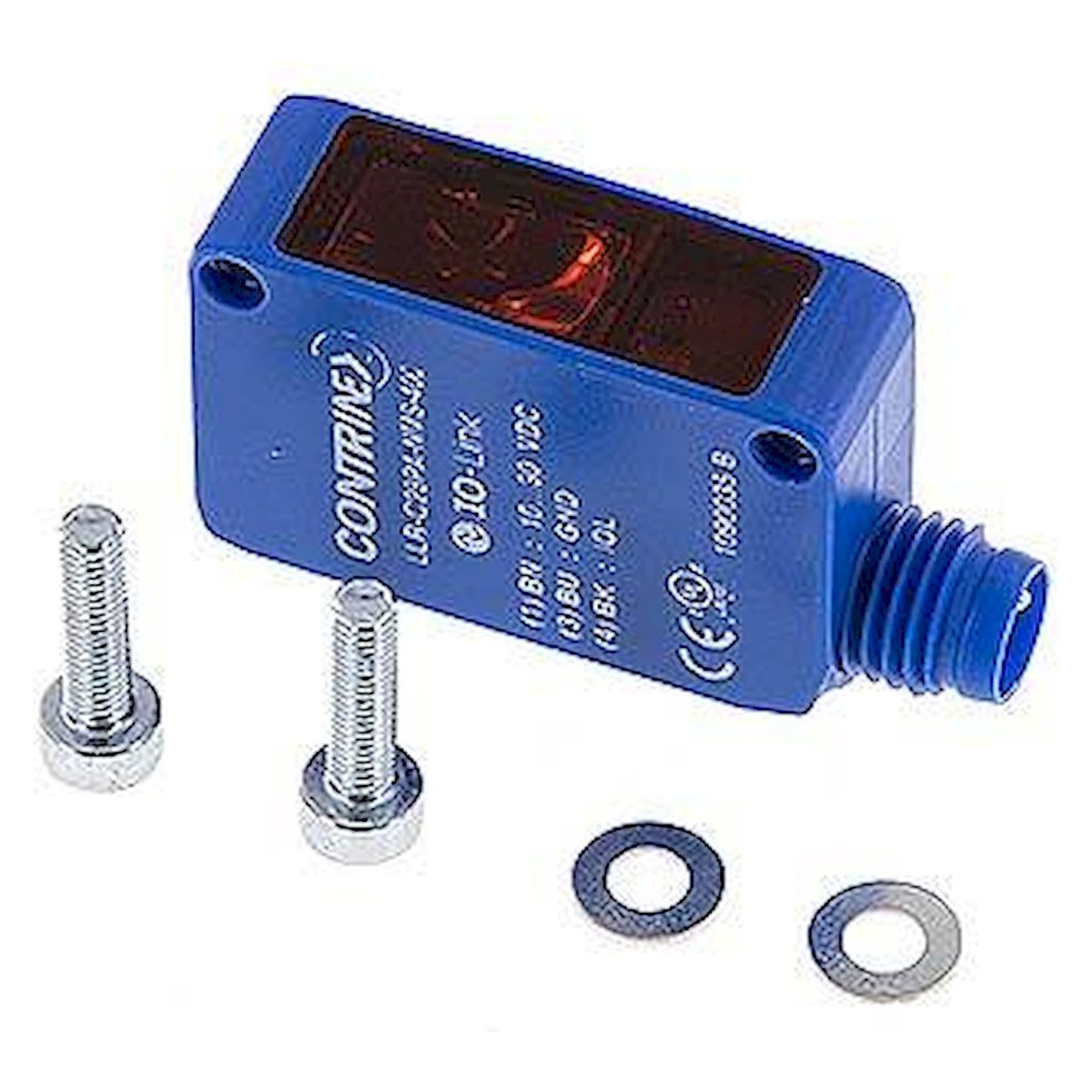

Photoelectric sensor, operating range 0 - 25000 mm, an M 8 connector with 3 pins
The photoelectric sensor detects objects in the light path without contact and reports them to the controller. The underlying rating is the operating range 0 - 25000 mm. The dimensions come to type through-beam sensor, emitter, receiver ordered separately, operating range 0 - 25000 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Once installed, the photoelectric sensor detects objects in the light path without contact and reports them to the controller. The data also state the detection range 0 - 30000 mm. Decisive for the selection is the operating range 0 - 25000 mm.
Benefits
- Operating range 0 - 25000 mm with a detection range of 0 - 30000 mm.
- Type through-beam sensor, emitter, receiver ordered separately with the connection an M 8 connector with 3 pins to DIN EN 61076-2-104.
- Sensitivity set by IO-Link.
- Function of pin 4 IO-Link.
- Protection class IP 67 as per the data sheet.
Applications
Typical use is anywhere the photoelectric sensor has to detect objects in the light path without contact.
Technical data
| Type | through-beam sensor, emitter, receiver ordered separately |
|---|---|
| Connection | an M 8 connector with 3 pins to DIN EN 61076-2-104 |
| Function of pin 4 | IO-Link |
| Detection range [mm] | 0 - 30000 |
| Operating range [mm] | 0 - 25000 |
| Sensitivity setting | IO-Link |
| Temperature range [°C] | -25 to +65 |
| Protection class | IP 67 |
| Weight | 0.025 kg |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | SON E 30000S-M8 |
| EAN | 4050571894658 |
| Zolltarifnummer | 85365019 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | DIN EN 61076-2-104 |
