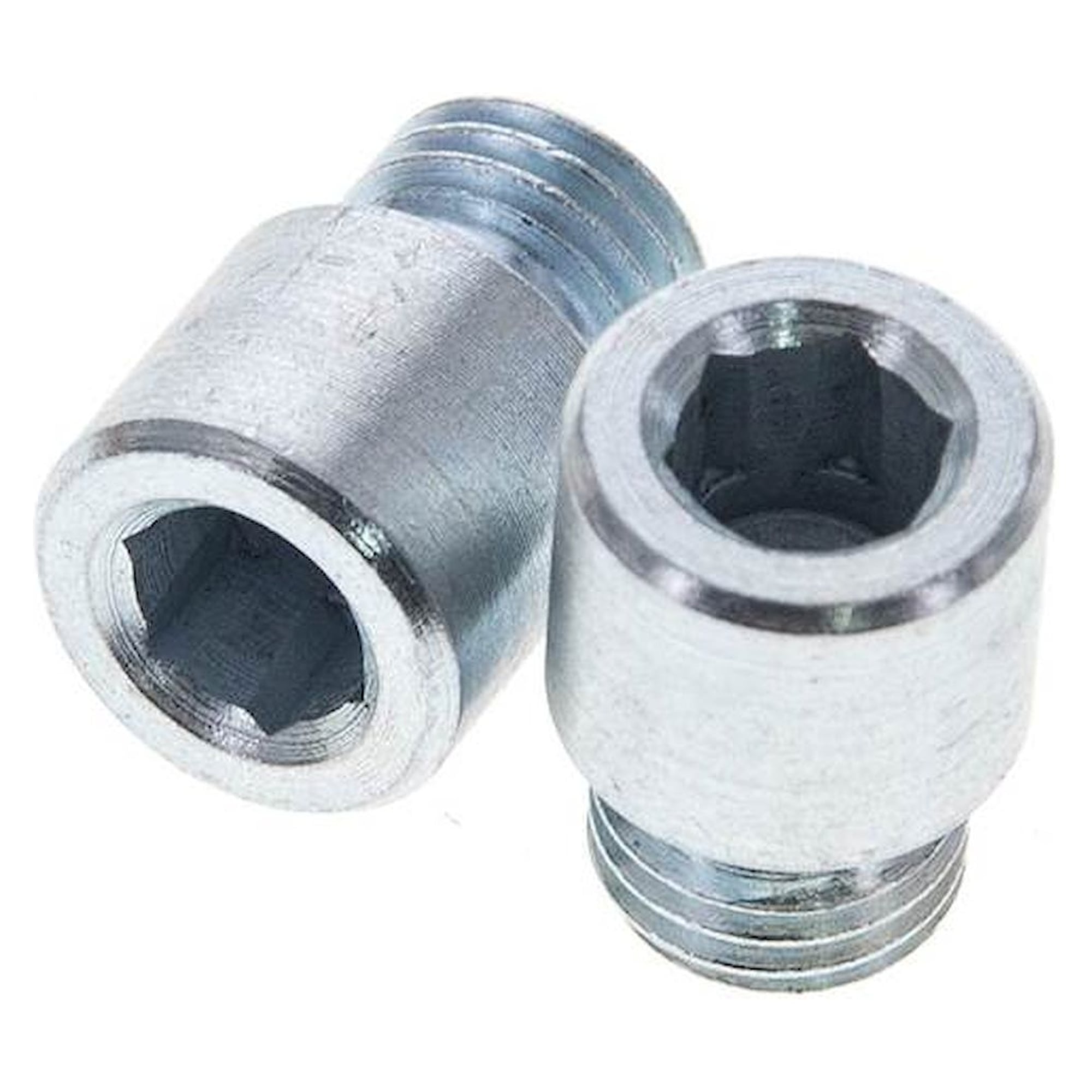

Threaded bolts f. Round cylinders, Ø 32 mm (2 pieces)
Datasheet (PDF)
Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
In service the threaded pin takes the swivel mounting on the round cylinder. The decisive figure is a piston diameter of 32 mm. Dimensions 125 x 51 x 10 mm, made of zinc-plated steel.

Threaded pin for round cylinders, screw-in thread M 8x1, for piston diameter 32 mm

FLUIDICS EQUIPMENT Original product
Net price (excl. VAT)
€6.25
Item FL-036504
Manufacturer no. RG 32
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.RG 32
EAN4050571577636
Customs tariff number73269094
ConditionNew
Add to Wish List Add to Compare
Artikel
FL-036504
Frequently Bought Together
Total price

This threaded pin takes the swivel mounting on the round cylinder. The data sheet gives a piston diameter of 32 mm. The stated material is zinc-plated steel.

Benefits

  • Matched to cylinders with a 32 mm piston diameter.
  • Material zinc-plated steel for size 32 mm.
  • Screw-in thread M 8x1 fits the cylinder cover.
  • Dimension L comes to 125 mm for size 32 mm.
  • Dimension H comes to 51 mm for size 32 mm.
  • Dimension D1 comes to 10 mm for size 32 mm.

Technical data

For piston diameter [mm]32
Screw-in threadM 8x1
Dimension D1 [mm]10
Dimension H [mm]51
Dimension L [mm]125
Dimension L1 [mm]47
Width across flats SW1 [mm]5
Materialzinc-plated steel
Scope of delivery2 threaded pins

Applications

In machine and plant construction the threaded pin holds a cylinder with a 32 mm piston diameter in place.

More Information
Weight 0.014000
Manufacturer Fluidics equipment
Hersteller-Nr RG 32
EAN 4050571577636
Zolltarifnummer 73269094
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikelzustand New
