In service the swivel mounting holds the cylinder and carries its forces into the machine frame. The decisive figure is a piston diameter of 63 mm. Dimensions 50 x 88.1 x 40 mm, made of zinc-plated steel.

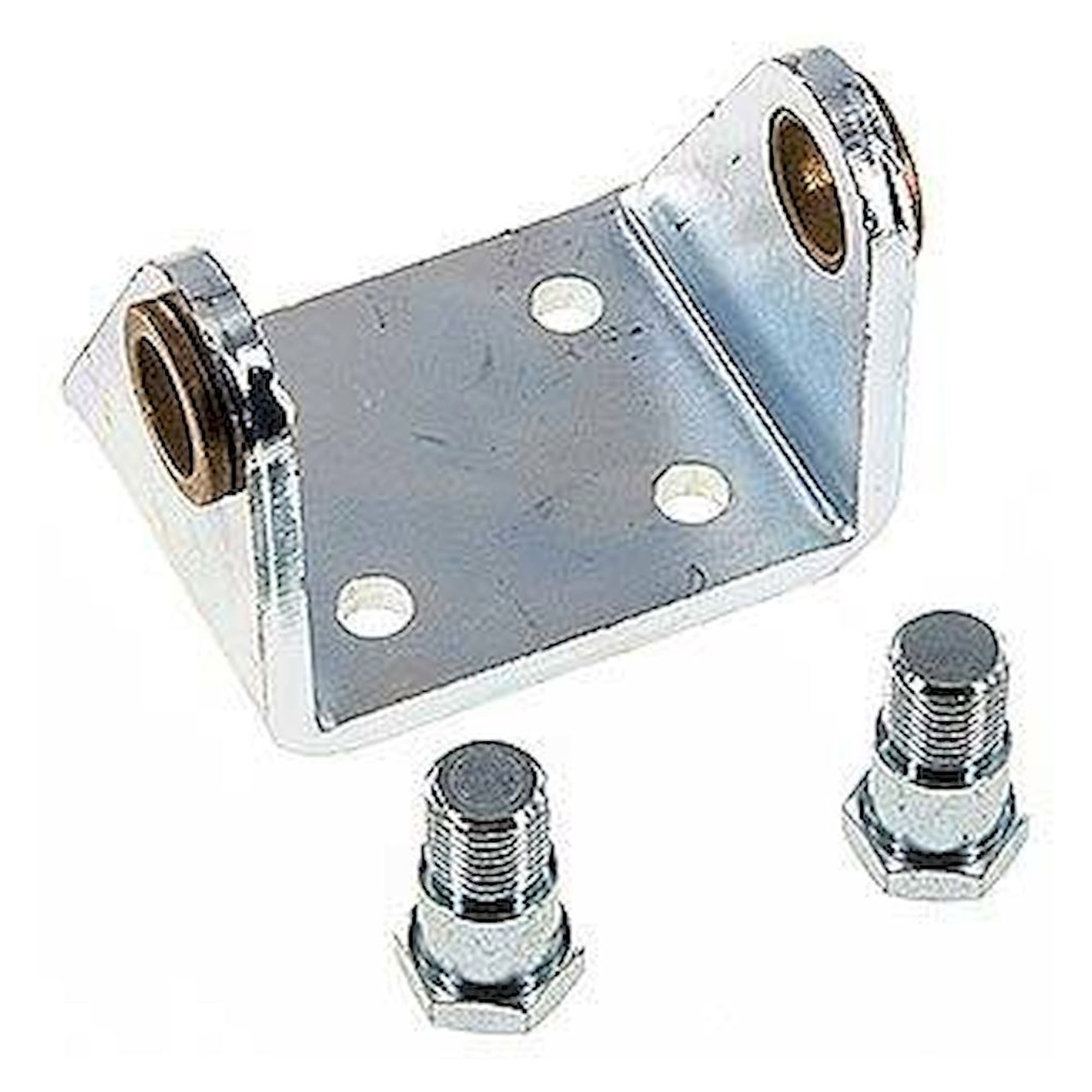

Swivel mounting for round cylinders, for piston diameter 63 mm, zinc-plated steel
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€43.32
Item
FL-038155
Manufacturer no.
RC 63
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.RC 63
EAN4050571571467
Customs tariff number73269098
ConditionNew
Artikel
FL-038155
Frequently Bought Together
-
This Item:
€43.32
-
Round Cylinder with Magnetic Piston, Bore 32 mm, Stroke 250 mm - Airtec DSWPM 32/250
€179.61
-
Foot Bracket Round Cylinder Ø 32 mm, Zinc-Plated Steel - Airtec RA 32
€8.55
Total price
This swivel mounting holds the cylinder and carries its forces into the machine frame. The data sheet gives a piston diameter of 63 mm. The stated material is zinc-plated steel.
Benefits
- Matched to cylinders with a 63 mm piston diameter.
- Material zinc-plated steel for size 63 mm.
- Dimension A1 comes to 50 mm for size 63 mm.
- Dimension B2 comes to 88.1 mm for size 63 mm.
- Dimension N2 comes to 65 mm for size 63 mm.
Technical data
| For piston diameter [mm] | 63 |
|---|---|
| Dimension D1 [mm] | 16 |
| Dimension D2 [mm] | 23 |
| Dimension A [mm] | 9 |
| Dimension A1 [mm] | 50 |
| Dimension G [mm] | 40 |
| Dimension N1 [mm] | 35 |
| Dimension N2 [mm] | 65 |
| Dimension R1 [mm] | 16 |
| Dimension S [mm] | 6 |
| Dimension B1 [mm] | 42 |
| Dimension B2 [mm] | 88.1 |
| Dimension B3 [mm] | 70.1 |
| Material | zinc-plated steel |
Applications
In machine and plant construction the swivel mounting holds a cylinder with a 63 mm piston diameter in place.
| Weight | 0.550000 |
|---|---|
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | RC 63 |
| EAN | 4050571571467 |
| Zolltarifnummer | 73269098 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
