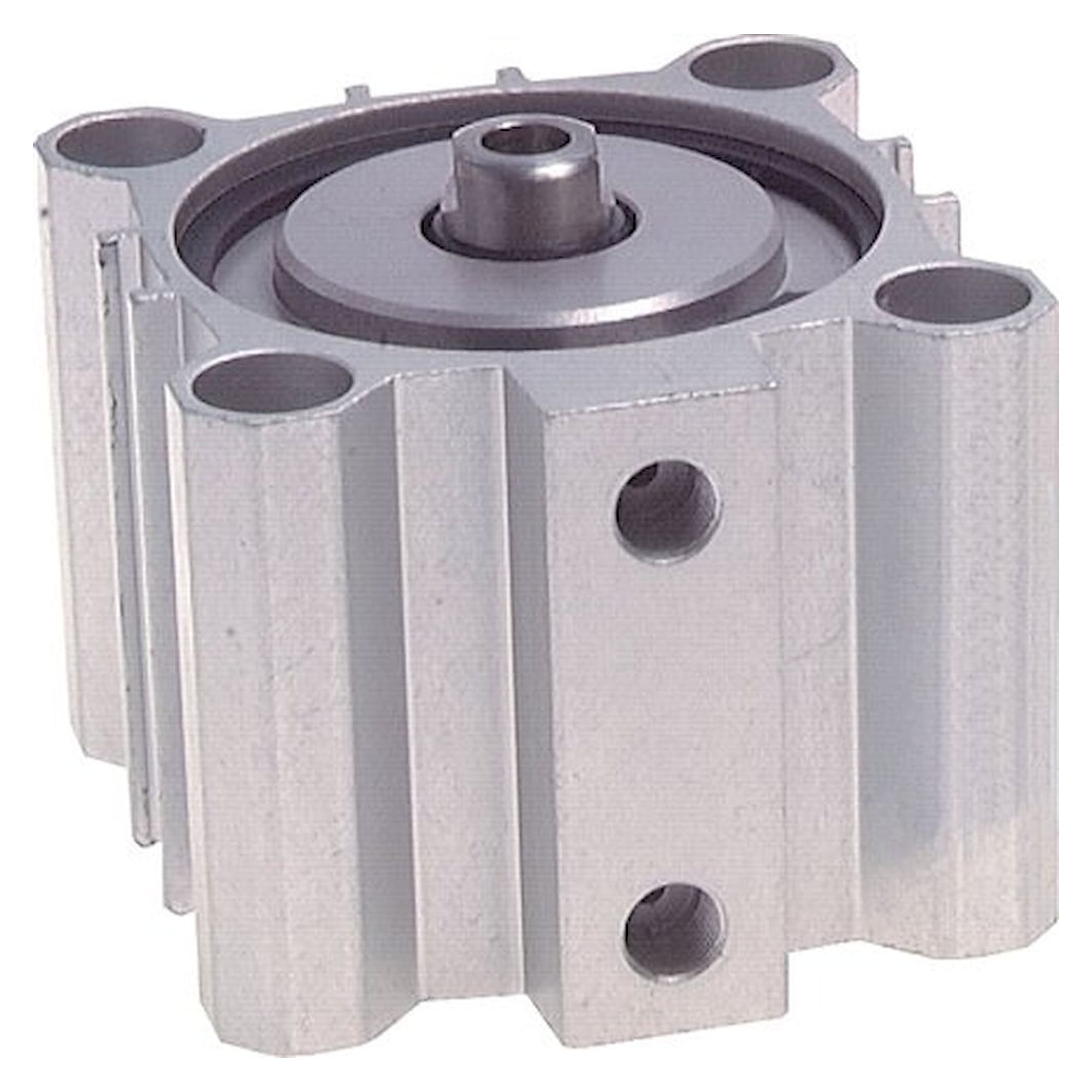

Single-acting short-stroke cylinder, bore 80 mm, stroke 10 mm, with magnetic piston, G 1/4 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

Single-acting short-stroke cylinder with 80 mm bore and 10 mm stroke, supplied through a G 1/4 compressed air port. The magnetic piston allows end position sensing with type G cylinder switches. Stainless steel 1.4305 piston rod, operating pressure max. 10 bar.

Net
€196.60
excl. VAT
Item FL-009892
Manufacturer no. NEM 80/10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

This single-acting short-stroke cylinder with 80 mm bore and 10 mm stroke is supplied through a G 1/4 compressed air port. Piston area 50.3 cm², operating pressure up to 10 bar.

Benefits

  • Single-acting with only one G 1/4 compressed air port
  • Stainless steel 1.4305 piston rod with M 10 thread
  • Magnetic piston for type G cylinder switches
  • Temperature range -20 to +80 °C with NBR seals
  • Rated up to 10 bar, G 1/4 port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A105.0 mm
Dimension B100 mm
Dimension D20 mm
Dimension F9.0 mm
Dimension G14.0 mm
Dimension H55.0 mm
Dimension I82 mm
Dimension J14.0 mm
Dimension K82.0 mm
Dimension L46.0 mm
Dimension N77.0 mm
Dimension Q9.0 mm
Dimension S100.0 mm
Dimension T15 mm
Dimension V17 mm
Dimension W8.0 mm
Dimension X65 mm
Dimension Y28 mm
Dimension Z50 mm
Dimension AA18.0 mm
Dimension AB14 mm

Applications

Typical tasks are clamping and positioning workpieces, stoppers on conveyor lines or short pressing operations with 10 mm stroke.

Technical data

Typeshort-stroke cylinder
Functionsingle-acting
Bore80 mm
Stroke10 mm
Versionwith magnetic piston
Piston rod thread C1M 10
Compressed air port PG 1/4
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)50.3 cm²
Customs tariff number84799070
Weight1 kg
ManufacturerFluidics equipment
Hersteller-NrNEM 80/10
EAN4050571525842
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungmit Magnetkolben
BauformKurzhubzylinder
Piston Ø [mm]80
Stroke [mm]10
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionG1/4
Temperaturbereich-20-80 °C
Temperature (max.)80
