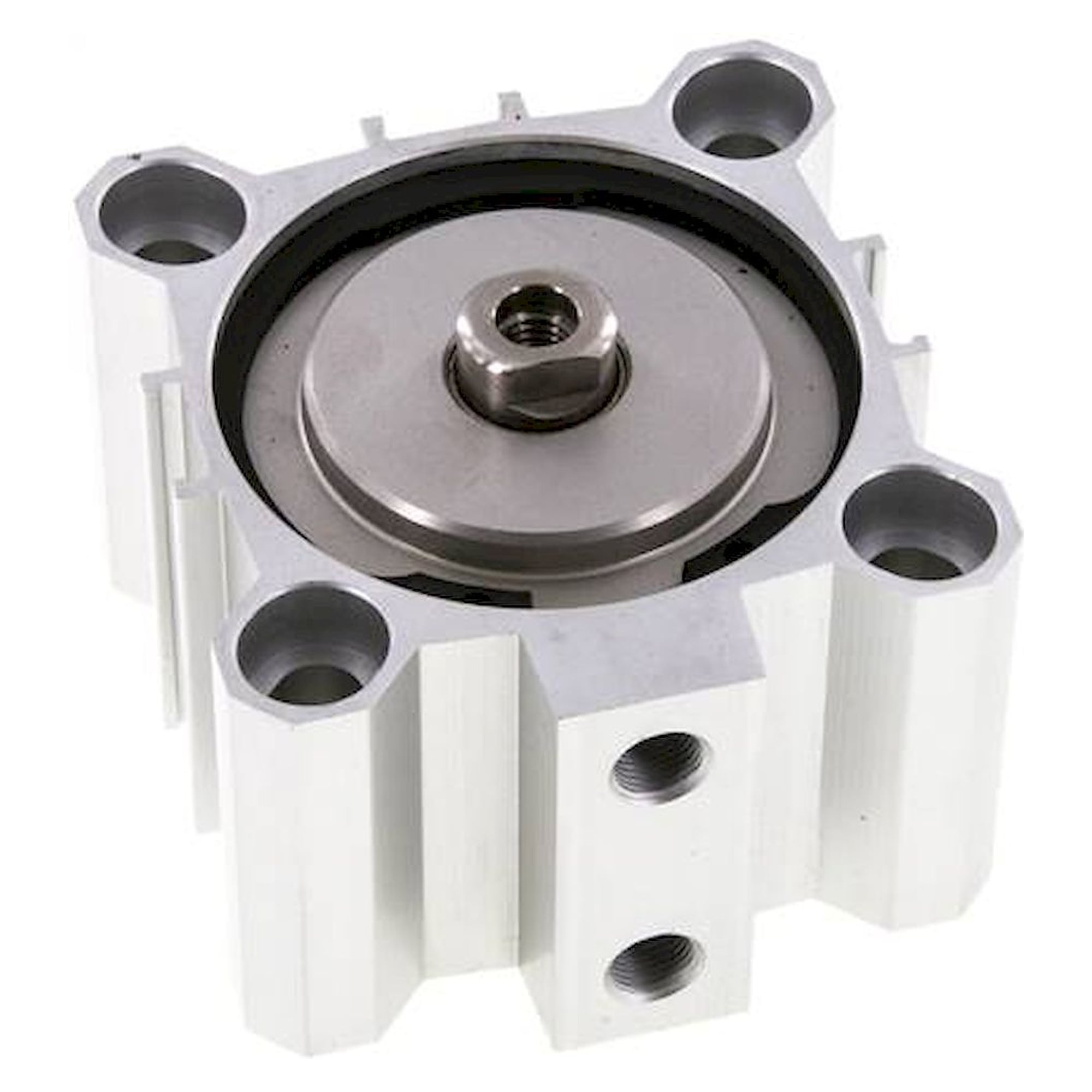

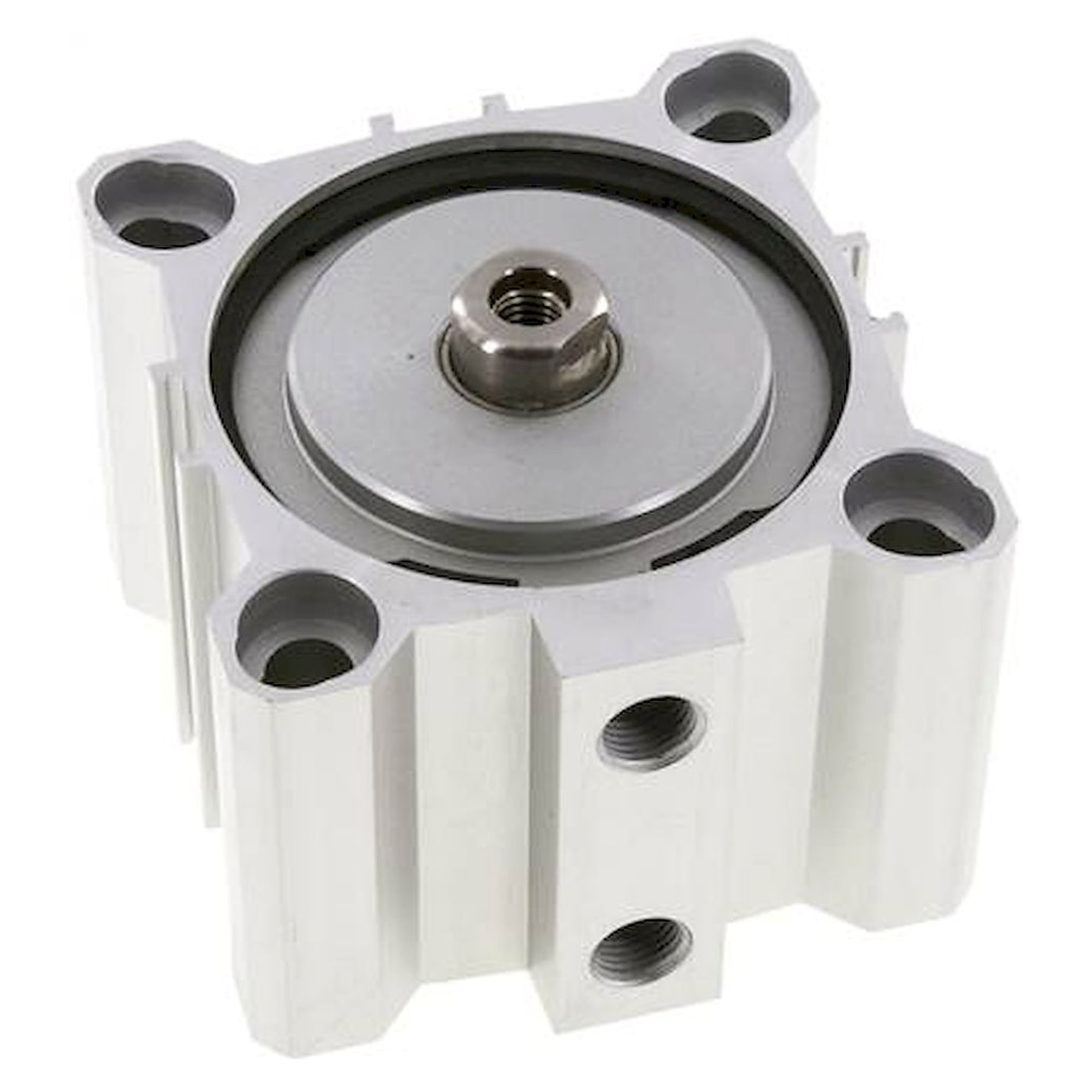

Single-acting short-stroke cylinder, bore 63 mm, stroke 10 mm, with magnetic piston, G 1/8 - Fluidics equipment
For short working travel of 10 mm: single-acting short-stroke cylinder with 63 mm bore and G 1/8 port. A magnetic piston is fitted, matching cylinder switches are type G. Stainless steel 1.4305 piston rod, operating pressure max. 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Short travel, one port: this single-acting short-stroke cylinder moves a 63 mm piston over 10 mm. Compressed air enters through G 1/8, permitted pressure for the 63 mm bore is up to 10 bar.
Key benefits
- One G 1/8 port is enough, the cylinder is single-acting
- Stainless steel 1.4305 piston rod with M 8 thread
- Magnetic piston for type G cylinder switches
- NBR seals for -20 to +80 °C
- Rated up to 10 bar, G 1/8 port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 86.0 mm |
|---|---|
| Dimension B | 80 mm |
| Dimension D | 16 mm |
| Dimension F | 9.0 mm |
| Dimension G | 14.0 mm |
| Dimension H | 46.0 mm |
| Dimension I | 62 mm |
| Dimension J | 11.0 mm |
| Dimension K | 62.0 mm |
| Dimension L | 42.0 mm |
| Dimension N | 60.0 mm |
| Dimension Q | 8.8 mm |
| Dimension S | 80.0 mm |
| Dimension T | 14 mm |
| Dimension V | 13 mm |
| Dimension W | 6.5 mm |
| Dimension X | 50 mm |
| Dimension Y | 22 mm |
| Dimension Z | 30 mm |
| Dimension AA | 15.0 mm |
| Dimension AB | 12 mm |
Applications
The short stroke of 10 mm fits clamping, holding and stopping tasks at assembly stations, conveyors and in test fixtures.
Technical data
| Type | short-stroke cylinder |
|---|---|
| Function | single-acting |
| Bore | 63 mm |
| Stroke | 10 mm |
| Version | with magnetic piston |
| Piston rod thread C1 | M 8 |
| Compressed air port P | G 1/8 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 31.2 cm² |
| Weight | 600 g |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NEM 63/10 |
| EAN | 4050571525828 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | mit Magnetkolben |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 63 |
| Stroke [mm] | 10 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
