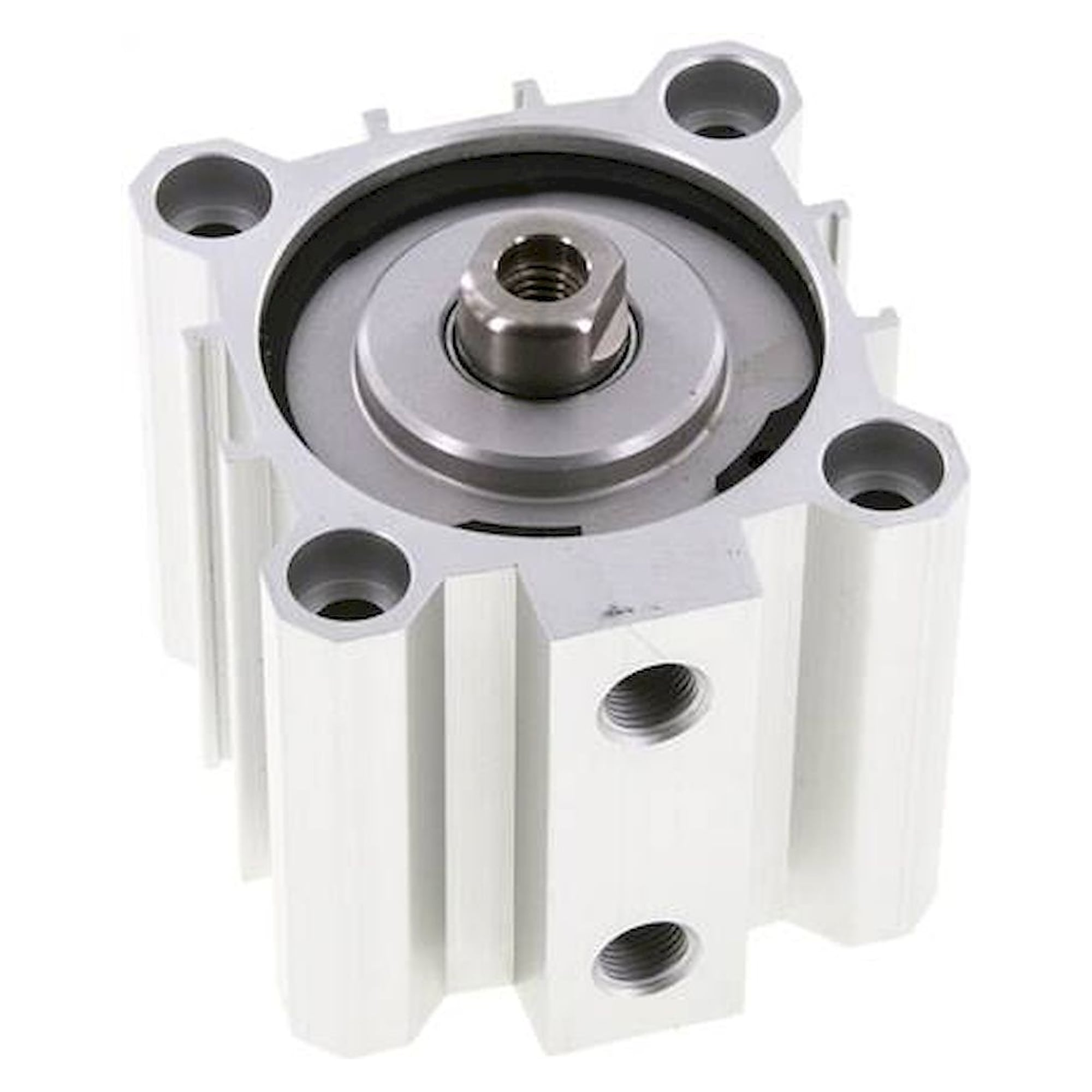

Single-acting short-stroke cylinder, bore 50 mm, stroke 25 mm, without magnetic piston, G 1/8 - Fluidics equipment
Single-acting short-stroke cylinder with 50 mm bore and 25 mm stroke, supplied through a G 1/8 compressed air port. The version without magnetic piston is sufficient where no position sensing is needed. Stainless steel 1.4305 piston rod, operating pressure max. 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This single-acting short-stroke cylinder with 50 mm bore and 25 mm stroke is supplied through a G 1/8 compressed air port. Piston area 19.6 cm², operating pressure up to 10 bar.
Why this cylinder
- One G 1/8 port is enough, the cylinder is single-acting
- Stainless steel 1.4305 piston rod with M 8 thread
- Temperature range -20 to +80 °C with NBR seals
- Rated up to 10 bar, G 1/8 port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 70.0 mm |
|---|---|
| Dimension B | 65 mm |
| Dimension D | 16 mm |
| Dimension F | 6.8 mm |
| Dimension G | 11.0 mm |
| Dimension H | 37.5 mm |
| Dimension I | 50 mm |
| Dimension J | 11.5 mm |
| Dimension K | 50.0 mm |
| Dimension L | 34.5 mm |
| Dimension N | 50.0 mm |
| Dimension Q | 6.8 mm |
| Dimension S | 65.0 mm |
| Dimension T | 12 mm |
| Dimension V | 13 mm |
| Dimension W | 7.5 mm |
| Dimension X | 42 mm |
| Dimension Y | 22 mm |
| Dimension Z | 30 mm |
| Dimension AA | 13.5 mm |
| Dimension AB | 12 mm |
Applications
Short-stroke cylinders of this size suit clamping, stopping, ejecting and embossing in fixtures where only 25 mm of travel is needed and space is tight.
Technical data
| Type | short-stroke cylinder |
|---|---|
| Function | single-acting |
| Bore | 50 mm |
| Stroke | 25 mm |
| Version | without magnetic piston |
| Piston rod thread C1 | M 8 |
| Compressed air port P | G 1/8 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 19.6 cm² |
| Weight | 480 g |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NE 50/25 |
| EAN | 4050571525484 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | ohne Magnetkolben |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 50 |
| Stroke [mm] | 25 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
