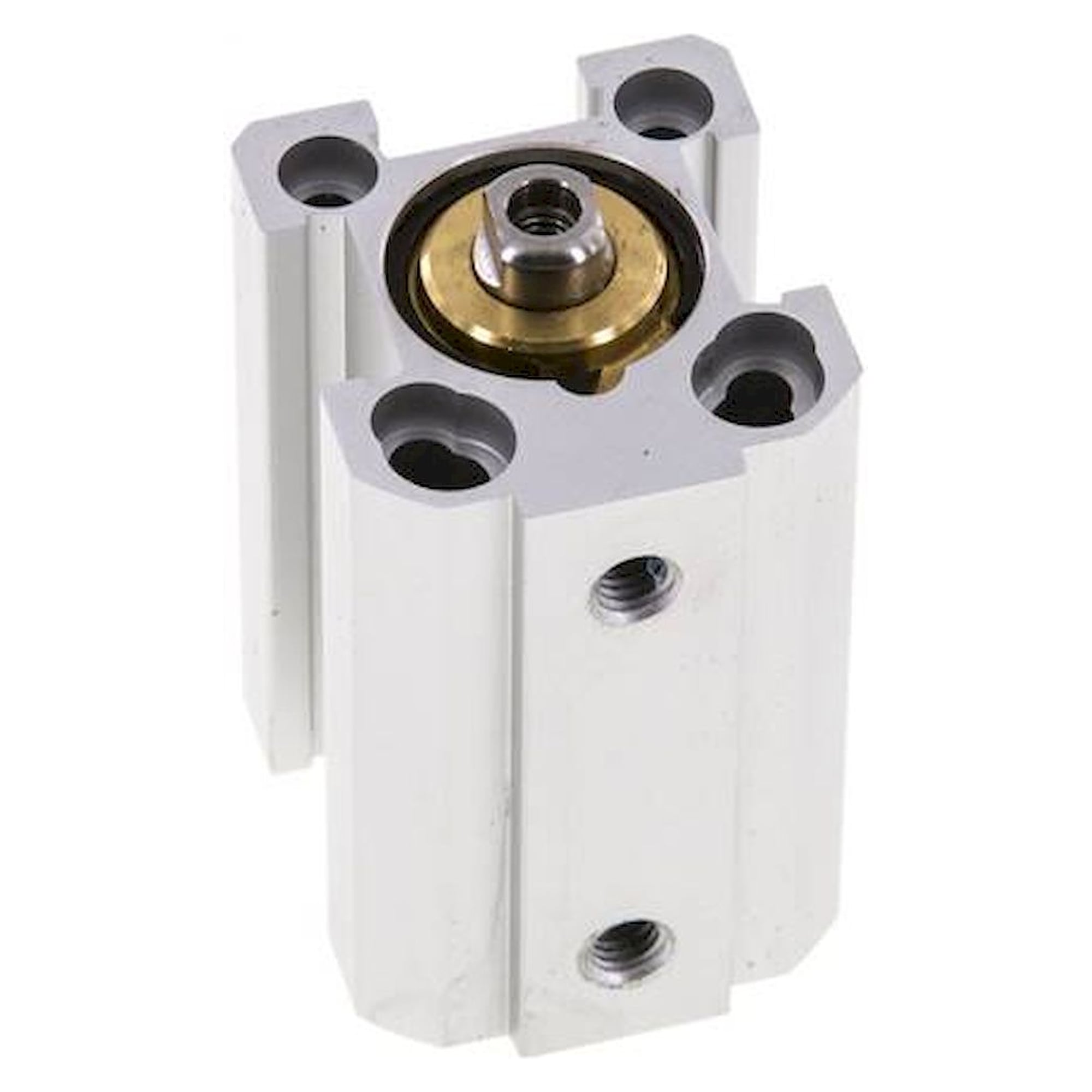

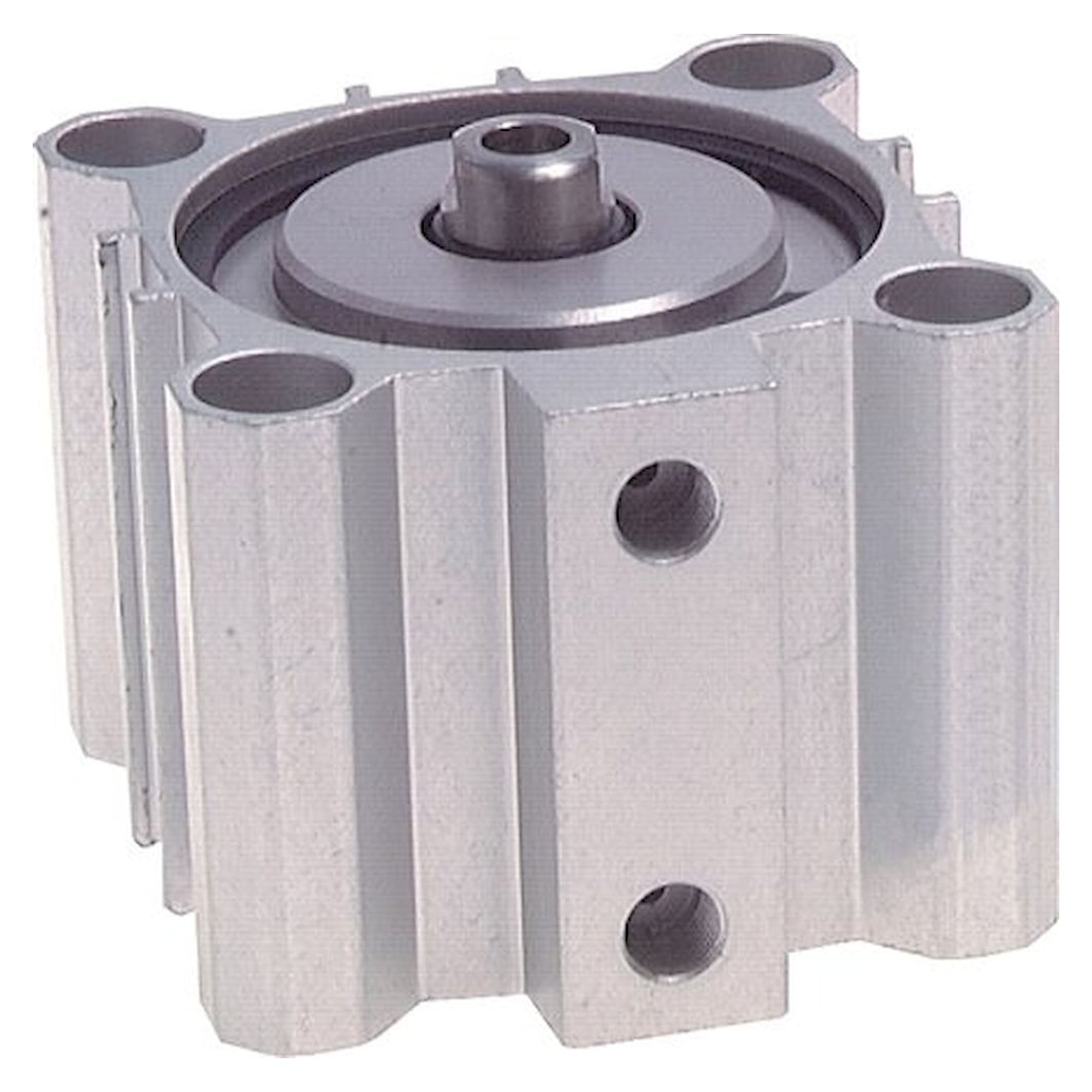

Single-acting short-stroke cylinder, bore 16 mm, stroke 20 mm, without magnetic piston, M 5 - Fluidics equipment

Fluidics equipment ✓ Original product Brand new

For short working travel of 20 mm: single-acting short-stroke cylinder with 16 mm bore and M 5 port. Without magnetic piston, suited to applications without end position sensing. Up to 10 bar operating pressure, anodised aluminium cylinder tube, 1.4305 piston rod.

Net
€47.59
excl. VAT
Item FL-256004
Manufacturer no. NE 16/20
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

This single-acting short-stroke cylinder with 16 mm bore and 20 mm stroke is supplied through a M 5 compressed air port. Piston area 2.0 cm², operating pressure up to 10 bar.

Why this cylinder

  • One M 5 port is enough, the cylinder is single-acting
  • Stainless steel 1.4305 piston rod with M 4 thread
  • NBR seals for -20 to +80 °C
  • Operating pressure up to 10 bar, M 5 compressed air port

Dimensions

The dimension letters refer to the dimensional drawing of the series.

Dimension A34.0 mm
Dimension B30 mm
Dimension D8 mm
Dimension F4.7 mm
Dimension G7.5 mm
Dimension H19.0 mm
Dimension I18 mm
Dimension J8.0 mm
Dimension L27.0 mm
Dimension M12.0 mm
Dimension N20.0 mm
Dimension O10.0 mm
Dimension Q4.6 mm
Dimension R3.5 mm
Dimension S32.0 mm
Dimension T8 mm
Dimension V6 mm
Dimension W4.5 mm

Applications

The short stroke of 20 mm fits clamping, holding and stopping tasks at assembly stations, conveyors and in test fixtures.

Technical data

Typeshort-stroke cylinder
Functionsingle-acting
Bore16 mm
Stroke20 mm
Versionwithout magnetic piston
Piston rod thread C1M 4
Compressed air port PM 5
Operating pressuremax. 10 bar
Temperature range-20 to +80 °C
Head and base plateanodised aluminium / brass
Cylinder tubeanodised aluminium
Piston rod1.4305
SealNBR
Cylinder switch typeG
Piston area (calculated)2.0 cm²
Weight95 g
Customs tariff number84799070
ManufacturerFluidics equipment
Hersteller-NrNE 16/20
EAN4050571525163
Zolltarifnummer84799070
GPSR HerstellerdatenA1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Ausführungohne Magnetkolben
BauformKurzhubzylinder
Piston Ø [mm]16
Stroke [mm]20
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Betriebsdruck max [bar]10
Pneumatic connectionM5
Temperaturbereich-20-80 °C
Temperature (max.)80

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
