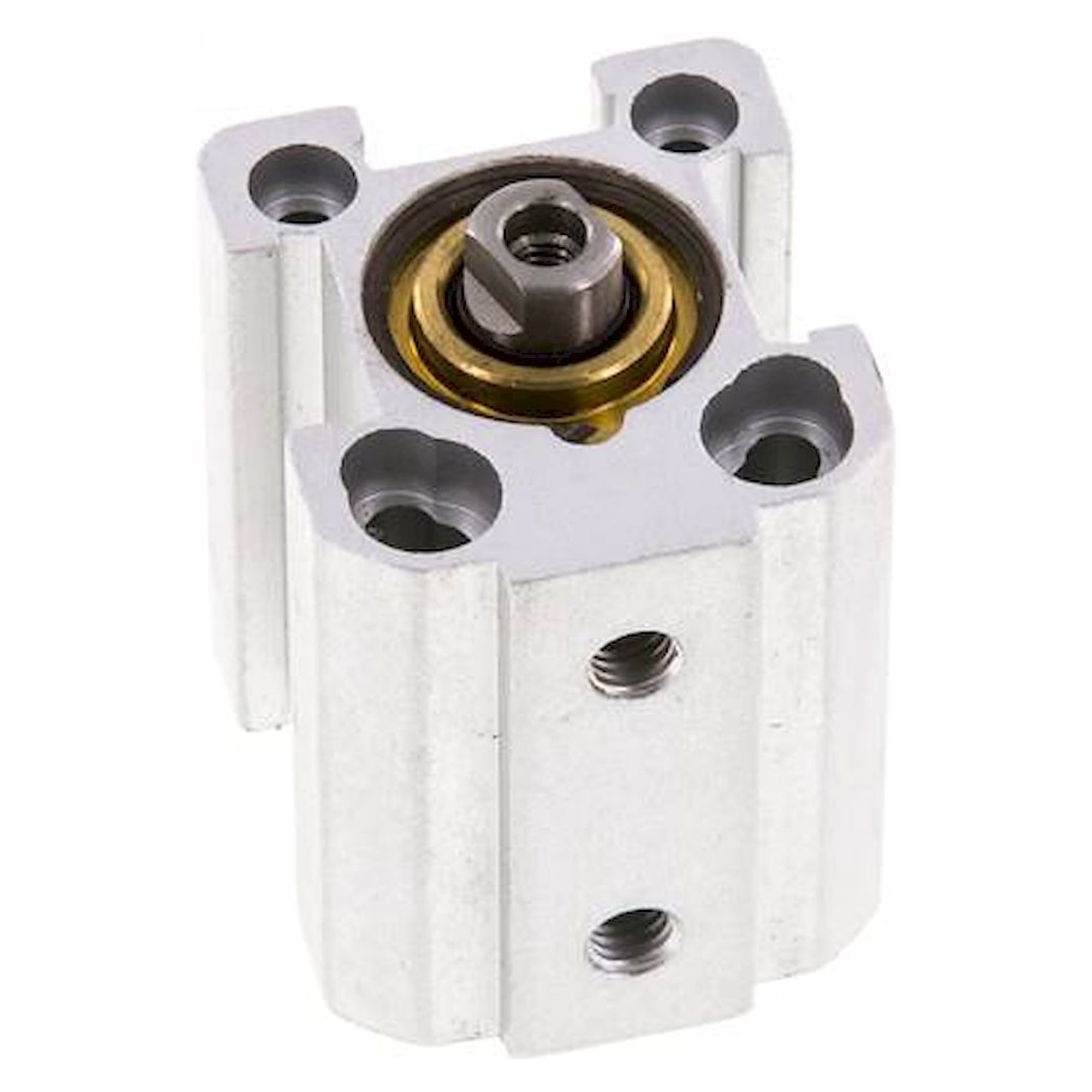

Double-acting short-stroke cylinder, bore 80 mm, stroke 20 mm, with magnetic piston, G 1/4 - Fluidics equipment
With only 20 mm stroke this double-acting short-stroke cylinder with 80 mm bore delivers a calculated 3.0 kN push force at 6 bar. The magnetic piston allows end position sensing with type G cylinder switches. Up to 10 bar operating pressure, anodised aluminium cylinder tube, 1.4305 piston rod.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The double-acting short-stroke cylinder with 80 mm piston delivers a calculated 3.0 kN push force at 6 bar. The 20 mm stroke keeps the overall length short, the port is G 1/4.
Benefits
- Pneumatic force in both directions, 3.0 kN push force at 6 bar (calculated)
- Piston rod thread M 10, rod made of 1.4305
- Position sensing via magnetic piston and type G cylinder switches
- NBR seals for -20 to +80 °C
- Rated up to 10 bar, G 1/4 port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 105.0 mm |
|---|---|
| Dimension B | 100 mm |
| Dimension D | 20 mm |
| Dimension E | 44.0 mm |
| Dimension F | 9.0 mm |
| Dimension G | 14.0 mm |
| Dimension H | 55.0 mm |
| Dimension I | 82 mm |
| Dimension J | 14.0 mm |
| Dimension K | 82.0 mm |
| Dimension L | 46.0 mm |
| Dimension N | 77.0 mm |
| Dimension Q | 9.0 mm |
| Dimension S | 100.0 mm |
| Dimension T | 15 mm |
| Dimension U | 10.0 mm |
| Dimension V | 17 mm |
| Dimension W | 8.0 mm |
| Dimension X | 65 mm |
| Dimension Y | 28 mm |
| Dimension Z | 50 mm |
| Dimension AA | 18.0 mm |
| Dimension AB | 14 mm |
Applications
Short-stroke cylinders of this size suit clamping, stopping, ejecting and embossing in fixtures where only 20 mm of travel is needed and space is tight. The force figure for the 80 mm bore is theoretical, friction losses come on top.
Technical data
| Type | short-stroke cylinder |
|---|---|
| Function | double-acting |
| Bore | 80 mm |
| Stroke | 20 mm |
| Version | with magnetic piston |
| Piston rod thread C1 | M 10 |
| Compressed air port P | G 1/4 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 50.3 cm² |
| Push force at 6 bar (calculated) | 3.0 kN |
| Push force at 10 bar (calculated) | 5.0 kN |
| Weight | 1.2 kg |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NDM 80/20 |
| EAN | 4050571524982 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | mit Magnetkolben |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 80 |
| Stroke [mm] | 20 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
