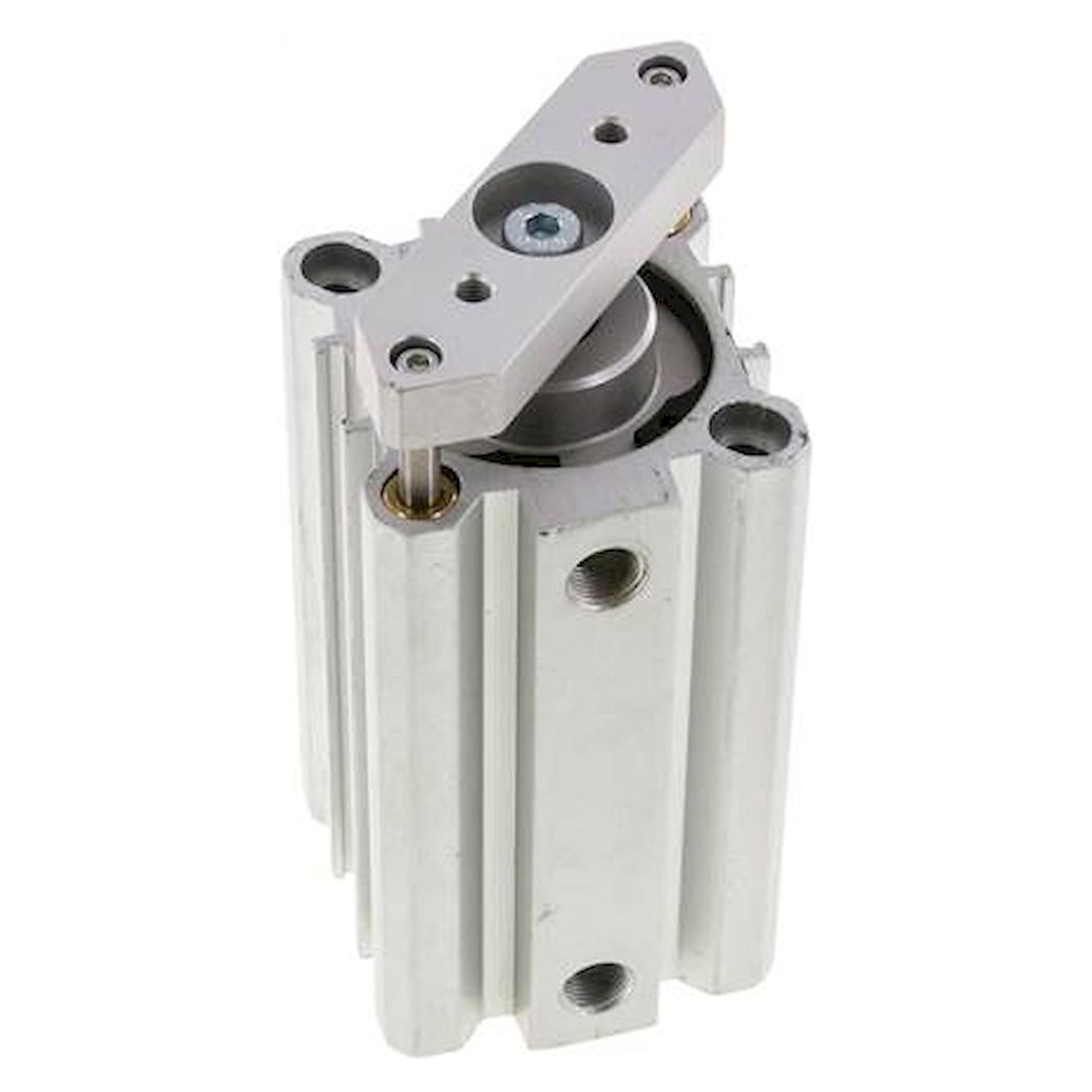

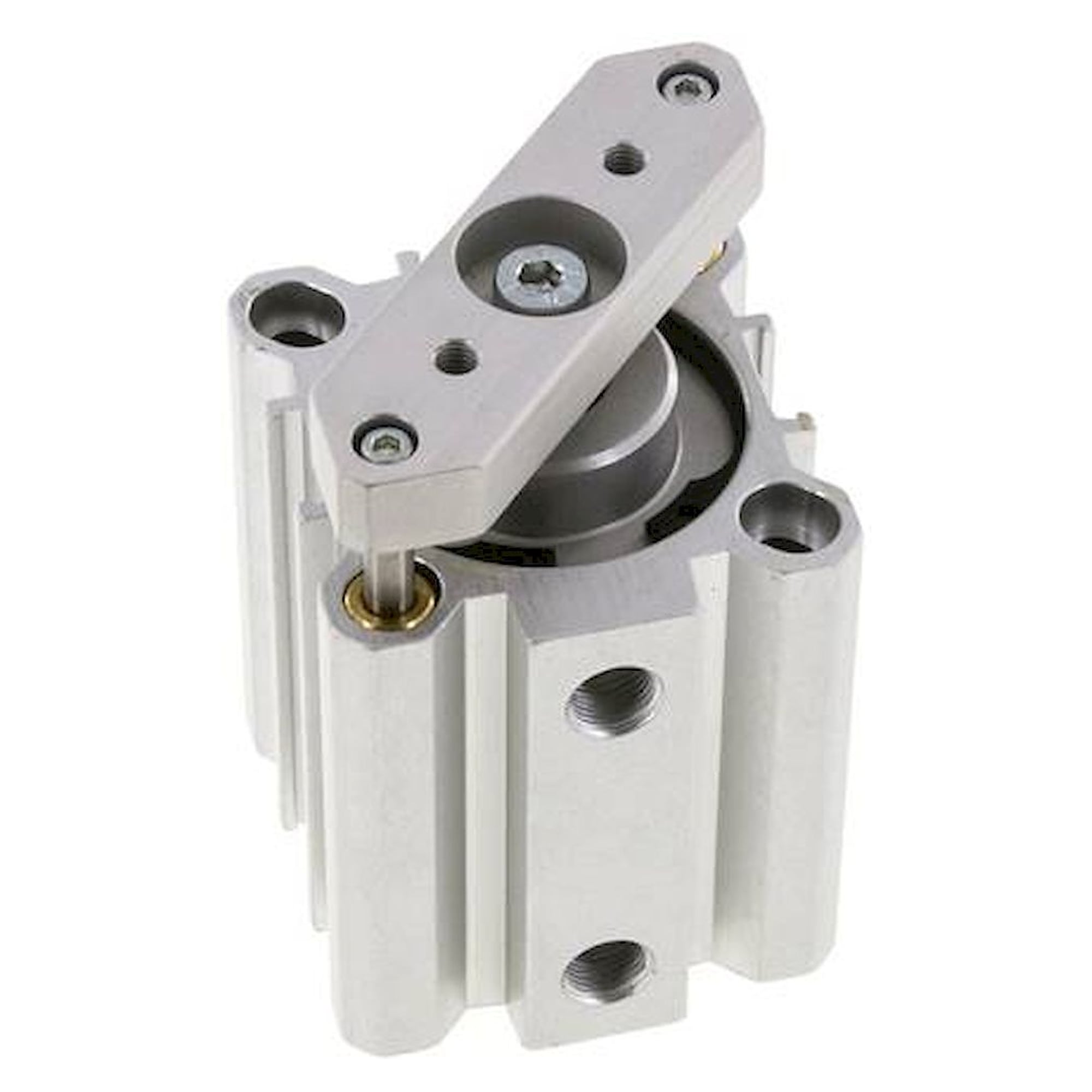

Non-rotating short-stroke cylinder, double-acting, bore 40 mm, stroke 60 mm, magnetic piston, G 1/8 - Fluidics equipment
With only 60 mm stroke this non-rotating short-stroke cylinder with 40 mm bore delivers a calculated 754 N push force at 6 bar. A magnetic piston is fitted, matching cylinder switches are type G. Stainless steel 1.4305 piston rod, operating pressure max. 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With a 40 mm bore and 60 mm stroke this short-stroke cylinder is built for short, powerful movements. The calculated push force is 754 N at 6 bar and 1.3 kN at the maximum of 10 bar.
Why this cylinder
- Pneumatic force in both directions, 754 N push force at 6 bar (calculated)
- Anti-rotation design, mounting via C2 thread M 5
- Magnetic piston for type G cylinder switches
- Temperature range -20 to +80 °C with NBR seals
- Operating pressure up to 10 bar, G 1/8 compressed air port
Dimensions
The dimension letters refer to the dimensional drawing of the series.
| Dimension A | 58.0 mm |
|---|---|
| Dimension B | 55 mm |
| Dimension D | 12 mm |
| Dimension E | 28.0 mm |
| Dimension F | 5.8 mm |
| Dimension G | 9.0 mm |
| Dimension H | 30.5 mm |
| Dimension I | 42 mm |
| Dimension J | 11.0 mm |
| Dimension K | 42 mm |
| Dimension L | 39.5 mm |
| Dimension N | 40.0 mm |
| Dimension Q | 5.7 mm |
| Dimension S | 55.0 mm |
| Dimension T | 12 mm |
| Dimension U | 6.0 mm |
| Dimension V | 10 mm |
| Dimension W | 6.0 mm |
| Dimension X | 33 mm |
| Dimension Y | 17 mm |
| Dimension Z | 20 mm |
| Dimension AA | 12.5 mm |
| Dimension AB | 10 mm |
Applications
Short-stroke cylinders of this size suit clamping, stopping, ejecting and embossing in fixtures where only 60 mm of travel is needed and space is tight. Friction is not included in the calculated 754 N at 6 bar.
Technical data
| Type | short-stroke cylinder, non-rotating |
|---|---|
| Function | double-acting |
| Bore | 40 mm |
| Stroke | 60 mm |
| Version | with magnetic piston |
| Thread C2 | M 5 |
| Compressed air port P | G 1/8 |
| Operating pressure | max. 10 bar |
| Temperature range | -20 to +80 °C |
| Head and base plate | anodised aluminium / brass |
| Cylinder tube | anodised aluminium |
| Piston rod | 1.4305 |
| Seal | NBR |
| Cylinder switch type | G |
| Piston area (calculated) | 12.6 cm² |
| Push force at 6 bar (calculated) | 754 N |
| Push force at 10 bar (calculated) | 1.3 kN |
| Weight | 600 g |
| Customs tariff number | 84799070 |
| Manufacturer | Fluidics equipment |
| Hersteller-Nr | NDM 40/60 A |
| EAN | 4050571524609 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | mit Magnetkolben, verdrehgesichert |
| Bauform | Kurzhubzylinder |
| Piston Ø [mm] | 40 |
| Stroke [mm] | 60 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
